Remove/Install Park Pawl Actuator - AR27.60-P-0956EWM

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 725.0/1

Shown on transmission 725.0

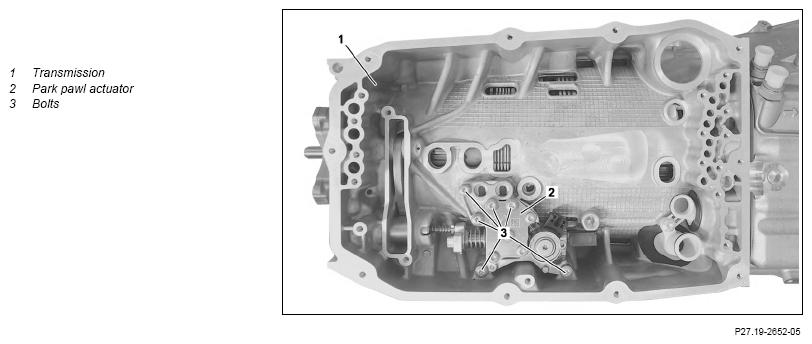

Fig 1: Park Pawl Actuator Components Location - Transmission 725.0

Courtesy of MERCEDES-BENZ USA

	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Remove fully integrated transmission control controller unit.	Transmission 725.0 in model 166, 167, 172, 205, 207, 212, 213, 217, 218, 222, 231, 238, 253, 257, 290, 292 Transmission 725.0 in model 463 as of model year 2019 Transmission 725.1 in model 213, 238, 257	AR27.19-P-0200EWM
		Transmission 725.0/1 in model 223 Cleanliness is essential when working on the transmission (1). Otherwise, even the smallest foreign particle in the hydraulic components of the transmission (1) can lead to malfunctions or a total failure of the transmission (1). For cleaning, use lint-free cleaning cloth. Chamois leathers are the most suitable.	AR27.19-P-0200S
2	Remove screws (3) and remove park pawl actuator (2).	: Replace bolts (3). Screw/bolt, park pawl actuator to transmission housing	*BA27.10-P-1015-04H
3	Install in the reverse order.

AUTOMATIC TRANSMISSION COMPLETE

Number	Designation			Transmission 725.0/1
BA27.10-P-1015-04H	Screw/bolt, park pawl actuator to transmission housing	Stage 1	Nm	4
BA27.10-P-1015-04H	Screw/bolt, park pawl actuator to transmission housing	Stage 2	∠°	90
