Remove/Install Cover Of Electric Machine - AR08.10-P-0004OLG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 205, 253 with transmission 725.0

with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))

Fig 1: Cover Of Electric Machine Components Location - Model 253 With Transmission 725.0 With Code ME05

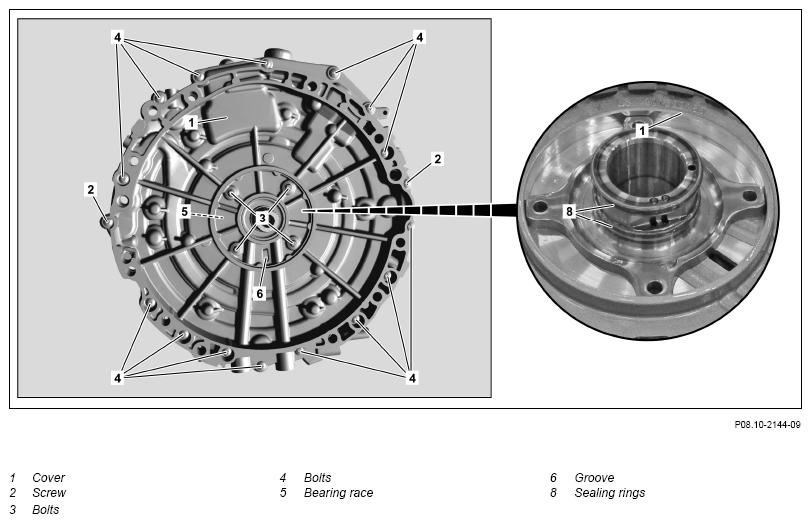

G14470729Courtesy of MERCEDES-BENZ USA

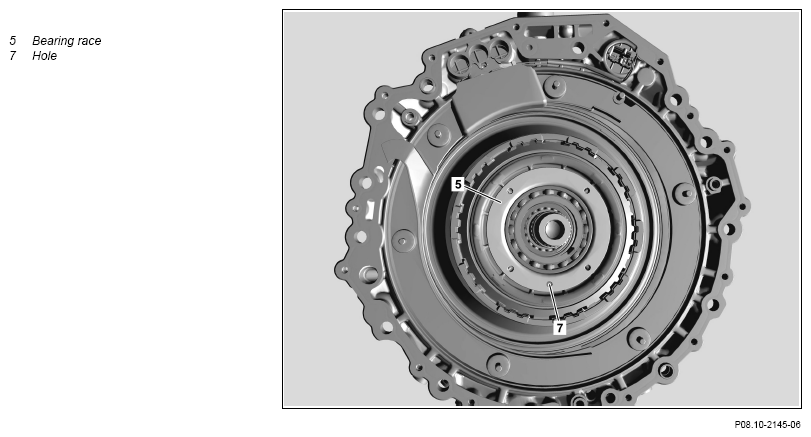

G14470730Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
DANGER Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC. No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers. AS54.10-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice  General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment   AH00.00-Z-0300-01A
Notice  Notes on technical cleanliness when working on high-voltage on-board electrical system   AH54.00-P-0004-01RFW
Notice  Notes on electric machine Model 205.013/053/213/253 with transmission 725.017
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 253.311/353/911/953 with transmission 725.047
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
AH08.10-P-0001-01MRD
Notice  Notes on battery   AH54.10-P-0001-01A
REMOVING Remove
1 Remove transmission. Model 205.013/213 with engine 654 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
AR27.10-P-0005OLI
    Model 253.311/911 with engine 654.9 with transmission 725.047
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
AR27.10-P-0005OLG
2 Clean electric machine in area of cap (1). Assembly cleaner *BR00.45-Z-1028-04A
3 Install transmission in assembly device. Model 205 with transmission 725.017/047
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 253 with transmission 725.047
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
AR27.10-P-0600-01MRD
REFER TO SPECIAL TOOLS 000 588 00 31 00 Assembly stand for cars IMPORTANTCommercially available devices/tools
Boom crane
WS01.00-Z-3028KOB
    SPECIAL TOOL Adapter Fig 7
    SPECIAL TOOL Lifting device Fig 4
    SPECIAL TOOL Assembly device Fig 3
4 Remove the radial shaft sealing ring from the electric machine.   AR08.10-P-0040OLC
5 Remove soundproofing of electric machine.
6 Remove screws (2) and screw in guide pins. SPECIAL TOOL Guide bolts Fig 8
7 Remove screws (3).
8 Remove screws (4).
9 Remove cover (1). NOTES
Do not drive in any sharp-edged tools.
The cap and/or electric machine will otherwise be damaged.
IMPORTANT The electric machine is lubricated with oil.

10 Unscrew the guide pins, remove the seal, and cover the electric machine using a dust cap. NOTES
Cover electric machine immediately after opening.
The electric machine will otherwise be damaged due to the ingress of dirt and moisture.
SPECIAL TOOL Guide bolts
Fig 8
    SPECIAL TOOL Protective cap Fig 5
11 Remove electric machine rotor position sensor (L20). When replacing the cover (1). AR08.10-P-0003OLC
12 Remove sealing rings (8). SPECIAL TOOL Assembly tool Fig 2
INSPECT Check
13 Check cap (1) for damage. If there is a problem,
↓
Replace cap (1).

INSTALLING Install
14 Install electric machine rotor position sensor (L20). When replacing the cover (1). AR08.10-P-0003OLC
15 Clean sealing surface on cap (1). Assembly cleaner *BR00.45-Z-1028-04A
16 Install new sealing rings (8). SPECIAL TOOL Assembly tool Fig 2
17 Remove dust cap, clean sealing surface of electric machine, and place seal on electric machine. NOTES
Remove dust cap only immediately before placing on the cap (1).
The electric machine will otherwise be damaged due to the ingress of dirt and moisture.
IMPORTANT Replace seal.
Assembly cleaner
*BR00.45-Z-1028-04A
    SPECIAL TOOL Protective cap Fig 5
18 Align bearing race (5). NOTES
The bore (7) must be aligned in the bearing ring (5) with the groove (6).
Otherwise the electric machine can get damaged.

19 Screw in guide pins. SPECIAL TOOL Guide bolts Fig 8
20 Position cap (1) on electric machine.
21 Tighten screws (3) by hand slightly to prevent bearing race (5) from twisting. NOTES
The bore (7) must be aligned in the bearing ring (5) with the groove (6).
Otherwise the electric machine can get damaged.

22 Tighten screws (4) in a crosswise pattern. TORQUE SPECIFICATION Screw/bolt, housing cover to torque converter housing *BA27.10-P-1018-04H
23 Unscrew guide pins and tighten screws (2). TORQUE SPECIFICATION Screw/bolt, housing cover to torque converter housing *BA27.10-P-1018-04H
    SPECIAL TOOL Guide bolts Fig 8
24 Tighten screws (3). TORQUE SPECIFICATION Screw/bolt, oil distributor bushing to housing cover *BA27.10-P-1023-04H
25 Install soundproofing of electric machine.
26 Install the radial shaft sealing ring of the electric machine.   AR08.10-P-0040OLC
27 Measure insulation resistance of electric machine, fill out the test log, and add to the repair documentation.
REFER TO SPECIAL TOOLS 000 588 00 19 00 Insulation measuring unit   WS54.00-P-0046B
REFER TO FORMS Test log for insulation resistance measurement, form   OF27.19-P-3000-01A
      AR08.10-P-0004-01MRD
    Electric machine insulation resistance *BE08.10-P-1001-01B
28 Check resistance values of electric machine sensors.
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD08.30-P-0001-01LF
REFER TO SPECIAL TOOLS 000 588 06 19 00 Measuring instrument NOTES
The plug for the test adapter must audibly engage in the contact carrier.
False measurements can occur otherwise.
NOTES
The test equipment must be checked for proper operation before starting the test work in accordance with the manufacturer's specifications.
False measurements can occur otherwise.
WS54.00-P-0043B
    SPECIAL TOOL Test adapter Fig 9
    SPECIAL TOOL Test box Fig 6
29 Remove transmission from assembly device.
REFER TO SPECIAL TOOLS 000 588 00 31 00 Assembly stand for cars IMPORTANTCommercially available devices/tools
Boom crane
WS01.00-Z-3028KOB
    SPECIAL TOOL Adapter Fig 7
    SPECIAL TOOL Lifting device Fig 4
    SPECIAL TOOL Assembly device Fig 3
30 Install transmission. Model 205.013/213 with engine 654 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
AR27.10-P-0005OLI
    Model 253.311/911 with engine 654.9 with transmission 725.047
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
AR27.10-P-0005OLG
ELECTRIC MACHINE INSULATION RESISTANCE

Number Designation Transmission 725.0
BE08.10-P-1001-01B Electric machine insulation resistance Isolation resistance U-phase downstream of transmission ground connection MΩ >1
V-phase downstream of transmission ground connection MΩ >1
W-phase downstream of transmission ground connection MΩ >1
Test voltage   V 500
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1018-04H Screw/bolt, housing cover to torque converter housing Nm 8
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 725.0/1
BA27.10-P-1023-04H Screw/bolt, oil distributor bushing to housing cover Nm 8
Fig 2: Identifying Assembly Tool (000 589 93 63 00)
G12939678Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Assembly Device (724 589 04 40 00)
G13657228Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Lifting Device (724 589 02 63 00)
G13657440Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Protective Cap (001 589 05 91 00)
G12082486Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Test Box (000 589 00 21 00)
G14184970Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Adapter (725 589 04 31 00)
G12083184Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Guide Bolts (724 589 01 15 00)
G12082490Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Test Adapter (724 589 04 63 00)
G12081162Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
