Remove/Install Radial Shaft Sealing Ring Of Electric Machine - AR08.10-P-0040OLC
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Model 167.117/154/317/354 with transmission 725.0
Model 205, 253 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))
Model 213.011/016/050/053/054/153/155/211/216/253 with transmission 725.0
Model 222 with transmission 725.0
with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in))

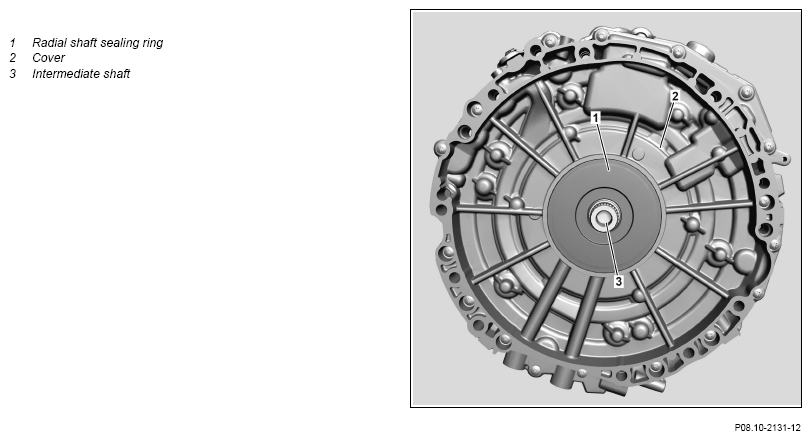

Fig 1: Shaft Sealing Ring Of Electric Machine Components Location - Model 253 With Transmission 725.0 With Code ME05
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | AH00.00-Z-0300-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on electric machine | Model 167.117/154/317/354 with transmission 725.037 Model 205.013/053/213/253 with transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Model 213.011/016/050/053/054/153/155/211/216/253 with transmission 725.007/017/047 Model 222.173 with transmission 725.017 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Model 253.311/353/911/953 with transmission 725.047 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AH08.10-P-0001-01MRD | |
| Remove | |||
| 1 | Remove transmission. | Model 167.117/317 with engine 654.9 with transmission 725.037 | AR27.10-P-0005MRH |
| Model 213.011/211 with engine 654.9 with transmission 725.047 | AR27.10-P-0005OLF | ||
| Model 222 with engine 276.8 with transmission 725.0 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR27.10-P-0005LFH | ||
| Model 213.016/216 with engine 654 with transmission 725.0 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR27.10-P-0005OLC | ||
| Model 205.013/213 with engine 654 with transmission 725.0 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR27.10-P-0005OLI | ||
| Model 213.050/053/054/153/155/253 with engine 274.9 with transmission 725.0 | AR27.10-P-0005MRD | ||
| Model 253.311/911 with engine 654 with transmission 725.0 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR27.10-P-0005OLG | ||
| Model 167.154/354 with transmission 725.0 | AR27.10-P-0005MRM | ||
| 2 | Clean cap (2) in area around radial shaft sealing ring (1). | Assembly cleaner | *BR00.45-Z-1028-04A |
| 3 | Pry out the radial shaft sealing ring (1) using a suitable tool. | Do not damage cap (2). Leaks can occur otherwise. |
|
| Check | |||
| 4 | Check contact surface of radial shaft sealing ring (1) for score marks and galling at intermediate shaft (3). | If score marks or galling are present: ↓ Replace electric machine. Model 167.117/154/317/354 with transmission 725.0 Model 213.011/016/050/053/054/153/155/211/216/253 with transmission 725.0 Model 222 with transmission 725.0 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR08.10-P-0002OLC |
| Model 205 with transmission 725.017/047 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) Model 253 with transmission 725.047 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR08.10-P-0002OLG | ||
| Install | |||
| 5 | Position new radial shaft sealing ring (1) on cap (2). | Push radial shaft sealing ring (1) carefully over the intermediate shaft (3). The radial shaft sealing ring (1) will otherwise be damaged. |
|
| 6 | Use a plastic mallet to hammer in new radial shaft sealing ring (1) evenly into cap (2) up to end stop. | ||
| 7 | Install transmission. | Model 167.117/317 with engine 654.9 with transmission 725.037 | AR27.10-P-0005MRH |
| Model 213.011/211 with engine 654.9 with transmission 725.047 | AR27.10-P-0005OLF | ||
| Model 213.016/216 with engine 654 with transmission 725.0 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR27.10-P-0005OLC | ||
| Model 222 with engine 276.8 with transmission 725.0 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR27.10-P-0005LFH | ||
| Model 253.311/911 with engine 654 with transmission 725.0 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR27.10-P-0005OLG | ||
| Model 213.050/053/054/153/155/253 with engine 274.9 with transmission 725.0 | AR27.10-P-0005MRD | ||
| Model 205.013/213 with engine 654 with transmission 725.0 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) |
AR27.10-P-0005OLI | ||
| Model 167.154/354 with transmission 725.0 | AR27.10-P-0005MRM |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |
