Test Log For Insulation Resistance Measurement, Form - OF27.19-P-3000-01A

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 724.2, 725.0

IMPORTANT This test log is to be filled out after replacing the rotor position sensors, to ensure the functional reliability of the electric machine is given.

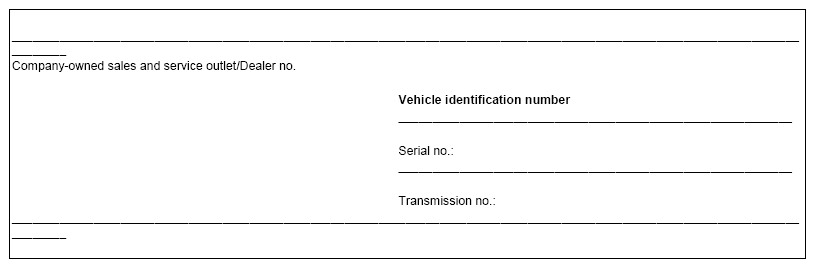

G14135337Courtesy of MERCEDES-BENZ USA

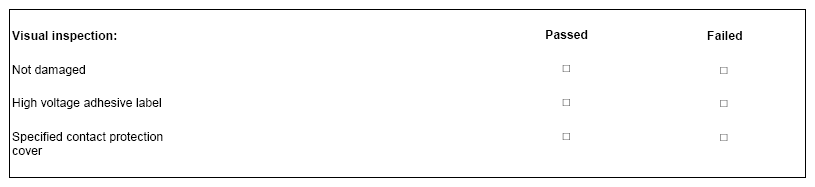

G14135338Courtesy of MERCEDES-BENZ USA

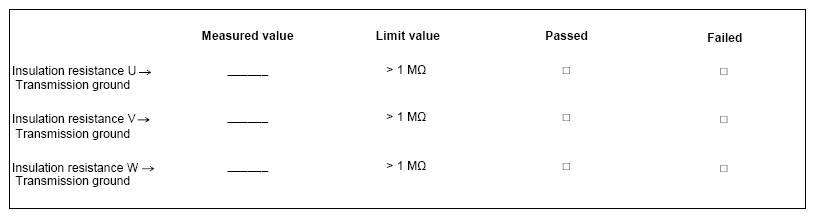

G14135339Courtesy of MERCEDES-BENZ USA
G14135340Courtesy of MERCEDES-BENZ USA

IMPORTANT The test log is to be included with the repair order.
