Disassemble/Assemble Clutch Housing - AR27.40-P-0520MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

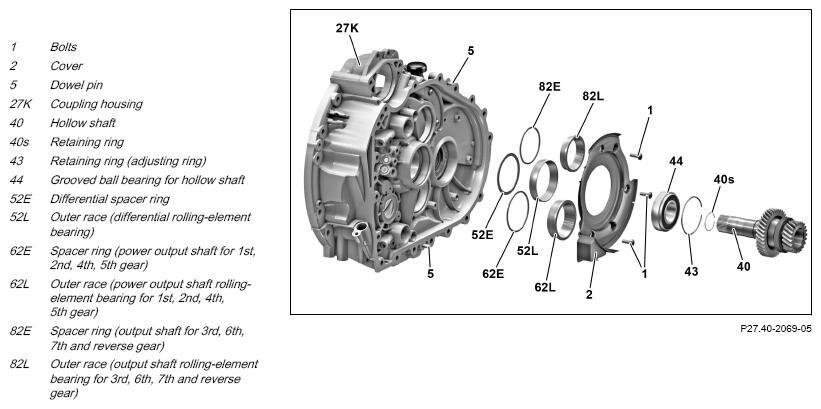

Transmission 724.0 in model 118, 177, 247

Shown on Transmission 724.0 except code

M005 (Vehicles with 4MATIC/all-wheel drive)

G16063395Courtesy of MERCEDES-BENZ USA
CAUTION Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil Wear protective gloves, protective clothing and safety glasses.
Do not pour transmission oil into beverage bottles.		 AS00.40-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.		 AS00.00-Z-0017-01A
  Notes on automatic transmission   AH27.19-P-0001-01NKB
REMOVING Remove
1 Drain fluid from transmission.
REFER TO MAINTENANCE     AP27.00-P-2707NK
2 Remove transmission.   AR27.10-P-0009MFC
3 Fasten transmission onto assembly stand.   AR27.10-P-0600-01NKB
REFER TO SPECIAL TOOLS 000 588 27 31 00 Assembly stand for cars   WS01.00-P-0262B
    SPECIAL TOOL Adapter Fig 6
    SPECIAL TOOL Assembly device Fig 1
    SPECIAL TOOL Assembly device Fig 9
DISASSEMBLING Disassemble
4 Disassemble transmission and remove coupling housing (27K) from transmission housing.   AR27.10-P-0510MFC
5 Unscrew screws (1) and remove cover (2) from coupling housing (27K).
6 Remove dowel pins (5) from crankcase (27K). If the coupling housing (27K) is replaced.
7 Remove radial shaft sealing rings from axle shafts.   AR27.40-P-0211MFC
8 Remove outer race (52L) and then remove differential spacer ring (52E) from coupling housing (27K) IMPORTANT Replace outer race (52L) after each removal. AR27.40-P-0520-01NKB
    SPECIAL TOOL Internal extractor Fig 5
    SPECIAL TOOL Countersupport Fig 11
9 Remove outer races (62L, 82L) from coupling housing (27K) then remove spacer rings (62E, 82E) IMPORTANT Replace outer races (62L, 82L) after each removal. AR27.40-P-0520-01NKB
    SPECIAL TOOL Internal extractor Fig 3
    SPECIAL TOOL Countersupport Fig 11
10 Remove retaining ring (40 s) from hollow shaft (40). SPECIAL TOOL Pliers Fig 7
11 Using suitable tool, press hollow shaft (40) out of coupling housing (27K). If required.
12 Remove retaining ring (43) using a suitable tool from the coupling housing (27K). If required.
13 Press hollow shaft deep-groove ball bearing (44) out of clutch housing (27K). If required.
SPECIAL TOOL Drift		 Fig 10
INSPECT Check
14 Check all parts for damage and wear, replace if necessary. If an outer race (52L, 62L, 82L) is damaged,
↓
replace outer race (52L, 62L or 82L) and associated rolling-element bearing.
Replace rolling-element bearing of hollow shaft.		 AR27.50-P-0650MFC
    Replace rolling-element bearing of power output shaft. AR27.50-P-0560MFC
    Replace differential and associated bearing. AR27.50-P-0771MFC
ASSEMBLING Assemble
15 Moisten all parts with transmission oil before installation.
REFER TO CAPACITIES & SPECIFICATIONS Automatic transmission fluid (ATF) (specification 236.21)   BB00.40-P-0236-21A
MEASURING Measure
16 Measure and adjust end play of hollow shaft deep-groove ball bearing (44). If hollow shaft (40) was removed.
IMPORTANTCommercially available devices/tools
Digital vernier caliper		 AR27.50-P-0650-03NKB
    Loctite 7063 (400 ml) cleaning spray *BR00.45-Z-1046-04A
    Loctite 7200 *BR00.45-Z-1038-04A
    SPECIAL TOOL Parallel support Fig 13
17 Press new hollow shaft deep-groove ball bearing (44) into coupling housing (27K). IMPORTANT Replace hollow shaft deep-groove ball bearing (44) after every removal.
SPECIAL TOOL Drift		 Fig 12
18 Press hollow shaft (40) into coupling housing (27K). IMPORTANT Use suitable tool to prop up bearing of hollow shaft (40).
SPECIAL TOOL Sleeve		 Fig 4
19 Install new retaining ring (40s) of hollow shaft (40). NOTES The retaining ring (40s) should be stretched
as little as possible.
Otherwise, the pre-tension required to
position the hollow shaft (40) correctly in the
clutch housing (27K) will be missing during
installation.
IMPORTANT
Replace retaining ring (40 s) after each removal.
SPECIAL TOOL Pliers		 Fig 7
20 Adjust gear set of dual-clutch transmission.   AR27.50-P-0900MFC
21 Place spacer rings (62E, 82E) into coupling housing (27K) and press in outer races (62L, 82L). SPECIAL TOOL Drift Fig 8
22 Place differential spacer ring (52E) into coupling housing (27K) and press in outer race (52L). SPECIAL TOOL Drift Fig 2
23 Install radial shaft sealing ring of axle shafts.   AR27.40-P-0211MFC
24 Install dowel pins (5) into coupling housing (27K). If the coupling housing (27K) was replaced.
25 Insert cover (2) into coupling housing (27K).
26 Screw in screws/bolts (1). TORQUE SPECIFICATION Bolt, spur gear cover to clutch housing *BA27.10-P-1005-04F
27 Assemble transmission and coupling housing (27K) onto transmission housing.   AR27.10-P-0510MFC
INSTALLING Install
28 Remove transmission from assembly stand.   AR27.10-P-0600-01NKB
REFER TO SPECIAL TOOLS 000 588 27 31 00 Assembly stand for cars   WS01.00-P-0262B
    SPECIAL TOOL Adapter Fig 6
    SPECIAL TOOL Assembly device Fig 1
    SPECIAL TOOL Assembly device Fig 9
29 Install transmission.   AR27.10-P-0009MFC
INSPECT Check
30 Check transmission oil level, correct, if necessary.   AR27.00-P-0104MFC
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
WARNING Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust. Wear protective clothing and safety glasses. Use the extraction system. Move people out of the danger zone. AS49.00-Z-0001-01A
31 Perform engine test run and check transmission for proper operation and leak tightness.
AUTOMATIC TRANSMISSION COMPLETE

Number Designation Transmission 724.0
BA27.10-P-1005-04F Bolt, spur gear cover to clutch housing Nm 8
Fig 1: Identifying Assembly Device (724 589 02 40 00)
G16063396Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Drift (203 589 04 15 00)
G16063397Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Internal Extractor (000 589 30 33 00)
G13668011Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Sleeve (168 589 02 14 00)
G16063399Courtesy of MERCEDES-BENZ USA
Fig 5: Identifying Internal Extractor (000 589 68 33 00)
G10250293Courtesy of MERCEDES-BENZ USA
Fig 6: Identifying Adapter (724 589 04 31 00)
G15491520Courtesy of MERCEDES-BENZ USA
Fig 7: Identifying Pliers (000 589 52 37 00)
G11972023Courtesy of MERCEDES-BENZ USA
Fig 8: Identifying Drift (722 589 15 15 00)
G16063403Courtesy of MERCEDES-BENZ USA
Fig 9: Identifying Assembly Device (724 589 00 40 00)
G16063404Courtesy of MERCEDES-BENZ USA
Fig 10: Identifying Drift (711 589 08 15 00)
G10250298Courtesy of MERCEDES-BENZ USA
Fig 11: Identifying Countersupport (000 589 35 33 00)
G10250296Courtesy of MERCEDES-BENZ USA
Fig 12: Identifying Drift (203 589 03 15 00)
G16063407Courtesy of MERCEDES-BENZ USA
Fig 13: Identifying Parallel Support (168 589 03 21 00)
G13657131Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1038-04A Loctite 7200 A 010 989 90 71
BR00.45-Z-1046-04A Loctite 7063 (400 ml) cleaning spray A 001 986 71 71 09
