Remove Tapered Roller Bearing Outer Race From Clutch Housing - AR27.40-P-0520-01NKB

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Transmission 724.0 in model 117

Transmission 724.0 in model 118, 177, 247

Transmission 724.0 in model 156

Transmission 724.0 in model 176

Transmission 724.0 in model 242

Transmission 724.0 in model 246

Fig 1: Identifying Internal Extractor (000 589 68 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Internal Extractor (000 589 30 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Countersupport (000 589 35 33 00)

Courtesy of MERCEDES-BENZ USA

The following special tools are required: Counter stay (000 589 35 33 00) (02), an internal extractor (000 589 68 33 00) (01) and an internal extractor (000 589 30 33 00) (03).

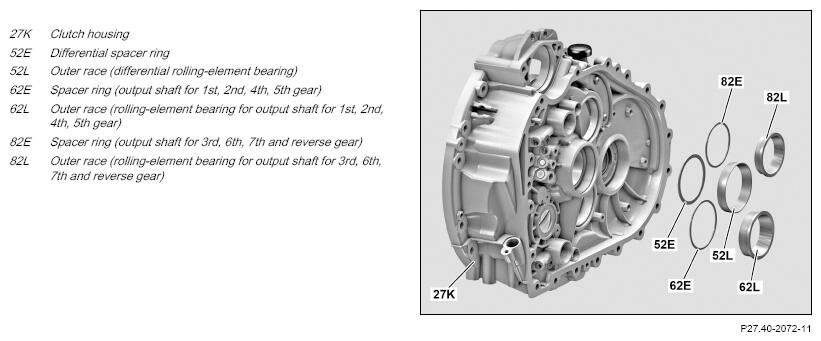

Shown on Transmission without CODE M005 (4MATIC)

Courtesy of MERCEDES-BENZ USA

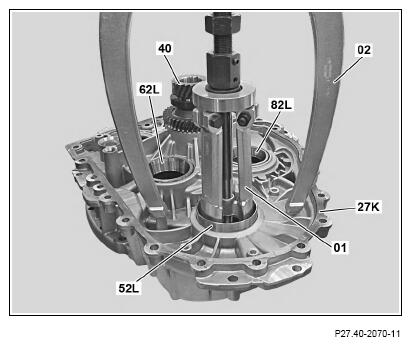

Pull outer race (52L) using internal extractor (01) and counter stay (02) out of coupling housing (27K).
Remove spacer ring (52E) from coupling housing (27K).

Courtesy of MERCEDES-BENZ USA

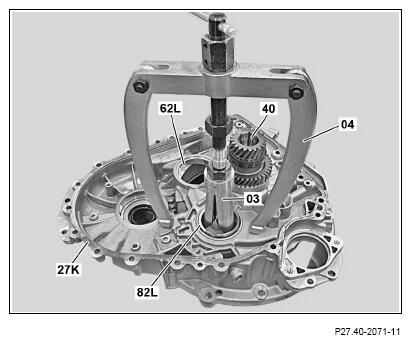

Pull outer races (62L82L) using internal extractor (03) and counter stay (04) out of coupling housing (27K).
Remove spacer rings (62E, 82E) from coupling housing (27K).
