Disassemble/Assemble Output Shaft - AR27.50-P-0560MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.0 in model 118, 177, 247
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Disassemble | |||
| 1 | Disassemble transmission housing. | AR27.40-P-0510MFC | |

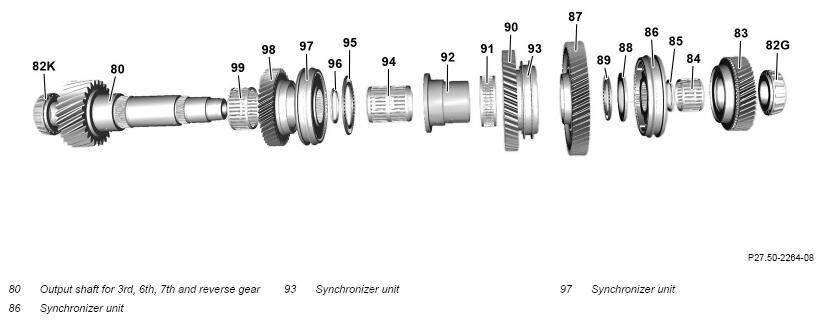

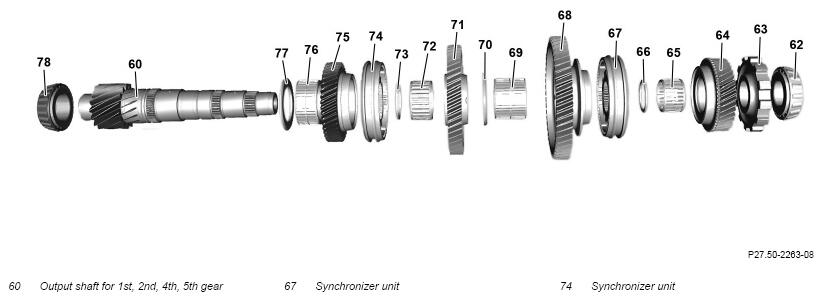

| 2 | Disassemble output shafts (60, 80). | AR27.50-P-0550-03MFC | |
| Mark the location and position of the components relative to each other before disassembling. | |||
| Fig 12 | |||
| Fig 8 | |||
| Fig 1 | |||
| Fig 3 | |||
| Fig 4 | |||
| Fig 5 | |||
| Fig 6 | |||
| Check | |||
| 3 | Check all parts for damage and wear, replace if necessary. | If there is visible damage, ↓ replace the engaged gears. |
|
| Replace gears on hollow shaft | AR27.50-P-0650MFC | ||
| Replace gears on drive shaft | AR27.50-P-0550MFC | ||
| Assemble | |||
| 4 | Lubricate all parts with transmission oil. | ||
| Automatic transmission fluid (ATF) (specification 236.21) | BB00.40-P-0236-21A | ||
| 5 | Assemble output shafts (60, 80). | AR27.50-P-0550-02MFC | |
| Fig 11 | |||
| Fig 9 | |||
| Fig 7 | |||
| Fig 10 | |||
| Fig 2 | |||
| Fig 6 | |||
| 6 | Assemble transmission housing. | AR27.40-P-0510MFC |
