Remove/Install Differential And Bearing - AR27.50-P-0771MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.0 in model 118, 177, 247
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove | |||
| 1 | Remove transmission. | AR27.10-P-0009MFC | |
| Disassemble | |||
| 2 | Disassemble transmission. | AR27.10-P-0510MFC | |

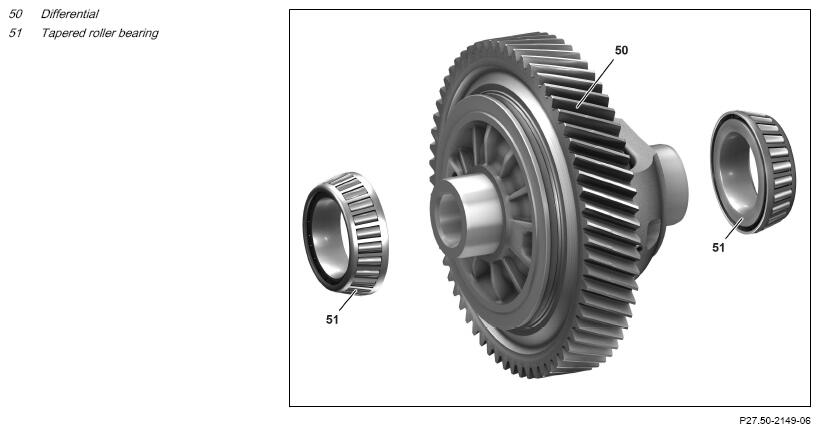

| 3 | Move differential (50) to removal position. | AR27.10-P-0600-01NKB | |
| 000 588 27 31 00 Assembly stand for cars | WS01.00-P-0262B | ||
| Fig 3 | |||
| Fig 1 | |||
| Fig 5 | |||
| 4 | Remove tapered roller bearing (51) from differential (50). | AR27.50-P-0771-01NKB | |
| Fig 2 | |||
| Fig 6 | |||
| Fig 7 | |||
| Assemble | |||
| 5 | Install tapered roller bearing (51) of differential (50). | AR27.50-P-0771-01NKB | |
| Fig 4 | |||
| 6 | Assemble transmission. | AR27.10-P-0510MFC | |
| Install | |||
| 7 | Install transmission. | AR27.10-P-0009MFC |
