Disassemble/Assemble Hollow Shaft - AR27.50-P-0650MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 724.0 in model 118, 177, 247
MODIFICATION NOTES
| 19.07.2018 | Operation step validity inserted. | AR27.50-P-0650-01NKB In operation step 2 | |
| 19.07.2018 | Operation step variant created. | AR27.50-P-0650-02NKB In operation step 1 |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Disassemble | |||
| 1 | Press hollow shaft (40) out of coupling housing. | AR27.40-P-0520MFC | |
| 2 | Disassemble hollow shaft (40). | AR27.50-P-0650-01NKB | |

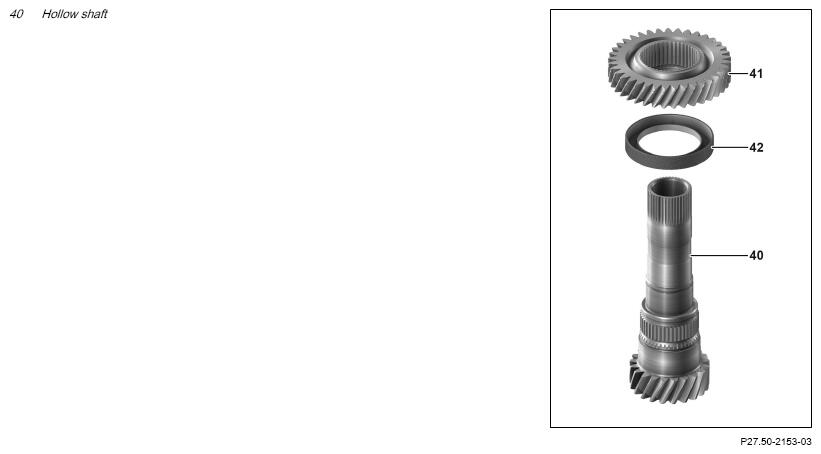

| Fig 1 | |||
| Assemble | |||
| 3 | Assemble hollow shaft (40). | AR27.50-P-0650-02NKB | |
| Fig 2 | |||
| 4 | Press hollow shaft (40) into coupling housing. | AR27.40-P-0520MFC |
