Adjust Front Side Window - AR67.30-P-0100MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3/6

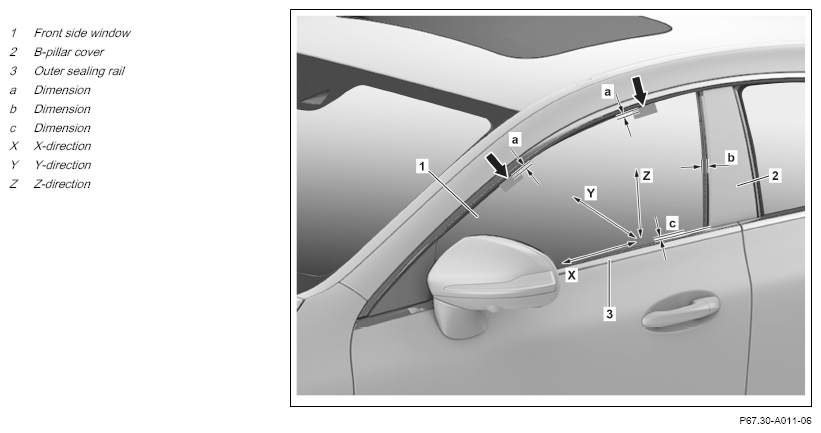

Shown on left side of vehicle on model 118.3
| Check | |||
| 1 | Check adjustment of front door. | AR72.10-P-0550MFC | |
| 2 | Attach tapes (arrows), as shown, so that they are flush with upper edge of front side window (1). | ||
| 3 | Fully lower front side window (1) and then raise again to upper end position. | ||
| 4 | Close front door. | ||
| 5 | Apply markings to tapes (arrows) at lower edge of roof paneling. | Ensure that roof frame seal is not pressed in during application of markings. An incorrect window guide depth will otherwise be determined. |
|
| 6 | Determine dimension (b). | ||
| 7 | Determine dimension (c). | ||
| 8 | Open front door and determine dimensions (a). | ||
| 9 | Compare dimensions (a, b, c) with specified values. | Insertion depth of front door side window in roof edge |
*BE67.30-P-1001-03E |
| Distance between front door side window and B-pillar cover | *BE67.30-P-1002-03E | ||
| Transition between front door side window and B-pillar cover | *BE67.30-P-1003-03E | ||
| Adjust front side window (1) in X-direction (X) | |||
| 10 | Remove door trim. | AR72.10-P-6575MFA | |
| Fig 3 | |||
| 11 | Adjust distance between front side window (1) and B-pillar cover (2). | AR67.30-P-0100-03MFC | |
| Distance between front door side window and B-pillar cover | *BE67.30-P-1002-03E | ||
| *BA72.10-P-1009-01ZA | |||
| Fig 1 | |||
| Adjust front side window (1) in Y-direction (Y) | |||
| 12 | Adjust transition between front side window (1) and B-pillar cover (2). | AR67.30-P-0100-02MFC | |
| Transition between front door side window and B-pillar cover | *BE67.30-P-1003-03E | ||
| Fig 2 | |||
| Fig 4 | |||
| Adjusting in Z-direction (Z) | |||
| 13 | Remove outer sealing rail (3). | AR72.10-P-1610MFC | |
| 14 | Adjust window guide depth of front side window (1) in roof frame seal. | AR67.30-P-0100-04MFC | |
| Insertion depth of front door side window in roof edge | *BE67.30-P-1001-03E | ||
| Fig 1 | |||
| Install | |||
| 15 | Install outer sealing rail (3). | AR72.10-P-1610MFC | |
| 16 | Install door paneling. | AR72.10-P-6575MFA | |
| 17 | Remove tapes (arrows). | ||
| 18 | Normalize the power window of the front side window (1). |
SIDE WINDOW(S)
| Number | Designation | Model 118 | ||
|---|---|---|---|---|
| BE67.30-P-1001-03E | Insertion depth of front door side window in roof edge | Dimension "a" | mm | 4, 7 (±1) |
SIDE WINDOW(S)
| Number | Designation | Model 118 | ||
|---|---|---|---|---|
| BE67.30-P-1002-03E | Distance between front door side window and B-pillar cover | Dimension "b" | mm | 10 (±1) |
SIDE WINDOW(S)
| Number | Designation | Model 118 | ||
|---|---|---|---|---|
| BE67.30-P-1003-03E | Transition between front door side window and B-pillar cover | Dimension "c" | mm | 0, 5 (+1/-0, 5) |
FRONT DOOR
| Number | Designation | Model 118 | |
|---|---|---|---|
| BA72.10-P-1009-01ZA | Bolt, window to window lifter | Nm | 9 |
