Adjust Pretension At Front Side Window - AR67.30-P-0100-02MFC

WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.

Model 118.3/6

SIDE WINDOW(S)

Number	Designation			Model 118
BE67.30-P-1003-03E	Transition between front door side window and B-pillar cover	Dimension "c"	mm	0, 5 (+1/-0, 5)

Fig 1: Identifying Socket Wrench (209 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Socket (209 589 00 09 03)

Courtesy of MERCEDES-BENZ USA

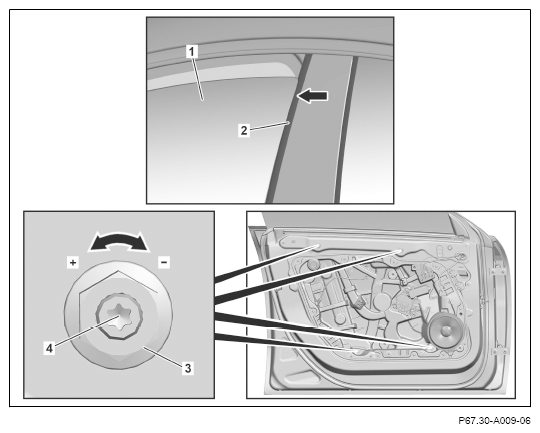

Check preload of front side window (1) at seal (2)

Move front door to first lock catch.
Check contact of the window edge of the front side window (1) with the seal (2).

Window edge of front side window (1) must just come in contact with seal in upper area (arrow) (2).

If there is a problem,

↓

adjust front side window (1) to the seal (2).

Courtesy of MERCEDES-BENZ USA

Adjust preload of front side window (1) at seal (2)
Open front door.
Loosen nuts (3) using the socket wrench and the socket wrench socket and adjust the preload of the front side window (1) by turning the setting screws (4).
Turn setting screws (4) only until the adjustment force increases noticeably. Max. adjustment range is thus achieved. Do not continue turning setting screws (4).

Thread will otherwise be damaged.

Do not unscrew the nuts (3) from the adjustment screws (4).

Otherwise. the adjustment screws (4) could be pressed behind the door module and could then no longer be reached.

Turning the setting screws (4) counterclockwise increases ("+") the preload of the front side window (1).

Turning the setting screws (4) clockwise reduces ("-") preload of the front side window (1).
Move front door to first lock catch.
Check for contact of the window edge of the front side window (1) with the seal (2).
If there is a problem,

↓

Adjust once again front side window (1).
Open front door.
Tighten nuts (3) using the socket wrench and the socket wrench socket.

When tightening nuts (3), the setting screws (4) must not turn. If they do, the adjustment must be repeated.
