Remove/Install Sealing Rail - AR72.10-P-1610MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3/6
Shown on model 118.3 on left front door
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove/install | |||
| 1 | Open corresponding door. | ||
| 2 | Lower corresponding side window. | ||

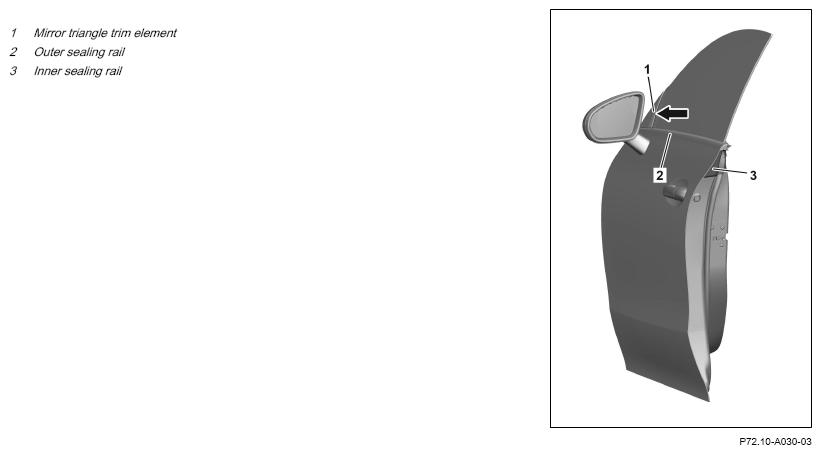

| 3 | Release mirror triangle trim element (1) at marked location (arrow) in window guide using suitable tool and then unclip. | When removing sealing rail at front door. |
Fig 1 |
| 4 | Remove outer sealing rail (2). | Carefully lift out outer sealing rail (2) from fold of inner door panel. Outer sealing rail (2) will otherwise be damaged. Ensure that outer sealing rail (2) is correctly seated in inner door panel. Lubricant, rubber assembly 1 L |
*BR00.45-Z-1010-06A |
| Fig 1 | |||
| 5 | Remove corresponding door trim. | Door trim of front door. | AR72.10-P-6575MFA |
| Door trim of rear door. | AR72.12-P-1011MFA | ||
| 6 | Remove inner sealing rail (3). | Carefully lift inner sealing rail (3) out of fold of inner door panel. Inner sealing rail (3) will otherwise be damaged. Ensure inner sealing rail (3) is correctly seated in inner door panel. Lubricant, rubber assembly 1 L |
*BR00.45-Z-1010-06A |
| Fig 1 | |||
| 7 | Install in the reverse order. |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 L | A 000 989 03 67 |
