Adjust Gap Dimension Between Front Side Window And B-Pillar Cover - AR67.30-P-0100-03MFC
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2023 Mercedes-Benz CLA45 AMG, 2023 Mercedes-Benz CLA35 AMG, 2023 Mercedes-Benz CLA250, 2022 Mercedes-Benz CLA45 AMG, and 2022 Mercedes-Benz CLA35 AMG. However, it is still accessible from the selected car via links, so may be relevant.
Model 118.3/6
SIDE WINDOW(S)
| Number | Designation | Model 118 | ||
|---|---|---|---|---|
| BE67.30-P-1002-03E | Distance between front door side window and B-pillar cover | Dimension "b" | mm | 10 (±1) |
FRONT DOOR
| Number | Designation | Model 118 | |
|---|---|---|---|
| BA72.10-P-1009-01ZA | Bolt, window to window lifter | Nm | 9 |

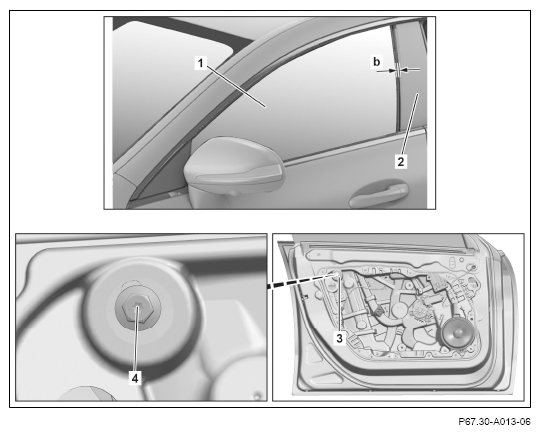

Adjust gap dimensions between front side window (1) and B-pillar cover (2), shown on model 118.3
- Remove stop plug (3).
- Release screw (4).
- Move front side window (1) and adjust dimension (b) to B-pillar cover (2).
Determine dimension (b) at two points with as much space between them as possible with the
feeler gauge.
A taper of dimension (b) of max. 1 mm is permitted from top to bottom.
- Tighten the screw (4).
- Close front door.
- Check dimension (b) again.
If there is a problem,
↓
Repeat adjustment procedure.
- Install stop plug (3).
