Remove/Install Front Engine Mount - AR22.10-P-4330MNP

Engine 176 in model 217, 222

Engine 177 in model 217, 222

Shown on model 222 with engine 176 and code M005

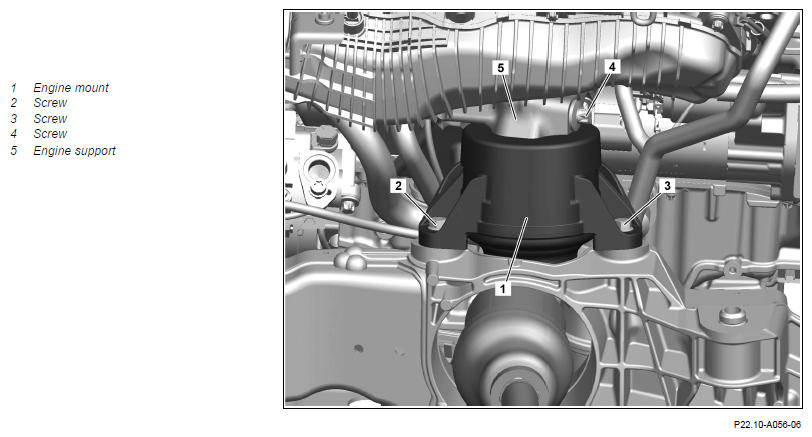

Fig 1: Front Engine Mount Components Location - Engine 176, 177 In Model 222 (Shown With Engine 176 And Code M005)

Courtesy of MERCEDES-BENZ USA

	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Secure vehicle on vehicle lift.		AR00.60-P-0100CW
2	Attach engine hoist.		AR33.10-P-0105MNP
3	Remove front axle shafts.	Engine 176, 177 in model 217, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR33.30-P-0620LFX
4	Unscrew the screw (4) for the engine carriers (5)	Engine 176 in model 217 with code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 176 in model 222 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code Z07 (B7 armoring on special protection version) Engine 176 in model 222 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code Z07 (B7 armoring on special protection version) Bolt, front engine mount to engine support	*BA22.10-P-1001-03K
5.1	Disconnect steering coupling.	Model 217 with engine 176, 177 Model 222 as of 4/30/14 with engine 176, 177
			AR46.10-P-8000-01LW
		Engine mount wrench set	Fig 6
5.2	Remove steering coupling.	Model 222 up to 4/29/14 with engine 176, 177
			AR46.10-P-8000RK
6	Release transmission oil lines from the engine and from the transmission and place to one side.	Model 217, 222 with engine 177 with transmission 725.0	AR27.55-P-0600MNM
		Model 217, 222 with engine 176 with transmission 725.0 Do not subject the lines to tension. Damage and function impairments will otherwise occur.	AR27.55-P-0600MNK
7	Tighten tensioning screw of the engine hoist and lift engine carefully as far as possible.	Do not put electrical lines and hoses under tension. Damage and function impairments will otherwise occur. :  Ensure that the engine mounts (1) extend into the engine carriers (5).
		Engine lifting device	Fig 8
		Lifting eye	Fig 5
8	Carefully lower front axle by 16 cm.	Engine 176, 177 in model 217, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive)
			AR33.10-P-0101LF
		Do not kink or crush lines or subject lines to tension. Otherwise, the lines will be damaged and there will be function impairments.
9	Remove screw (2, 3).	Engine 176 in model 217 with code M005 (Vehicles with 4MATIC/all-wheel drive) Engine 176 in model 222 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code Z07 (B7 armoring on special protection version) Engine 176 in model 222 with code M005 (Vehicles with 4MATIC/all-wheel drive) with code Z07 (B7 armoring on special protection version) Screw/bolt, front engine mount to front axle carrier	*BA22.10-P-1002-03K
10	Remove engine mounts (1) to the lower rear.	Note the installation position of the engine mounts (1), mark if needed. Always replace engine mounts (1) in pairs. Pay attention to environmental protection regulations for disposal of engine mounts (1). Dispose of engine mounts (1) into mixed scrap
11	Install in the reverse order.
	Finishing activity
12	Perform wheel alignment measurement.	Engine 176, 177 in model 217, 222 with code M005 (Vehicles with 4MATIC/all-wheel drive)
			AR40.20-P-0200LF
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Rear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
13	Check transmission oil level and correct if necessary.	Engine 176, 177 in model 217, 222 except code M005 (Vehicles with 4MATIC/all-wheel drive)
	Notes on oil pan versions		AH27.10-P-0002-01EWN
	Automatic transmission fluids (ATF) (specification 236.17)		BB00.40-P-0236-17A
			AR27.00-P-0270-02EWN
		MB Plastilube brake paste (brownish)	*BR00.45-Z-1084-06A
		Assembly cleaner	*BR00.45-Z-1028-04A
		Oil dispenser	Fig 9
		Socket wrench	Fig 7
		Adapter	Fig 3
		Socket wrench	Fig 2
		Oil level sensor	Fig 4

Fig 2: Identifying Socket Wrench (724 589 01 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Adapter (725 589 00 90 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Oil Level Sensor (000 588 09 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Lifting Eye (177 589 00 62 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Engine Mount Wrench Set (001 589 01 16 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Socket Wrench (725 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 8: Identifying Engine Lifting Device (240 589 00 61 00)

Courtesy of MERCEDES-BENZ USA

Fig 9: Identifying Oil Dispenser (000 588 06 82 00)

Courtesy of MERCEDES-BENZ USA
