Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600MNM
Transmission 725.0 in model 217, 222 with engine 177
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove center and rear sections of lower engine compartment lining | AR61.20-P-1105LF | |
| 2 | Remove bolts (6) | *BA27.55-P-1018-01D | |
| 3 | Remove oil lines (2, 4) from automatic transmission | AR27.10-P-0501-03LF | |

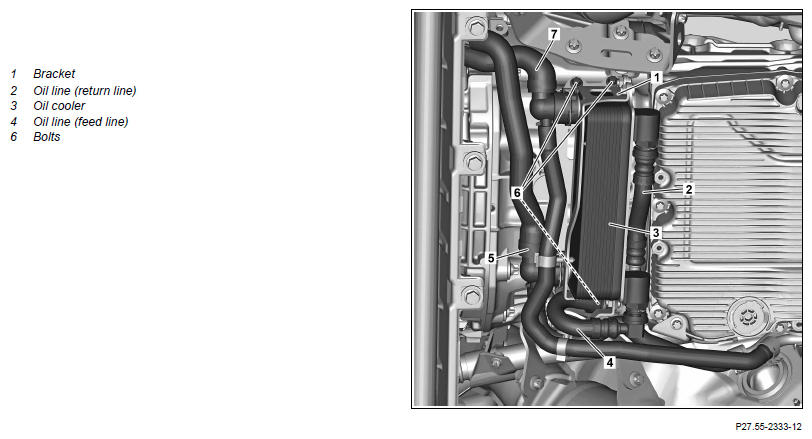

| Fig 1 | |||
| 4 | Seal openings in automatic transmission using suitable stop plugs | Fig 1 | |
| 5 | Remove oil lines (2, 4) from oil cooler | AR27.10-P-0501-03LF | |
| Fig 1 | |||
| 6 | Seal openings in oil cooler (3) using suitable stop plugs | Fig 1 | |
| 7 | Remove oil lines (2, 4) downwards | ||
| 8 | Install in the reverse order | ||
| 9 | Check fluid level in automatic transmission and adjust to correct level | AR27.00-P-0270EWN | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 10 | Perform engine test run, while doing so check automatic transmission for proper operation and leak tightness | ||
| 11 | Install center and rear sections of lower engine compartment lining | AR61.20-P-1105LF |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1018-01D | Bolt, oil cooler to transmission | Nm | 12 |
