Attach/Detach Engine Hoist - AR33.10-P-0105MNP
Model 217, 222 with engine 176, 177
Shown on MODEL 222 with ENGINE 278
Shown on engine 176
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Install/remove | |||
| 1 | Remove upper engine cover. | ||
| 2 | Remove ground line of battery. | AR54.10-P-0003LF | |
| 3 | Remove air filter housing. | Remove left air filter housing Model 217, 222 with engine 176 |
AR09.10-P-1151MNL |
| Remove right air filter housing Model 217, 222 with engine 176 | AR09.10-P-1152MNL | ||
| Remove left air filter housing Model 217, 222 with engine 177 | AR09.10-P-1151MNM | ||
| Remove right air filter housing Model 217, 222 with engine 177 | AR09.10-P-1152MNM | ||
| 4 | Remove engine compartment covers above the left and right suspension strut towers. | ||
| 5 | Remove washer fluid reservoir of windshield washer system. | AR82.35-P-6000LF | |

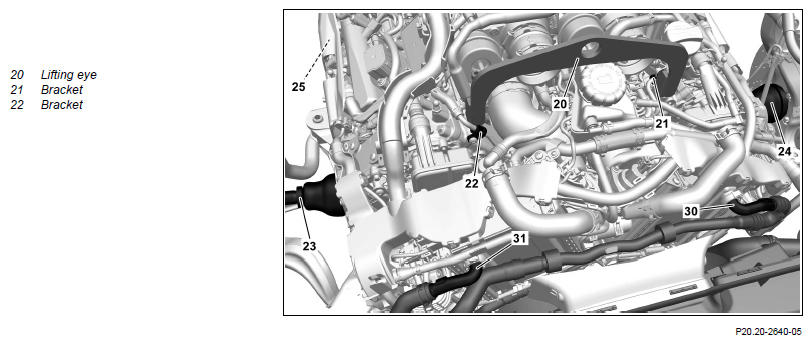

| 6 | Unscrew screws for the holder (21, 22) and push low-pressure lines out of the assembly area of the lifting lug (20). | Model 217, 222 with engine 177 | AR07.03-P-1121MNM |
| Model 217, 222 with engine 176 Do not subject the lines to tension. Damage and function impairments will otherwise occur. |
AR07.03-P-1121MNL | ||
| *BA07.03-P-1004-01H | |||
| 7 | Attach the lifting lug (20) to the engine. | *BA01.30-P-1004-01N | |

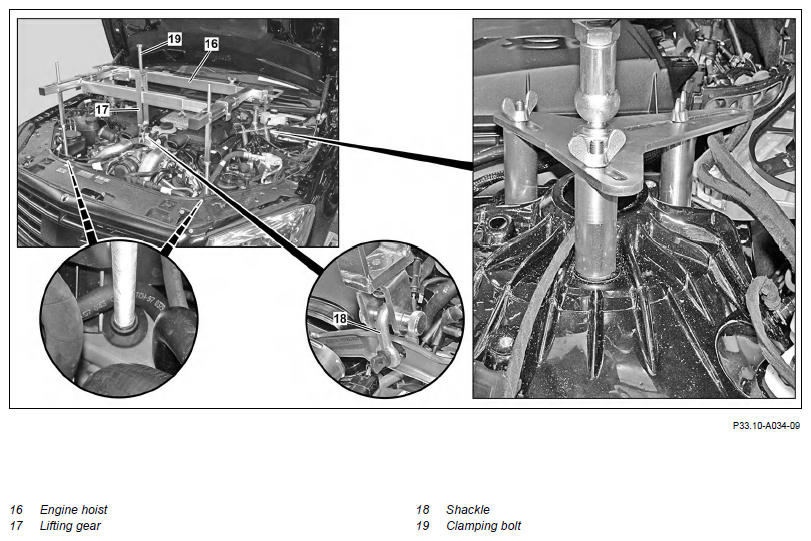

| Fig 1 | |||
| 8 | Assemble engine support fixture (16). | ||
| Fig 2 | |||
| 9 | Place assembled engine support fixture (16) onto suspension strut towers and longitudinal members. | ||
| Fig 2 | |||
| 10 | Adjust engine support fixture (16) and tighten threaded connections. | ||
| Fig 2 | |||
| 11 | Attach the shackle (18) to the lifting gear+ (17) and the lifting lug (20). | ||
| Fig 1 | |||
| Fig 2 | |||
| 12 | Tighten tensioning screw (19) and tension lifting gear (17). | ||
| 13 | Removal in the reverse order. |
CYLINDER HEAD
| Number | Designation | Engine 176 | Engine 177 | ||
|---|---|---|---|---|---|
| BA01.30-P-1004-01N | Bolt, front lifting eye to cylinder head | M7 | Nm | 14 | 14 |
INJECTION NOZZLES, INJECTION VALVES, LINES
| Number | Designation | Engine 176 | Engine 177 | |
|---|---|---|---|---|
| BA07.03-P-1004-01H | Bolt, fuel line clamp to engine/bracket | Nm | 9 | 9 |
