Remove/Install Oil Lines Of Oil Cooling For Automatic Transmission - AR27.55-P-0600MNK
Transmission 725.0 in model 217, 222 with engine 176

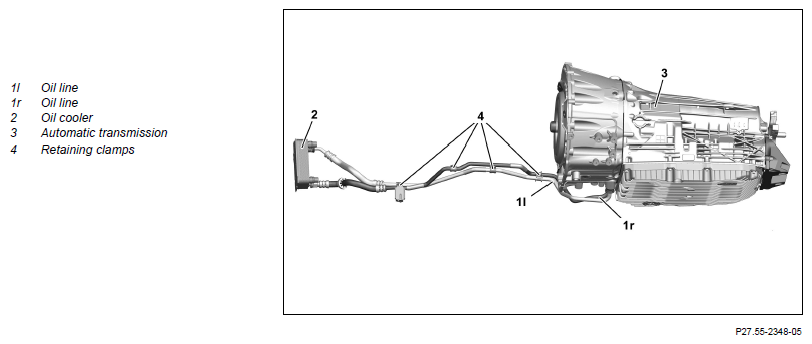

Shown on transmission 725.0 with engine 176 with code M005 (4MATIC)

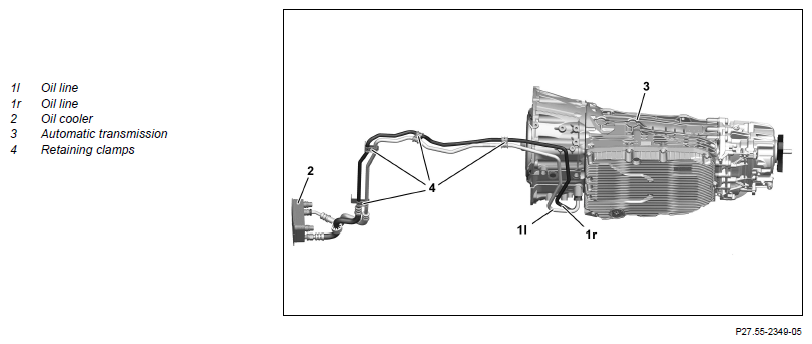

Shown on transmission 725.0 with engine 176 except code M005 (4MATIC)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove/install | |||
| 1 | Remove fan unit | AR20.40-P-5050MNL | |
| 2 | Thoroughly clean area around oil lines 1r) at oil cooler (2) | ||
| 3 | Lower rack-and-pinion steering | AR46.20-P-0600LF | |
| 4 | Remove retaining clamps (4) from oil lines (1l, 1r) | *BA27.55-P-1003-01D | |
| *BA27.55-P-1004-01D | |||
| *BA27.55-P-1005-01D | |||
| *BA27.55-P-1006-01D | |||
| 5 | Detach oil lines (1l, 1r) from automatic transmission (3) | AR27.10-P-0501-03LF | |
| Fig 1 | |||
| 6 | Seal openings in automatic transmission (3) using suitable stop plugs | Fig 1 | |
| 7 | Remove oil lines 1r) from oil cooler (2) | AR27.10-P-0501-03LF | |
| Fig 1 | |||
| 8 | Seal openings in oil cooler (2) using suitable stop plugs | Fig 1 | |
| 9 | Remove oil lines 1r) forwards | ||
| 10 | Install in the reverse order | ||
| 11 | Check oil level in automatic transmission (3) and correct | AR27.00-P-0270EWN | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Check automatic transmission (3) for proper operation and leak tightness | ||
| 13 | Install lower engine compartment paneling | AR61.20-P-1105LF |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1003-01D | Screw, oil cooler oil line to oil pan | Nm | 12 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1004-01D | Bolt, clamp to oil line | Nm | 8 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1005-01D | Bolt, clamp of oil cooler oil line to bracket | Nm | 8 |
OIL COOLING
| Number | Designation | Transmission 725.0 | |
|---|---|---|---|
| BA27.55-P-1006-01D | Screw, oil cooler oil line clamp to oil pan | Nm | 8 |
