Retrofit Support For Navigation Box - AN82.85-P-0020GQ

MODEL 166.0##/8## 1#

with CODE 510 (Audio 20 with CD changer)

without CODE 494 (US version)

without CODE 498 (Japanese version)

without CODE 512 (COMAND APS with DVD changer)

without CODE 523 (MB Audio 20 radio)

without CODE 527 (COMAND APS with single DVD drive (with navigation))

without CODE 830 (Vehicles for China, additional parts)

MODEL 166.0##/8## 1#

with CODE 523 (MB Audio 20 radio)

without CODE 494 (US version)

without CODE 498 (Japanese version)

without CODE 510 (Audio 20 with CD changer)

without CODE 512 (COMAND APS with DVD changer)

without CODE 527 (COMAND APS with single DVD drive (with navigation))

without CODE 830 (Vehicles for China, additional parts)

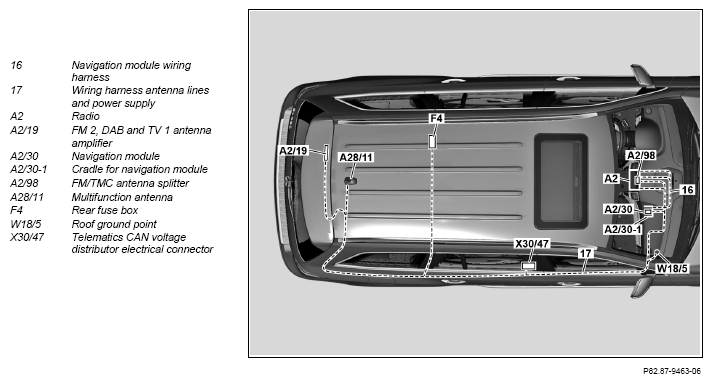

Shown on model 166.8

G12081808
NOTES Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
REMOVING Remove
1
REFER TO TESTING & REPAIR		 Remove radio (A2)   AR82.60-P-7502GQ
2
REFER TO TESTING & REPAIR		 Remove glove compartment   AR68.10-P-1400GQ
3
REFER TO TESTING & REPAIR		 Remove right door sills   AR68.30-P-4100GQ
4 Remove right C-pillar trim MODEL 166.### 1#
with CODE 510 (Audio 20 with CD changer)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 523 (MB Audio 20 radio)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)
MODEL 166.### 1#
with CODE 523 (MB Audio 20 radio)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 with CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)
REFER TO TESTING & REPAIR   MODEL 166.8## 1#
with CODE 510 (Audio 20 with CD changer)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 523 (MB Audio 20 radio)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)
MODEL 166.8## 1#
with CODE 523 (MB Audio 20 radio)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 with CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)		 AR68.30-P-4490GQX
REFER TO TESTING & REPAIR   MODEL 166.0## 1#
with CODE 510 (Audio 20 with CD changer)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 523 (MB Audio 20 radio)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)
without CODE Z05 (B5 armoring on special protection version)
MODEL 166.0## 1#
with CODE 523 (MB Audio 20 radio)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 with CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)
without CODE Z05 (B5 armoring on special protection version)		 AR68.30-P-4490GQ
REFER TO TESTING & REPAIR   MODEL 166.0## 1#
with CODE 510 (Audio 20 with CD changer)
with CODE Z05 (B5 armoring on special protection version)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 523 (MB Audio 20 radio)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)
MODEL 166.0## 1#
with CODE 523 (MB Audio 20 radio)
with CODE Z05 (B5 armoring on special protection version)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 with CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)		 AR68.30-P-4490GQS
5 Remove right D-pillar trim
REFER TO TESTING & REPAIR   MODEL 166.8## 1#
with CODE 510 (Audio 20 with CD changer)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 523 (MB Audio 20 radio)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)
MODEL 166.8## 1#
with CODE 523 (MB Audio 20 radio)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 with CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)		 AR68.30-P-4495GQX
REFER TO TESTING & REPAIR   MODEL 166.0 AR68.30-P-4495GQ
6 Remove side paneling in right side of trunk
REFER TO TESTING & REPAIR   MODEL 166.8 AR68.30-P-4800GQX
REFER TO TESTING & REPAIR   MODEL 166.0 AR68.30-P-4800GQ
7 Remove rear grab handle at roof
REFER TO TESTING & REPAIR     AR68.30-P-4330GQ
8 Remove luggage net tie-down eyes at rear on roof If installed.
9 Release headliner at rear and lower carefully NOTES
Do not kink headliner or bend excessively. Otherwise the headliner may crack and break.
10 Remove multifunction antenna (A28/11) or multifunction antenna mockup
REFER TO TESTING & REPAIR   MODEL 166.8
IMPORTANT The multifunction antenna (A28/11) or the multifunction antenna mockup is no longer required.		 AR82.70-P-8951GQ
11 Remove door lining from rear-end door
REFER TO TESTING & REPAIR     AR72.20-P-3520GQ
12 Release and fold back floor covering under rear seats
REFER TO TESTING & REPAIR   MODEL 166.8 AR68.20-P-4800GQX
REFER TO TESTING & REPAIR   MODEL 166.0## 1#
with CODE 510 (Audio 20 with CD changer)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 512 (COMAND APS with DVD changer)
without CODE 523 (MB Audio 20 radio)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)
MODEL 166.0## 1#
with CODE 523 (MB Audio 20 radio)
without CODE 494 (US version)
without CODE 498 (Japanese version)
without CODE 510 (Audio 20 with CD changer)
without CODE 512 (COMAND APS with DVD changer)
without CODE 527 (COMAND APS with single DVD drive (with navigation))
without CODE 830 (Vehicles for China, additional parts)
IMPORTANT Driver seat and left rear backrest do not have to be removed.		 AR68.20-P-4800GQ
13
REFER TO TESTING & REPAIR		 Disconnect ground line to battery   AR54.10-P-0003GZ
14
REFER TO TESTING & REPAIR		 Remove rear fuse box (F4) with connected lines from bracket   AR54.15-P-1261GQ
INSTALLING Install
15 Retrofit FM/TMC antenna splitter (A2/98)   AN82.85-P-0020-03GQ
16
REFER TO TESTING & REPAIR		 Install new multifunction antenna (A28/11) MODEL 166.8 AR82.70-P-8951GQ
17 Retrofit wiring harness for antenna lines and power supply (17) MODEL 166.8
SPECIAL TOOL Mounting wedge		 AN82.85-P-0020-05GQX
Figure
18 Retrofit navigation module wiring harness (16) MODEL 166.8 AN82.85-P-0020-06GQX
19 Retrofit cradle for navigation module (A2/30-1) MODEL 166.8 AN82.85-P-0020-01GQX
20 Install remaining parts
21 Insert navigation module (A2/30) into bracket for navigation module (A2/30-1) IMPORTANT The release pin for removing the navigation module (A2/30) is to be provided to the customer.
22 Enter special equipment in online vehicle data card via vehicle documentation system (VeDoc) IMPORTANTAdd  :
  • CODE 508 (Preinstallation for Becker® MAP PILOT)
  • CODE 509 (Becker® MAP PILOT)

23 Document retrofitted equipment through VeDoc IMPORTANT Attach note "Navigation box mount retrofitted as per AN82.85-P-0020GQ" under field organization texts to design group 82.
24
REFER TO SELF-DIAGNOSTIC SYSTEMS		 Connect diagnostic system and select vehicle via the vehicle identification number (VIN)   AD00.00-P-2000-04A
25 Perform variant coding with XENTRY using the software calibration number (SCN) IMPORTANT Code the following control units:
  • Audio 20
  • Instrument cluster

26
REFER TO SELF-DIAGNOSTIC SYSTEMS		 Disconnect diagnostic system   AD00.00-P-2000-04A
27 Perform function test IMPORTANT See operator's manual of navigation box.
Fig 1: Identifying Mounting Wedge (110 589 03 59 00)
G12081809Courtesy of MERCEDES-BENZ USA
PARTS ORDERING NOTE

Part no. Designation Quantity
KG 99 Navigation box package contents 1
