Remove/Install Trim At C-Pillar - AR68.30-P-4490GQ

MODEL 166 (except 166.8) without CODE Z05 (B5 armoring on special protection version)

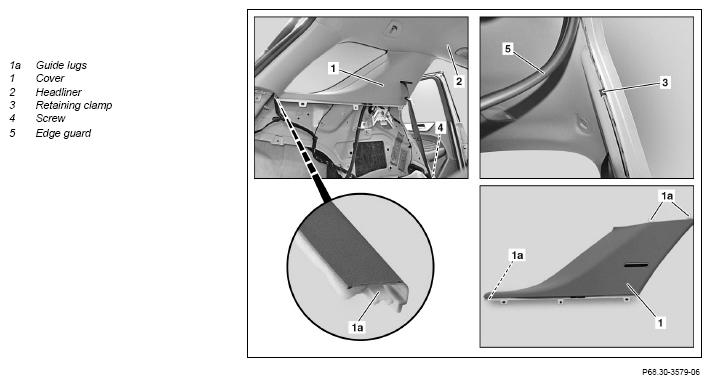

G12080046

	Remove/install
1	Remove side paneling in trunk		AR68.30-P-4800GQ
2	Remove edge guard (5) on paneling (1) from C-pillar
3	Remove bolt (4) from belt end fitting at bottom	Bolt, belt end fitting/seat belt lock, rear seat on body/seat	*BA91.40-P-1007-01R
4	Unclip paneling (1) on C-pillar from side wall	: Make sure that retaining clip (3) is seated properly. Mounting wedge	Figure
5	Remove paneling (1) on C-pillar from headliner (2) and remove paneling from D-pillar	: Install guide lugs (1a) in headliner (2) and in D-pillar paneling free of tension.
6	Remove paneling (1) from C-pillar	: Do not twist seat belt.
7	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation		MODEL 166
BA91.40-P-1007-01R	Bolt, belt end fitting/seat belt lock, rear seat on body/seat	Nm	35

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

G12080047
