Remove/Install Glove Compartment - AR68.10-P-1400GQ
MODEL 166
MODEL 292
Shown on model 166
Shown on MODEL 166 without CODE 814 (DVD changer)
| Remove/install | |||
| 1 | Remove right cover below instrument panel | AR68.10-P-1520GQ | |

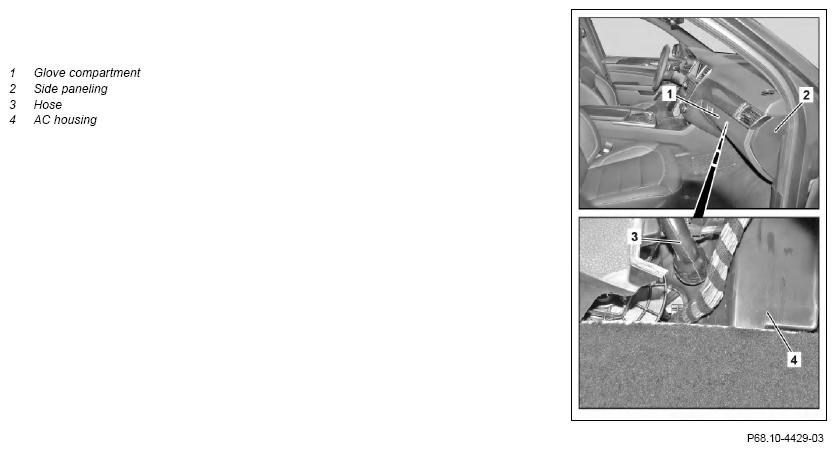

| 2 | Remove hose (3) from AC housing (4) | ||

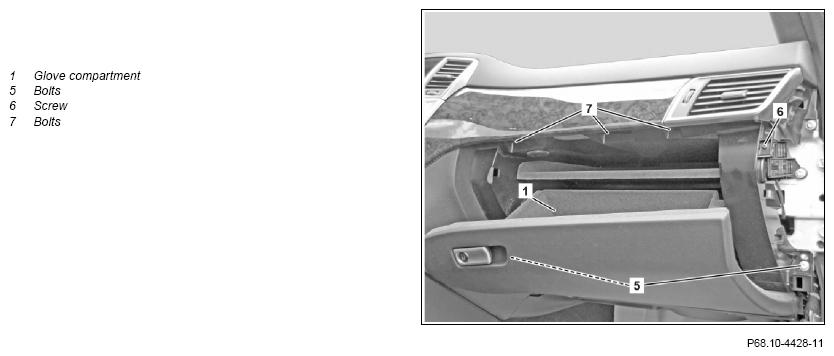

| 3 | Remove side paneling (2) from instrument panel | Fig 1 | |
| 4 | Remove screws (5) | ||
| 5 | Open glove compartment (1) | ||
| 6 | Move CD changer to lock position | Model 166 with code 814 (DVD changer) Model 292 with code 814 (DVD changer) |
|
| 7 | Unscrew bolt (6) at side | ||
| 8 | Unscrew bolts (7) in glove compartment (1) | ||
| 9 | Carefully pull out glove compartment (1) and lower until electrical connectors are accessible | ||
| 10 | Disconnect electrical connectors in glove compartment (1) | ||
| 11 | Unclip electrical line with suitable tool | ||
| 12 | Remove glove compartment (1) | ||
| 13 | Install in the reverse order | ||
| 14 | Check DVD changer for proper function | Model 166 with code 814 (DVD changer) Model 292 with code 814 (DVD changer) |
