Remove/Install Handle On Roof - AR68.30-P-4330GQ

MODEL 166

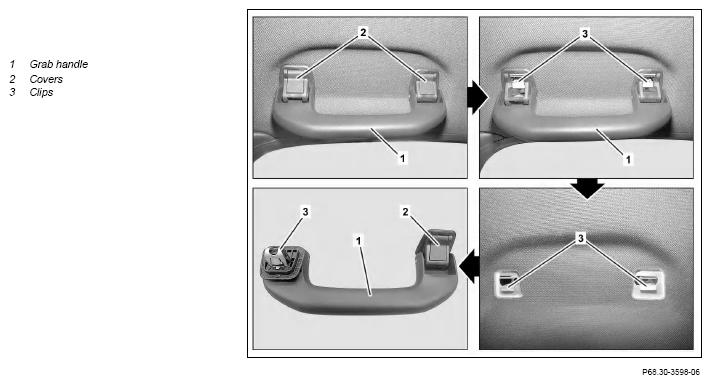

	Remove
1	Remove covers (2)
2	Press clips (3) together and remove grab handle (1)
3	Remove clips (3) from body
	Install
4	Clip clips (3) and covers (2) into grab handle (1)	Clip completely preassembled grab handle (1) into roof.
5	Clip grab handle (1) into roof
6	Completely fold up grab handle (1) and pull downward	Clips (3) should arrest audibly.
	Check
7	Check whether grab handle (1) is seated tightly at both mounting points	Grab handle (1) loose at one mounting point. ↓ Repeat installation.
