Remove/Install Transfer Case - AR28.10-P-0100MNE

Transmission 725.0 in model 213.088/089/288/289

with code M005 (Vehicles with 4MATIC/all-wheel drive)

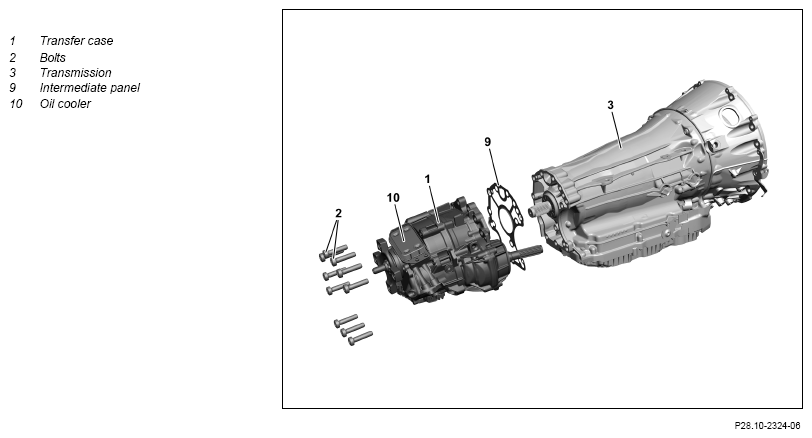

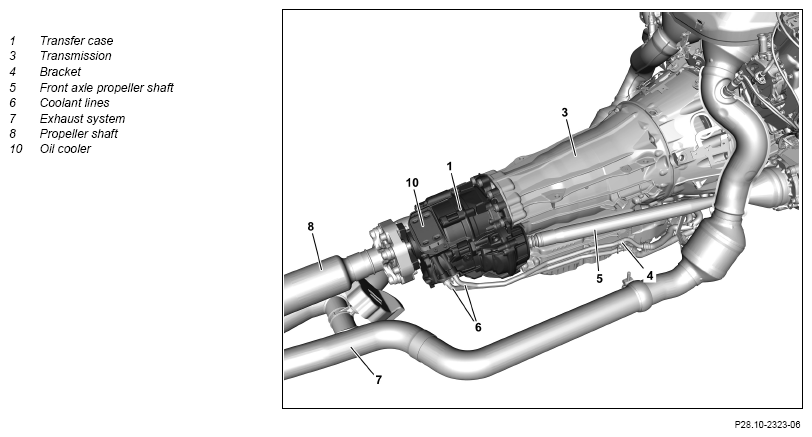

Fig 1: Transfer Case Components Location - Transmission 725.0 In Model 213.088/089/288/289 With Code M005

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Shift transmission (3) into neutral position
2	Release parking brake
3	Secure vehicle on vehicle lift	Only release vehicle after leak test.	AR00.60-P-0100CW
4	Drain coolant from low-temperature circuit	: Install center and rear sections of lower engine compartment paneling only after a leak test.	AR09.41-P-6834MNE
5	Remove the exhaust system		AR49.10-P-7142MNE
6	Remove rear engine mount		AR22.10-P-1160MNE
7	Remove heat shield behind transmission (3)
8	Remove propeller shaft on front axle (5) from output flange of transfer case (1), slide to the rear and prop up		AR41.10-P-0040-01LW
	Drift for releasing the fitting sleeves in the flexible couplings		WF58.50-P-4110-01A
		Flexible coupling to transmission/rear axle differential or propeller shaft	*BA41.10-P-1001-01M
		Counterholder	Fig 3
9	Remove bolt and take off holder (4)	Bolt, coolant line to transfer case/bracket at side on automatic transmission	*BA28.10-P-1009-01G
10	Unscrew bolt from holder of coolant lines (6) on transfer case (1)	Bolt, coolant line to transfer case/bracket at side on automatic transmission	*BA28.10-P-1009-01G
11	Remove coolant lines (6) from transfer case (1) and seal openings using suitable plugs	: Replace seals. Record plug	Fig 4
12	Release and disconnect electrical connector from transfer case control unit
13	Release and disconnect electrical connector from transfer case temperature sensor
14	Lower transmission (3) until all bolts (2) around the circumference of the transfer case (1) are accessible
15	Support transfer case (2) 000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
16	Unscrew bolts (2) and remove transfer case (1)	The aid of a second person is required for disconnection and connection at the flange of the front axle propeller shaft (5). Bolt, transfer case to automatic transmission	*BA28.10-P-1001-01G
17	Remove transfer case control unit	When replacing transfer case (1).	AR28.19-P-1003MNE
18	Remove oil cooler (10)	When replacing transfer case (1).	AR28.55-P-1000MNE
19	Remove transfer case temperature sensor	When replacing transfer case (1).	AR28.19-P-1007MNE
20	Check intermediate panel (9) for damage	In the case of complaints. ↓ Replace intermediate panel (9).
21	Install in the reverse order
22	Check and correct transmission oil level		AR28.10-P-0100-06MNE
		Transfer case oil	*BF28.10-P-1001-01F
		Oil level sight glass to transfer case	*BA28.10-P-1007-01G
		Assembly cleaner	*BR00.45-Z-1028-04A
		Hand pump	Fig 2
23	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Perform engine test run and check transfer case (1) for proper operation and leak tightness	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
24	Install center and rear sections of lower engine compartment paneling		AR61.20-P-1105LWE
25	Disconnect vehicle from vehicle lift		AR00.60-P-0100CW

Fig 2: Identifying Hand Pump (210 589 00 71 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Counterholder (176 589 00 40 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
