Remove/Install Exhaust - AR49.10-P-7142MNE
Engine 177 in model 213
| Risk of burn injuries , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove side underfloor paneling | AR61.30-P-1001LWE | |
| 2 | Remove rear reinforcement | *BA61.10-P-1004-01L | |
| 3 | Remove rear diagonal struts | *BA61.10-P-1008-01L | |

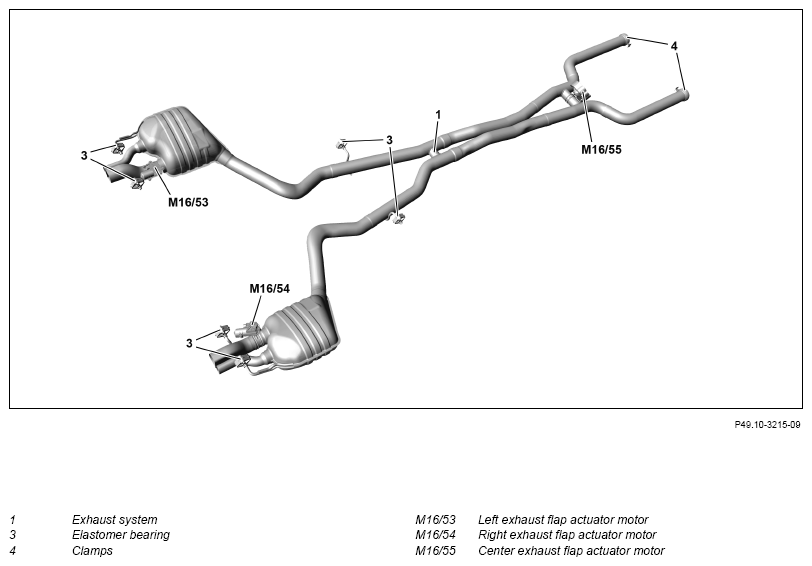

| 4 | Release and disconnect electrical connector of left exhaust gas flap actuator motor (M16/53) | ||
| 5 | Release and disconnect electrical connector of right exhaust gas flap actuator motor (M16/54) | ||
| 6 | Release and disconnect electrical connector of center exhaust gas flap actuator motor (M16/55) | ||
| 7 | Support exhaust system (1) | ||
| 8 | Remove clamps (4) | *BA49.10-P-1005-02E | |
| 9 | Remove elastomer bearings (3) from exhaust system (1) | ||
| 10 | Remove exhaust system (1) downwards | ||
| 11 | Remove combustion and corrosion residue at separating points and flange connections | ||
| 12 | Check elastomer bearings (3) for damage | In case of a complaint ↓ Replace elastomer bearings (3). |
|
| 13 | Install in the reverse order | ||
| 14 | Check installation position and unobstructed movement of exhaust system (1) | In case of a complaint ↓ Re-align exhaust system (1). |
|
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 15 | Perform engine test run to test exhaust system (1) function and check for leak tightness |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 213 | |
|---|---|---|---|
| BA49.10-P-1005-02E | Clamp, front exhaust system to center exhaust system | Nm | 35 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA61.10-P-1004-01L | Bolt, rear reinforcement to frame floor assembly | Nm | 24 |
FRAME FLOOR ASSEMBLY
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA61.10-P-1008-01L | Bolt, rear diagonal strut to spare wheel well/body | Nm | 50 |
