Remove/Install Transfer Case Temperature Sensor - AR28.19-P-1007MNE

Model 213 with engine 177 with transmission 725.0

with code M005 (Vehicles with 4MATIC/all-wheel drive)

MODIFICATION NOTES

27.10.2017

Temperature sensor to transfer case

BA28.10-P-1012-01G

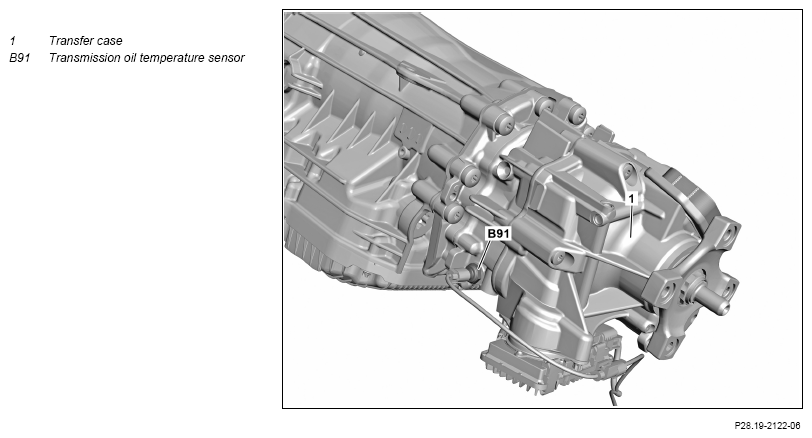

Fig 1: Transfer Case/Transmission Temperature Sensor Components Location - Model 213 With Engine 177 With Transmission 725.0; With Code M005

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove rear engine mount.		AR22.10-P-1160MNE
2	Drain transmission oil from transfer case (1).	Model 213 with engine 177 with transmission 725.0 with code 800 (Model year 2020) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 213 with engine 177 with transmission 725.0 with code 807 (Model year 2017) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 213 with engine 177 with transmission 725.0 with code 808 (Model year 2018) with code M005 (Vehicles with 4MATIC/all-wheel drive) Model 213 with engine 177 with transmission 725.0 with code 809 (Model year 2019) with code M005 (Vehicles with 4MATIC/all-wheel drive)	AP28.00-P-2801B
		Model 213 with engine 177 with transmission 725.0 with code M005 (Vehicles with 4MATIC/all-wheel drive) except code 800 (Model year 2020) except code 807 (Model year 2017) except code 808 (Model year 2018) except code 809 (Model year 2019)	AP28.00-P-2801C
3	Release and disconnect electrical connector of transmission oil temperature sensor (B91).
4	Remove transmission oil temperature sensor (B91) and seal opening with a suitable stop plug.	Temperature sensor to transfer case	*BA28.10-P-1012-01G
		Record plug	Fig 2
5	Install in the reverse order

COMPLETE TRANSFER CASE

Number	Designation		Model 205, 213, 217, 218, 222, 223, 238, 253, 257, 290 with transmission 725.0/1 with code M005 (Vehicles with 4MATIC/all-wheel drive)
BA28.10-P-1012-01G	Temperature sensor to transfer case	Nm	30

Fig 2: Identifying Record Plug (129 589 00 91 00)

Courtesy of MERCEDES-BENZ USA
