Remove/Install Rear Engine Mount - AR22.10-P-1160MNE

Engine 177 in model 213

with code M005 (4MATIC)

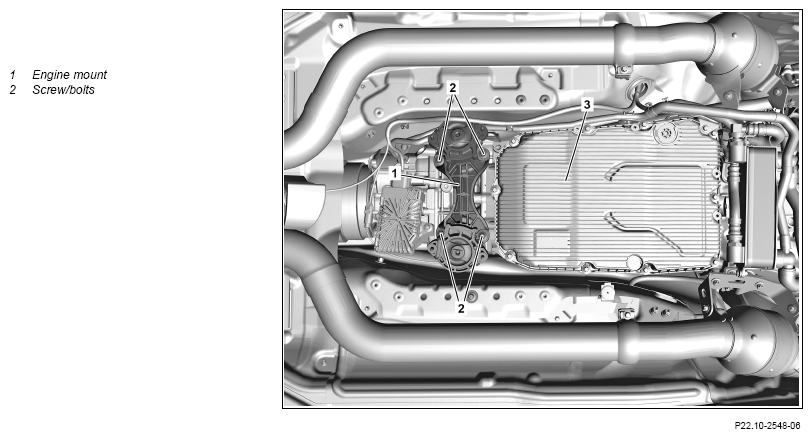

Fig 1: Rear Engine Mount Component Location - Engine 177 In Model 213

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Remove/install
1	Remove engine support		AR22.10-P-4360MNE
2	Remove screw/bolts (2) and remove engine mount (1) downwards	Bolt, rear engine mount to bracket/transmission	*BA22.10-P-1003-03N
3	Install in the reverse order

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			Model 213 with engine 177
BA22.10-P-1003-03N	Bolt, rear engine mount to bracket/transmission	M8	Nm	-
		M10	Nm	50
