Remove/Install Air Spring - AR32.22-P-1500MNE
Model 213.064/088/089/264/288/289 with code 489 (AIRMATIC Dual Control/semi-active air suspension)

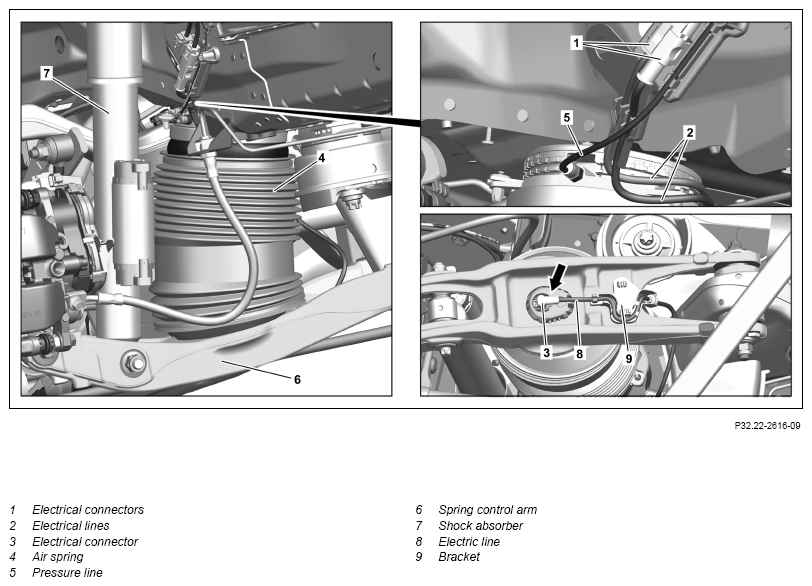

Fig 1: Air Spring Components Location - Model 213.064/088/089/264/288/289 With Code 489 (Shown On Left Air Spring (4))
Shown on model 213.064 on left air spring (4)
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Notes on AIRmatic | AH32.22-P-1000-02LW | ||
| Remove | |||
| 1 | Remove rear wheel | AR40.10-P-1102A | |
| 2 | Relieve pressure from air spring (4) using vehicle diagnosis system | ||
| AD00.00-P-2000-04B | |||
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 4 | Release fender liner at rear in area of electrical connectors (1) and push to one side | AR88.10-P-1400LWE | |
| 5 | Separate electrical connections (1) | ||
| 6 | Unhook electric lines (2) from holder and place to one side | ||
| 7 | Remove pressure line (5) from air spring (4) and seal openings with suitable stop plugs | Fig 4 | |
| 8 | Remove shock absorber (7) from spring link (6) and push outwards in lower area | AR32.25-P-0110LW | |
| 9 | Disconnect electrical connector (3) | ||
| 10 | Unhook electrical line (8) from holder (9) | ||
| 11 | Carefully pull air spring (4) downwards by its upper plastic frame until the air spring (4) releases from the retaining clip | ||
| 12 | Remove air spring (4) downwards | ||
| 13 | Remove retaining clip | AR32.22-P-1500-02EW | |
| Check | |||
| 14 | Check condition of air spring (4) | Otherwise the movement of the spring will damage the spring bellows on the inside. If a problem arises ↓ Replace air spring (4). |
|
| Install | |||
| 15 | Install new retaining clip | AR32.22-P-1500-02EW | |
| 16 | Position the air spring (4) with the air spring centering (arrow) onto the spring link (6) | ||
| 17 | Position air spring (4) on retaining clip | Otherwise the air spring (4) may be damaged. |
|
| 18 | Hook electrical line (8) into holder (9) | ||
| 19 | Connect electrical connection (3) | ||
| 20 | Mount shock absorber (7) onto spring link (6) | AR32.25-P-0110LW | |
| 21 | Remove all stop plugs | ||
| 22 | Mount pressure line (5) to air spring (4) | Otherwise, leaks will occur. |
|
| *BA32.22-P-1006-03H | |||
| Fig 5 | |||
| Fig 2 | |||
| If the thread is damaged ↓ Repair connection for pressure line (5). |
AR32.22-P-2001-01LW | ||
| Fig 3 | |||
| 23 | Hook electric lines (2) into holder | ||
| 24 | Connect electrical connections (1) | ||
| 25 | Install fender liner at rear | AR88.10-P-1400LWE | |
| 26 | Remount the rear wheel | AR40.10-P-1102A | |
| 27 | Build up pressure in air spring (4) using vehicle diagnosis system | ||
| AD00.00-P-2000-04B | |||
| 28 | Check AIRmatic for leaks | AR32.22-P-8100LW |
AIR SUSPENSION
| Number | Designation | Model 213 | ||
|---|---|---|---|---|
| BA32.22-P-1006-03H | Pressure line to air suspension | Front axle | Nm | 2 |
| Rear axle | Nm | 3, 5 | ||
