Remove/Install Wheel And Tire Assemblies - AR40.10-P-1102A

Model 205, 206, 213, 217, 222, 223, 238, 253, 257, 290, 293

MODIFICATION NOTES

08.04.2021 Installing differently coated wheel bolts on one wheel and tire assembly (1) is not permissible. Operation step 4.
G13746324Courtesy of MERCEDES-BENZ USA
G13746325Courtesy of MERCEDES-BENZ USA
G13746326Courtesy of MERCEDES-BENZ USA
  Information on tires/rims   AH40.10-P-9411-01A
  Notes on handling, transport and storage of ceramic brake disks   AH42.10-P-9406-13A
  Notes on handling, transport and storage of composite brake disks   AH42.10-P-9406-12LF
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVING Remove
1 Raise vehicle.   AR00.60-P-1006A
2.1 Remove wheel trim. If installed.
2.2 Remove screw-on AMG hub covers in center lock design. If installed.
    SPECIAL TOOL Socket wrench bit Fig 2
3 Remove wheel and tire assemblies (1). NOTES
Model 205, 206, 213, 217, 222, 223, 253, 290, 293

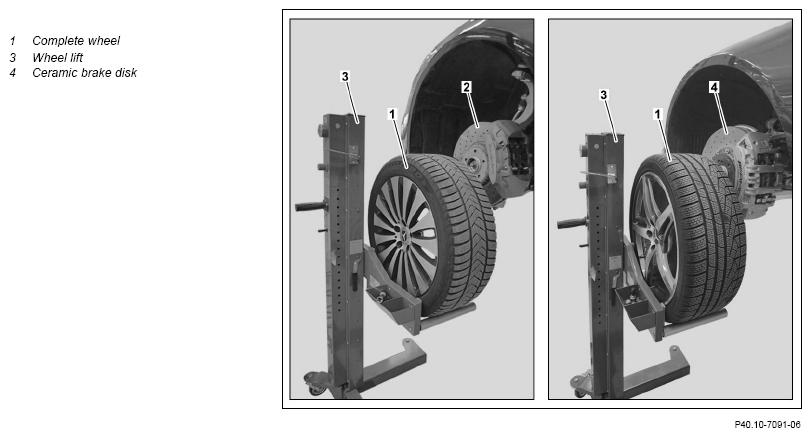

with code B07 (AMG - ceramic brake system) For vehicles with ceramic brake disk (4), always use a wheel lift dolly (3). Otherwise, ceramic brake disk (4) will be damaged.
IMPORTANTOnly for GERMANY ONLY
Use a wheel lift dolly (3) with a rim size from 17".
IMPORTANTCommercially available devices/tools
Wheel lift
SPECIAL TOOL Socket wrench		 Fig 1
INSPECT Check
4 Check the wheel bolt connection components. NOTES
Installing differently coated wheel bolts on one wheel and tire assembly (1) is not permissible. Otherwise braking vibrations will occur.
IMPORTANT Before mounting a wheel and tire assembly (1), remove minor soiling using a rag.
Apply heat-resistant lubricating paste sufficiently on wheel hub. Paste, hot lubrication 1 kg, DBL 6879.20 If problems exist,
clean wheel bolt connection components and protect against corrosion.		 *BR00.45-Z-1005-06A
  AR40.10-P-1100-02A
5 Check tires of wheel and tire assemblies (1) for wear and damage.
REFER TO MAINTENANCE   Model 206, 223 AP40.10-P-4051A
REFER TO MAINTENANCE   Model 205, 213, 217, 222, 238, 253, 257, 290, 293 AP40.10-P-4051EW
6 Check manufacturing date of tires on front and rear axle. Model 222, 223
with code Z07 (B7 armoring on special protection version)		 AR40.10-P-0002-01LF
INSTALLING Install
7 Mount wheel and tire assemblies (1). NOTES
Model 205, 206, 213, 217, 222, 223, 253, 290, 293
with code B07 (AMG - ceramic brake system) For vehicles with ceramic brake disk (4), always use a wheel lift dolly (3). Otherwise, ceramic brake disk (4) will be damaged.
IMPORTANTOnly for GERMANY ONLY
Use a wheel lift dolly (3) with a rim size from 17".
IMPORTANTCommercially available devices/tools
Wheel lift
IMPORTANTCommercially available devices/tools
Torsion bar

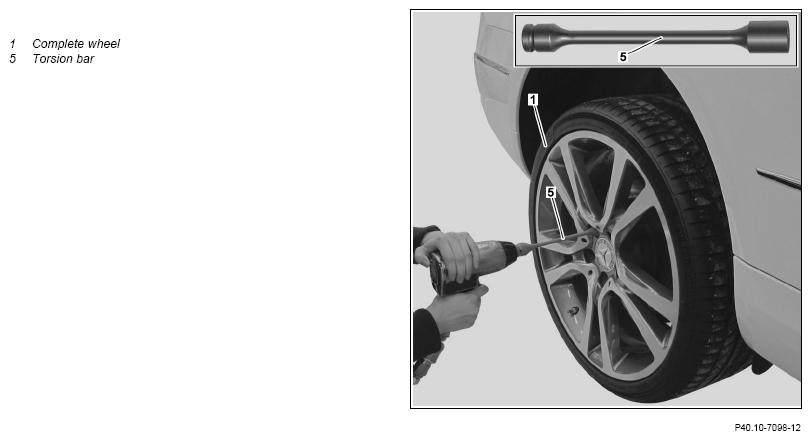

IMPORTANT Use torsion bar (5) for 2nd stage (initial torque).

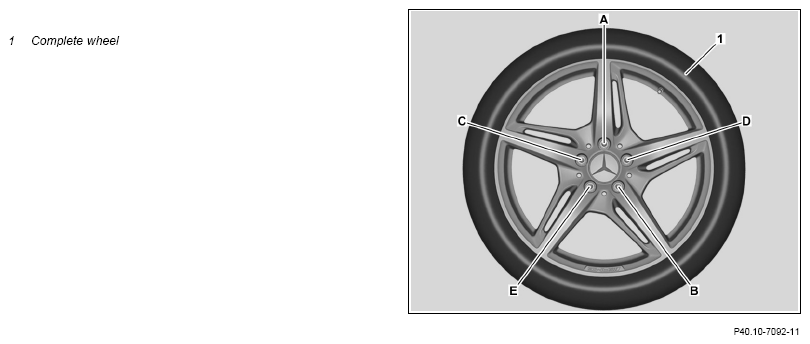

IMPORTANT Observe tightening sequence (A, B, C, D, E) and the multistage tightening torque of the wheel bolts.
HTORQUE SPECIFICATION Model 205, 206, 217, 253, 293
Model 222
except code Z07 (B7 armoring on special protection version)
Model 222
with code Z07 (B7 armoring on special protection version)
Model 223
except code Z07 (B7 armoring on special protection version)
Model 223
with code Z07 (B7 armoring on special protection version) Wheel bolt		 *BA40.10-P-1001-01P
TORQUE SPECIFICATION Model 213Wheel bolt to light alloy wheel *BA40.10-P-1002-01F
TORQUE SPECIFICATION Model 213Wheel bolt to steel wheel *BA40.10-P-1001-01F
TORQUE SPECIFICATION Model 238Wheel bolt to light alloy wheel *BA40.10-P-1001-01N
TORQUE SPECIFICATION Model 257, 290Wheel bolt *BA40.10-P-1001-01O
SPECIAL TOOL Socket wrench Fig 1
8.1 Mount wheel trim. If installed. NOTES
Check for firm seating of wheel trim on rim and for correct positioning of wheel trim relative to valve.
Otherwise, the wheel trim will be lost or the valve will be damaged.
8.2 Mount screw-on AMG hub covers in center lock design If installed.
TORQUE SPECIFICATION Model 205, 217, 253
Model 222
except code Z07 (B7 armoring on special protection version)
Model 222
with code Z07 (B7 armoring on special protection version) Model 223
except code Z07 (B7 armoring on special protection version)
Model 223
with code Z07 (B7 armoring on special protection version) Aluminum wheel hub cover to light alloy wheel		 *BA40.10-P-1002-01P
TORQUE SPECIFICATION Model 213Aluminum wheel hub cover to light alloy wheel *BA40.10-P-1003-01F
TORQUE SPECIFICATION Model 257
Model 290Aluminum wheel hub cover to light alloy wheel		 *BA40.10-P-1002-01O
SPECIAL TOOL Socket wrench bit Fig 2
9 Check tire pressure on wheel and tire assemblies (1).
REFER TO MAINTENANCE   Model 206, 223 AP40.15-P-4061D
REFER TO MAINTENANCE   Model 205, 213, 217, 222, 238, 253, 257, 290, 293
If there is a problem,
↓
correct tire pressure on wheel and tire assemblies (1).		 AP40.15-P-4061A
10 Lower vehicle.   AR00.60-P-1006A
11 Check maximum speed limitation in instrument cluster, correct if necessary.
Notice  Limited maximum speed for winter tires with speed index V IMPORTANT Note tire speed rating. If the maximum permissible speed of an M+S tire is lower than the maximum permissible speed of the vehicle.
Apply corresponding adhesive label in the driver's visual field.		 AH40.10-P-1020-03A
WHEELS

Number Designation Model 213
BA40.10-P-1001-01F Wheel bolt to steel wheel Stage 1 (position by hand) Nm -
Stage 2 (initial torque) Nm 75
Stage 3 Nm 130
WHEELS

Number Designation Model 238
BA40.10-P-1001-01N Wheel bolt to light alloy wheel Stage 1 (position by hand) Nm -
Stage 2 (initial torque) Nm 75
Stage 3 Nm 150
WHEELS

Number Designation Model 257 Model 290
BA40.10-P-1001-01O Wheel bolt Stage 1 (position by hand) Nm - -
Stage 2 (initial torque) Nm 75 75
Stage 3 Nm 150 150
WHEELS

Number Designation Model 206 Model 205
BA40.10-P-1001-01P Wheel bolt Stage 1 (position by hand) Nm - -
Stage 2 (initial torque) Nm 75 75
Stage 3 Nm 150 130
WHEELS

Number Designation Model 217 Model 222 except code Z07 (B7 armoring on special protection version)
BA40.10-P-1001-01P Wheel bolt Stage 1 (position by hand) Nm - -
Stage 2 (initial torque) Nm 75 75
Stage 3 Nm 150 150
WHEELS

Number Designation Model 222
with code Z07 (B7 armoring on special protection version)		 Model 223 except code Z07
BA40.10-P-1001-01P Wheel bolt Stage 1 (position by hand) Nm - -
Stage 2 (initial torque) Nm 75 75
Stage 3 Nm 180 150
WHEELS

Number Designation Model 223 with code Z07 Model 253
BA40.10-P-1001-01P Wheel bolt Stage 1 (position by hand) Nm - -
Stage 2 (initial torque) Nm 75 75
Stage 3 Nm 180 150
WHEELS

Number Designation Model 293
BA40.10-P-1001-01P Wheel bolt Stage 1 (position by hand) Nm -
Stage 2 (initial torque) Nm 75
Stage 3 Nm 150
WHEELS

Number Designation Model 213
BA40.10-P-1002-01F Wheel bolt to light alloy wheel Stage 1 (position by hand) Nm -
Stage 2 (initial torque) Nm 75
Stage 3 Nm 150
WHEELS

Number Designation Model 257 Model 290
BA40.10-P-1002-01O Aluminum wheel hub cover to light alloy wheel Nm 27 27
WHEELS

Number Designation Model 205 Model 217
BA40.10-P-1002-01P Aluminum wheel hub cover to light alloy wheel Nm 27 27
WHEELS

Number Designation Model 222 except code Z07 (B7 armoring on special protection version) Model 222 with code Z07 (B7 armoring on special protection version)
BA40.10-P-1002-01P Aluminum wheel hub cover to light alloy wheel Nm 27 27
WHEELS

Number Designation Model 223 except code Z07 Model 223 with code Z07
BA40.10-P-1002-01P Aluminum wheel hub cover to light alloy wheel Nm 27 -
WHEELS

Number Designation Model 253
BA40.10-P-1002-01P Aluminum wheel hub cover to light alloy wheel Nm 27
WHEELS

Number Designation Model 213
BA40.10-P-1003-01F Aluminum wheel hub cover to light alloy wheel Nm 27
Fig 1: Identifying Socket Wrench (199 589 01 09 00)
G07414477Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Socket Wrench Bit (222 589 00 09 00)
G12618469Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1005-06A Paste, hot lubrication 1 kg, DBL 6879.20 A 000 989 76 51
