Replacing Retaining Clip - AR32.22-P-1500-02EW

Model 205

with code 489 (AIRMATIC Dual Control/semi-active air suspension)

Model 206

with code 480 (Self-levelling suspension)

Model 212.0/1, 218

with code 488 (Steel/air suspension)

Model 212.0/1, 218

with code 489 (AIRMATIC Dual Control/semi-active air suspension)

Model 212.2

Model 213.0/1

with code 489 (AIRMATIC Dual Control/semi-active air suspension)

Model 213.2

Model 238

with code 489 (AIR BODY CONTROL)

Model 253

with code 489 (AIR BODY CONTROL)

Model 293

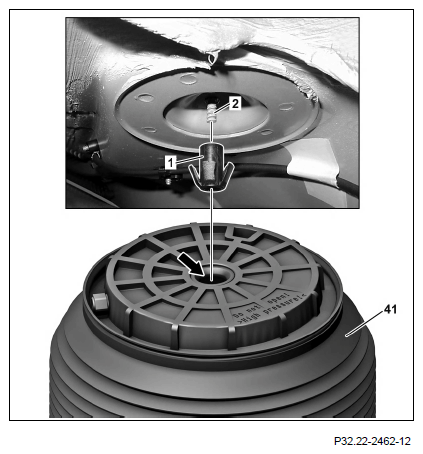

1. Remove fragments of the retaining clip (1) from the centering hole (arrow) in the air spring (41).
2. Remove fragments of the retaining clip (1) from the pin (2).
3. Tap a new retaining clip (1) far enough onto the pin (2) using a plastic mallet until the retaining clip (1) lies flat on the frame floor.
