Remove/Install Fender Liner In Rear Fender - AR88.10-P-1400LWE
Model 213, 238

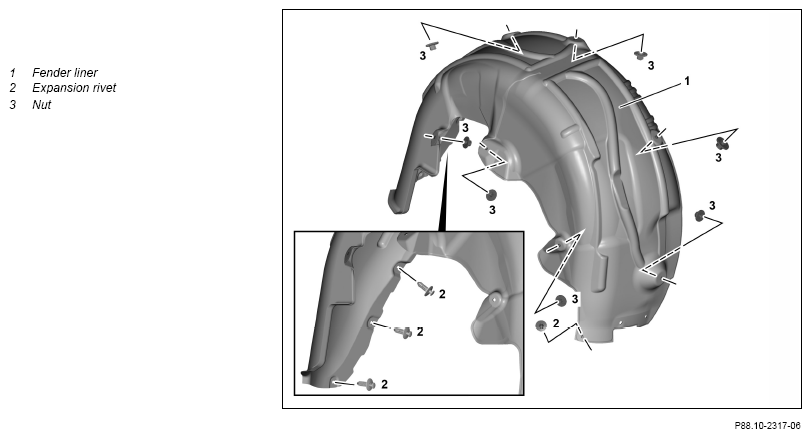

Shown on fender liner (1) on model 213
| Remove/install | |||
| 1 | Raise vehicle | AR00.60-P-1002LWG | |
| 2 | Remove expansion rivets (2) | ||
| 3 | Unscrew nuts (3) | ||
| 4 | Pull outer edge of fender liner (1) toward inside out of wheel arch lip and remove fender liner (1) | ||
| 5 | Install in the reverse order |
