Remove/Install Rear Shock Absorber - AR32.25-P-0110LW

Model 205

Model 213

Model 253

Model 293

Courtesy of MERCEDES-BENZ USA

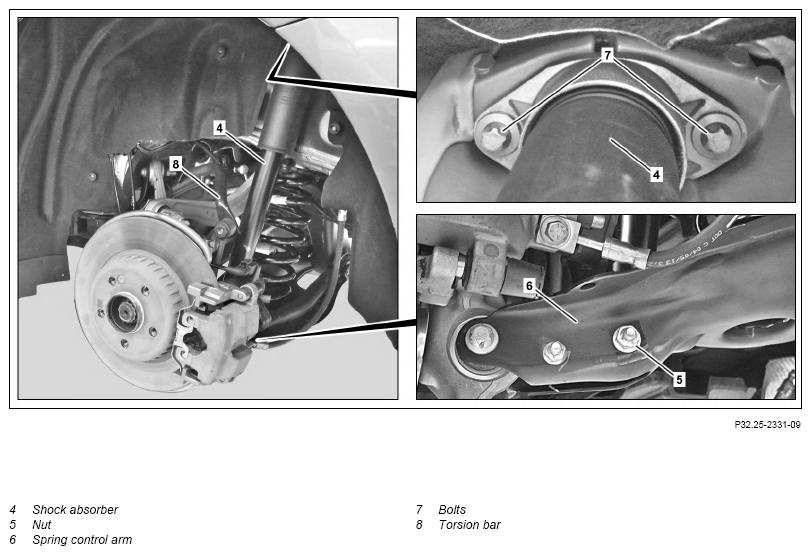

Shown on the left side of vehicle on model 205 except code 489 (AIRMATIC)

Courtesy of MERCEDES-BENZ USA

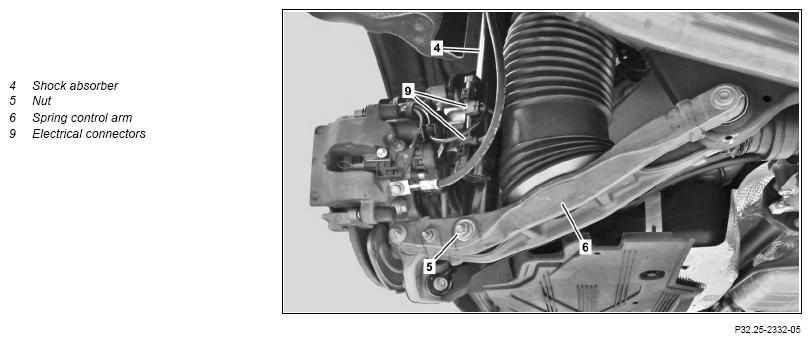

Shown on the left side of vehicle on model 205 with code 489 (AIRMATIC)

Courtesy of MERCEDES-BENZ USA

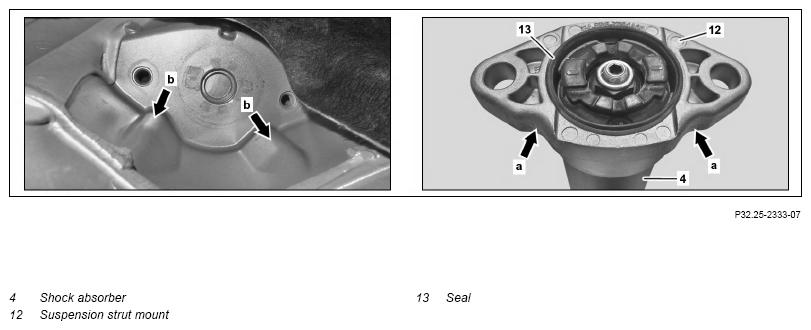

Shown on model 205 except code 489 (AIRmatic)

Courtesy of MERCEDES-BENZ USA

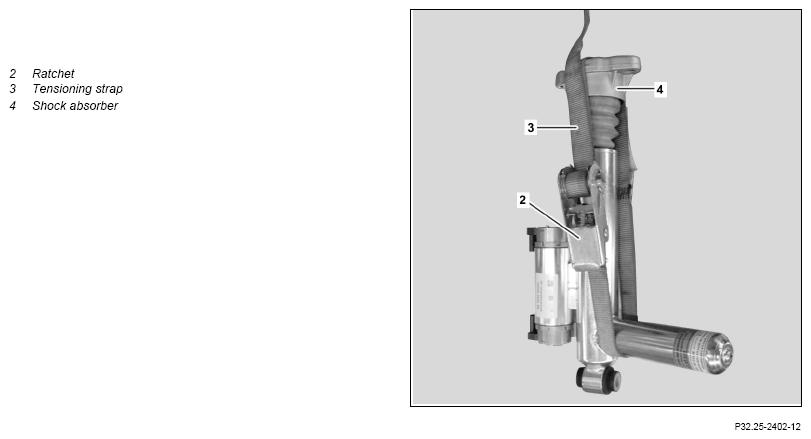

Shown on model 213.2 with code 489 (AIRMATIC)

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Note on calculation of tightening torque when using insertion or socket tools with various effective lengths		AH00.00-P-0015-01CW
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Notes on level control	Model 213.2 except code 489 (AIRMATIC) Model 293	AH32.22-P-1001-02LWT
	Notes on AIRmatic	Model 205 with code 489 (AIRMATIC) Model 213 with code 489 (AIRMATIC) Model 253 with code 489 (AIR BODY CONTROL)	AH32.22-P-1000-02LW
	Remove/install
1	Remove rear wheel.		AR40.10-P-1102A
2	Remove cover from spring link (6).
3	Detach fender liner in rear fender in area of shock absorber.	Model 205, 253, 293	AR88.10-P-1400LW
4	Disconnect electrical connectors (9) and place lines to one side.	If electrically adjustable shock absorbers (4) are installed.
5	Prop up the spring link (6) using a suitable hydraulic lifting device.
6	Remove nut (5) and remove screw from spring H Self-locking nut, shock absorber to spring link (6). control arm		*BA32.25-P-1001-03P
7	Remove bolts_(7).	Bolt, shock absorber to body	*BA32.25-P-1002-03P
8.1	Press shock absorber (4) together and remove upwards.	Model 205, 253, 293 Model 213.0/1 Model 213.2 except code 489 (AIRMATIC) Ensure that the cutouts (arrows a) in suspension strut mount (12) match with the elevations (arrows b) in the body.
8.2	Press shock absorber (4) together, as shown, using tensioning strap (3) and remove upwards.	Model 213.2 with code 489 (AIRMATIC) Make sure that the surface of the shock absorber (4) is not damaged by the ratchet (2) of the tensioning strap (3). Otherwise the shock absorber (4) must not be reused. Ensure that the cutouts (arrows a) in suspension strut mount (12) match with the elevations (arrows b) in the body.
	Check
9	Check shock absorber (4) and seal (13) for damage and leakage.	Model 205, 213.1/2, 253, 293 Model 213.0 with code 489 (AIRMATIC) The shock absorber (4) is only available as an assembly with the suspension strut mount (12). If problems exist, ↓ Replace shock absorber (4) with suspension strut mount (12).
10	Check suspension strut mount (12).	Model 213 except code 489 (AIRMATIC) If problems exist, ↓ replace suspension strut mount (12). Use the socket set to remove the standard nut. Replace self-locking nut. Use a commercially available long Allen key with a size of 5 mm and the deep socket with size of 16 mm from the socket set.
		Nut, support bushing to shock absorber (piston rod)	*BA32.25-P-1003-03P
		Socket set	Fig 1
		Set of socket wrench bits	Fig 2
11	Install in the reverse order.

Fig 1: Identifying Socket Set (001 589 03 16 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Set Of Socket Wrench Bits (454 589 01 99 00)

Courtesy of MERCEDES-BENZ USA
