Remove/Install Right Oil Lines From Dual-Clutch Transmission To Connecting Point - AR27.55-P-0613MNB
Transmission 700.4 In Model 190
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Topical note | General information on repair work on transmission | AH27.00-S-1000-01PS | |
| Remove/install | |||
| 1 | Remove exhaust system. | Transmission 700.4 in model 190.379/380/477/478/479/480 | AR49.10-P-7142MNC |
| Transmission 700.4 in model 190.377/378/381 | AR49.10-P-7142MNB | ||
| 2 | Release and disconnect electrical connector from oil pressure switch (4). | ||
| 3 | Remove brackets (2). | ||
| 4 | Open connecting points (3) and seal openings with suitable stop plugs. | AR27.10-P-0501-03LF | |

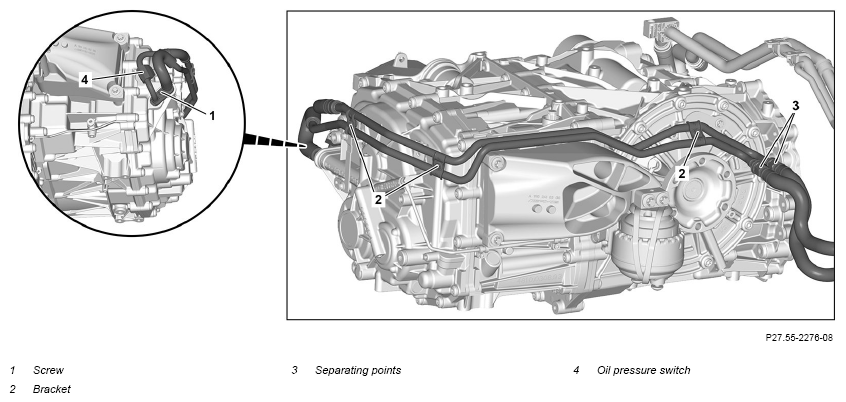

| Fig 1 | |||
| 5 | Remove screw (1). | ||
| 6 | Remove oil lines and seal with suitable stop plugs. | ||
| Fig 1 | |||
| 7 | Install in the reverse order. | ||
| Check | |||
| 8 | Check and correct oil level in automatic transmission. | ||
| AP27.00-P-2706RQ | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Perform engine test run, check oil lines for leak tightness. | ||
| 10 | Install rear underfloor paneling. | AR61.30-P-1001RG |
