Underbody Paneling Removal And Installation - Ar61.30-P-1001RG

Model 190

Shown on model 190.377 on right side of vehicle

Courtesy of MERCEDES-BENZ USA

Shown on model 190 with code M030 (GT R version) on right side of vehicle)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Shown on model 190.377

Shown on model 190 with code M030 (GT R version) except code PAP (Mercedes-AMG GT R PRO)

Courtesy of MERCEDES-BENZ USA

Shown on model 190 with code M016 (performance-enhanced engine) with code PAP (Mercedes-AMG GT R PRO)

Courtesy of MERCEDES-BENZ USA

Shown on model 190 with code M032 (Black Series version)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Lift vehicle with lifting platform.		AR00.60-P-1006A
2	Remove nuts (2) and remove side underfloor paneling (1) on left and/or right.	Number of nuts (2) varies depending on the vehicle equipment.

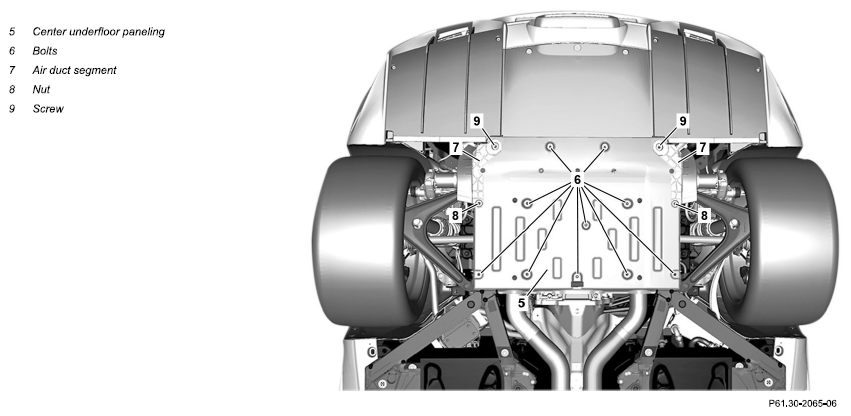

3	Remove the nuts (8), unscrew the screws (9) and remove the air duct segments (7) on the side.	Number of screws (9) varies depending on vehicle equipment.
4	Unscrew bolts (6) and remove center underfloor paneling (5).	Model 190 except code M032 (Black Series version) except code PAP (Mercedes-AMG GT R PRO)
5.1	Unscrew bolts (4) and remove rear underfloor paneling (3).	Model 190 except code M030 (GT R version) except code M032 (Black Series version) Number of bolts (4) varies depending on the vehicle equipment.
5.2	Remove the rear diffusor.	Model 190 with code M030 (GT R version) except code M032 (Black Series version) Model 190 with code M032 (Black Series version) Model 190 with code M030 (GT R version) except code M032 (Black Series version)	AR88.30-P-0530RG
		Model 190 with code M032 (Black Series version)	AR88.30-P-0530RGB

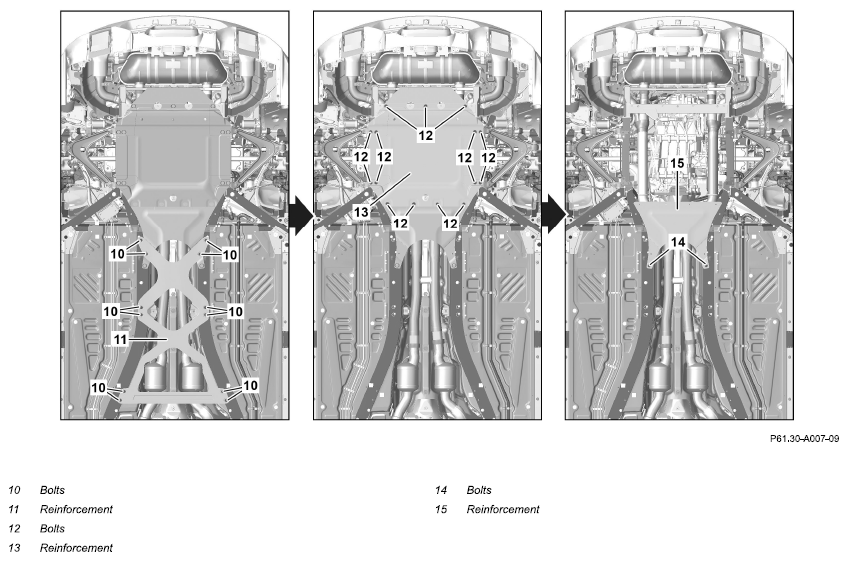

6	Unscrew screws (10) and remove stiffener (11).	Model 190 with code M016 (Uprated engine) Model 190 with code M032 (Black Series version) Model 190 with code PAP (Mercedes-AMG GT R PRO) Bolt, front reinforcement on frame floor assembly	*BA61.10-P-1001-01l
7	Unscrew screws (12) and remove stiffener (13).	Model 190 with code M032 (Black Series version) Model 190 with code PAP (Mercedes-AMG GT R PRO) Bolt/nut, rear reinforcement under exhaust system to longitudinal member	*BA61.10-P-1003-01l
8	Unscrew bolts (14) and remove reinforcement (15).	Model 190 with code M032 (Black Series version) Model 190 with code PAP (Mercedes-AMG GT R PRO) Bolt, rear reinforcement to frame floor assembly	*BA61.10-P-1002-01l
9	Unscrew bolts (16) and remove front underfloor paneling (17) on left and/or right.	Model 190 with code M032 (Black Series version) Bolt, front reinforcement on frame floor assembly	*BA61.10-P-1001-01l
10	Install in the reverse order.
