Adjust Front Axle Toe - AR40.20-P-0264RQ
Model 190, 197
Shown on model 197
Shown on model 197 on left side of vehicle
Shown on model 197
Shown on model 190
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Measure | |||
| 1 | Carry out input measurement. | AR40.20-P-0200RQ | |
| Adjust | |||
| 2 | Switch off easy entry and exit feature for steering wheel. | Otherwise the steering wheel moves to another position if, e.g. the driver door is opened or closed. Otherwise, the headliner or the windshield may be damaged if the holding device (055) is installed |
|
| 3 | Remove lower engine compartment lining. | Model 190.381 | AR61.20-P-1105RGB |
| Model 197 | AR61.20-P-1105RQ | ||
| Model 190 (except 190.381) | AR61.20-P-1105RG | ||
| 4 | Set steering gear to center position. | ||
| If the steering wheel is not in the center position: ↓ Correct center position of steering wheel. |
|||
| Model 197 | AR46.10-P-0100RQ | ||
| Model 190 | AR46.10-P-0100RG | ||

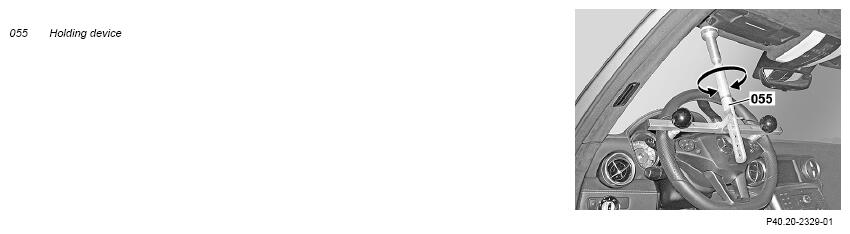

| 5 | Insert holding device (055) in front of sun visor and fasten steering wheel. | Protect the emblem in the steering wheel against damage. Otherwise the |
|
| Fig 1 | |||

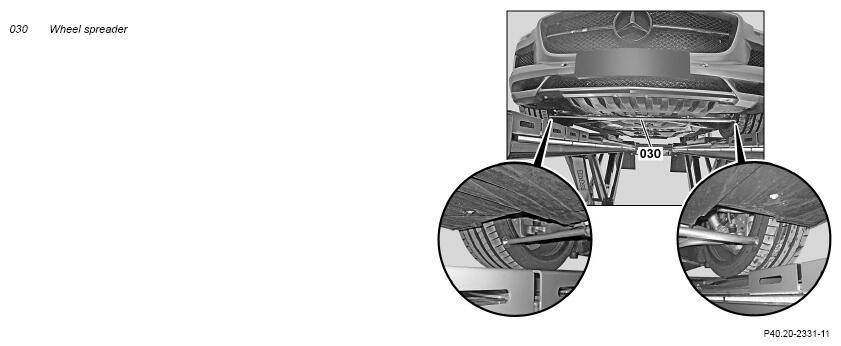

| 6 | Insert wheel spreader (030) in direction of travel at front on insides of wheel. | ||
| 7 | Remove guide vane from tie rod (10). | Model 190 with code M030 (GT R version) Model 190 with code M032 (Black Series version) |
|
| AR42.10-P-0101RG | |||

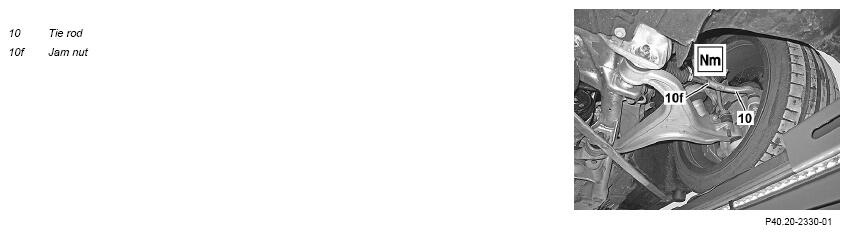

| 8 | Loosen counternut (10f) on inner tie rod (10). | Always counterhold tie rod (10). Otherwise, the tie rod (10) will be damaged. |
|
| 9 | Adjust toe by turning tie rod (10) left or right. | Assign suspension data Model 190 |
AR40.20-P-0203RQ |
| *BE40.20-P-1001-07L | |||
| Total front axle toe at vehicle level | |||
| 10 | Tighten counternut (10f) on inner tie rod (10). Note on calculation of tightening torque when using insertion or socket tools with various effective lengths |
AH00.00-P-0015-01CW | |
Always counterhold tie rod (10). Otherwise, the tie rod (10) will be damaged. |
|||
| *BA46.40-P-1002-01M | |||
| 11 | Attach guide vane to tie rod (10). | Model 190 with code M030 (GT R version) Model 190 with code M032 (Black Series version) |
|
| AR42.10-P-0101RG | |||
| 12 | Install lower engine compartment lining. | Model 190.381 | AR61.20-P-1105RGB |
| Model 197 | AR61.20-P-1105RQ | ||
| Model 190 (except 190.381) | AR61.20-P-1105RG | ||
| 13 | Remove wheel spreader (030). | ||
| 14 | Check boots of left or right tie rod (10) for twisting; align if necessary. | ||
| 15 | Remove holding device (055). | ||
| Measure | |||
| 16 | Carry out output measurement. | AR40.20-P-0200RQ |
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 197 up to 8/31/12 except code P98 (Black Series) | Model 197 as of 9/1/12 except code P98 (Black Series) | ||
|---|---|---|---|---|---|
| BE40.20-P-1001-07L | Total front axle toe at vehicle level | -3.83° | ∠° | - | - |
| -2.87° | ∠° | 0° -10' (±7') | 0° 25' (±7') | ||
CHECK VALUES FOR FRONT AXLE TOE
| Number | Designation | Model 197 with code P98 (Black Series) | ||
|---|---|---|---|---|
| BE40.20-P-1001-07L | Total front axle toe at vehicle level | -3.83° | ∠° | 0° 24 (±7) |
| -2.87° | ∠° | - | ||
TIE ROD
| Number | Designation | Model 190 | Model 197 | |
|---|---|---|---|---|
| BA46.40-P-1002-01M | Jam nut, tie rod to inner tie rod | Nm | 65 | 65 |
