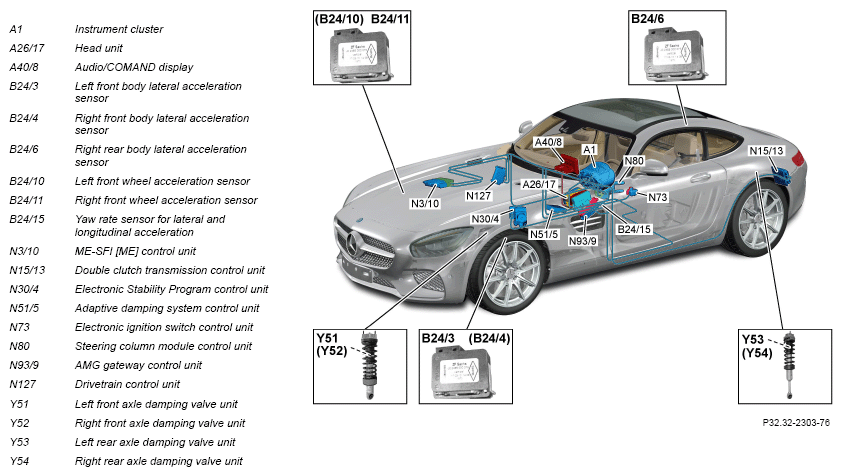

Overview Of System Components For Adaptive Damping System (ADS) - GF32.32-P-9997RR
Model 190
With Code 479 (AMG RIDE CONTROL sports suspension)
Shown on model 190.3 up to 30.11.2018
Model 190 as of 12/1/18
as of model year 2019
with code 479 (AMG RIDE CONTROL sports suspension)

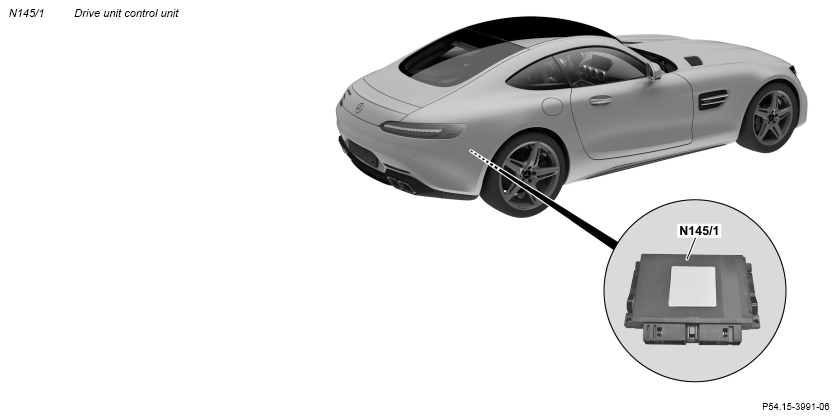

The Drive Unit control unit (N145/1) is also installed. On model 190.3 it is located above the left rear wheel well, and on model 190.4 it is on the left under the soft top compartment.
Shown on model 190.3 as of 01.12.2018

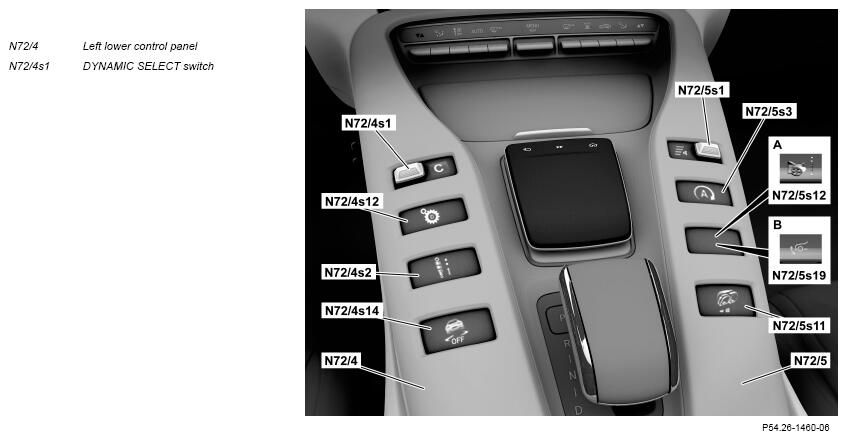

View of center console as of 01.12.2018, shown With Code 446 (Touchpad only)

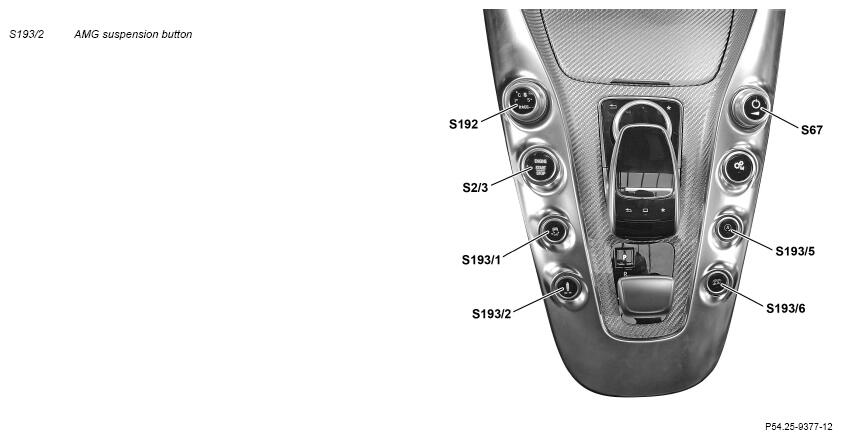

View of center console up to 30.11.2018
| Component description for instrument cluster | A1 | GF54.30-P-6000RR | |
| Head unit, component description | Model 190 with code 479 (AMG RIDE CONTROL sports suspension) with code 531 (COMAND APS) except code 520 (Audio 20 USB) |
GF82.85-P-3140RRA | |
| A26/17 | |||
| Model 190 with code 479 (AMG RIDE CONTROL sports suspension) with code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) |
GF82.85-P-3140RRB | ||
| A26/17 | |||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RR | |
| Turn rate, lateral and longitudinal acceleration sensor, component description | B24/15 | GF42.45-P-4082RR | |
| Component description for ME-SFI (ME) control unit | Model 190 with engine 178.9 with code 479 (AMG RIDE CONTROL sports suspension) |
GF07.61-P-6000MNB | |
| N3/10 | |||
| Dual clutch transmission control unit, component description | N15/13 | GF27.60-P-5171RR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119RR | |
| Component description for adaptive damping system control unit | N51/5 | GF32.32-P-1010RR | |
| Lower control panel control unit, component description | Model 190 as of 12/1/18 as of model year 2019 with code 479 (AMG RIDE CONTROL sports suspension) |
GF54.21-P-6060RRM | |
| N72/4 | |||
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RR | |
| Component description for steering column tube module control unit | Model 190 as of 12/1/18 as of model year 2019 with code 479 (AMG RIDE CONTROL sports suspension) |
GF54.21-P-6051RRM | |
| N80 | |||
| Model 190 up to 11/30/18 up to model year 2019 with code 479 (AMG RIDE CONTROL sports suspension) |
GF54.21-P-6051RR | ||
| N80 | |||
| AMG gateway control unit, component description | N93/9 | GF54.21-P-1001RR | |
| Drivetrain control unit, component description | Model 190 with engine 178.9 with code 479 (AMG RIDE CONTROL sports suspension) |
GF54.21-P-2141MNB | |
| N127 | |||
| Table of contents for function description of adaptive damping system (ADS) | GF32.32-P-0998RR |
