Remove/Install Hydraulic Line Of Power Steering - AR46.25-P-3015RG

Model 190

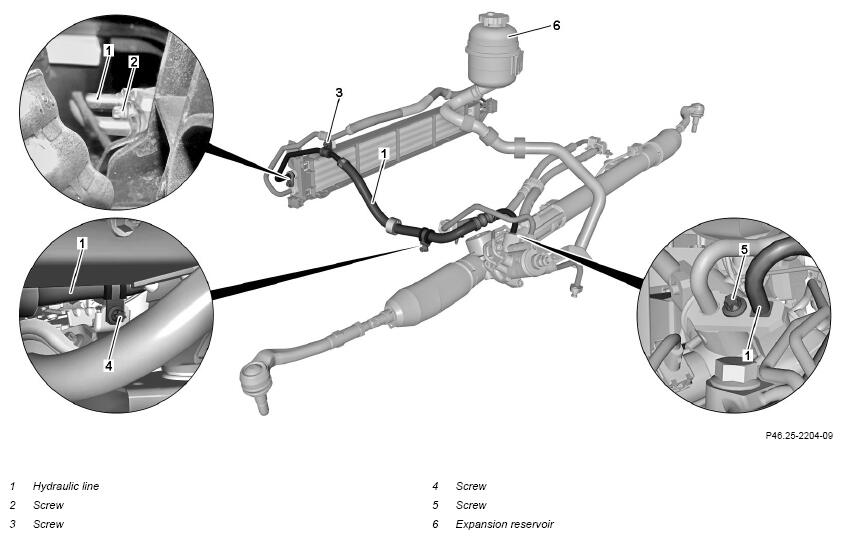

G16681964Courtesy of MERCEDES-BENZ USA

Hydraulic line between cooler for power steering and rack-and-pinion steering

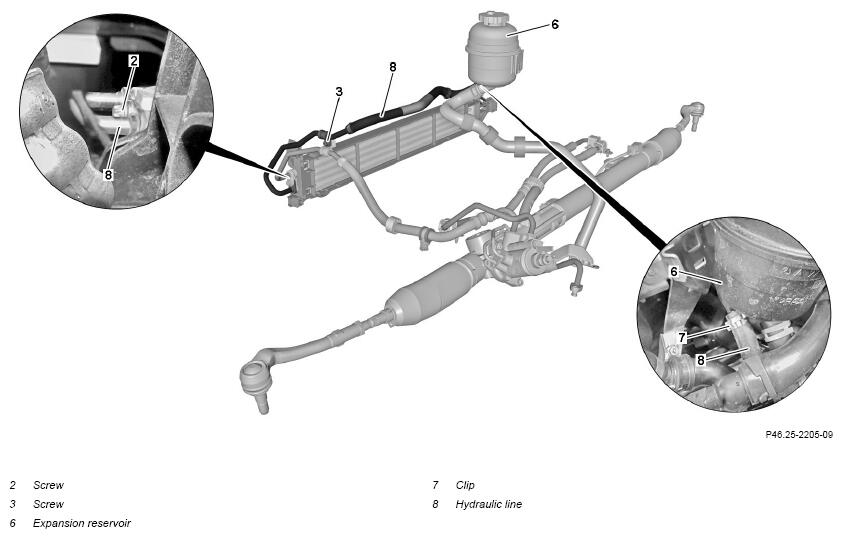

G16681965Courtesy of MERCEDES-BENZ USA

Hydraulic line between cooler for power steering and expansion reservoir

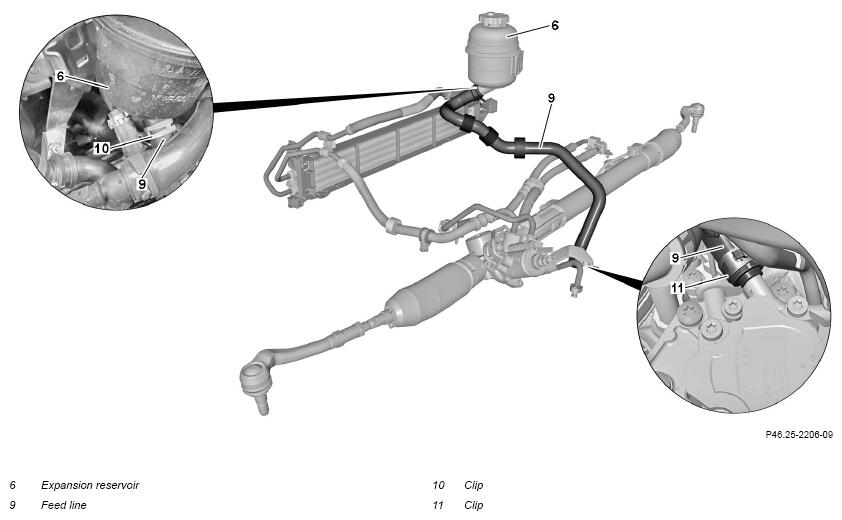

G16681966Courtesy of MERCEDES-BENZ USA

Feed line between expansion reservoir and power steering pump

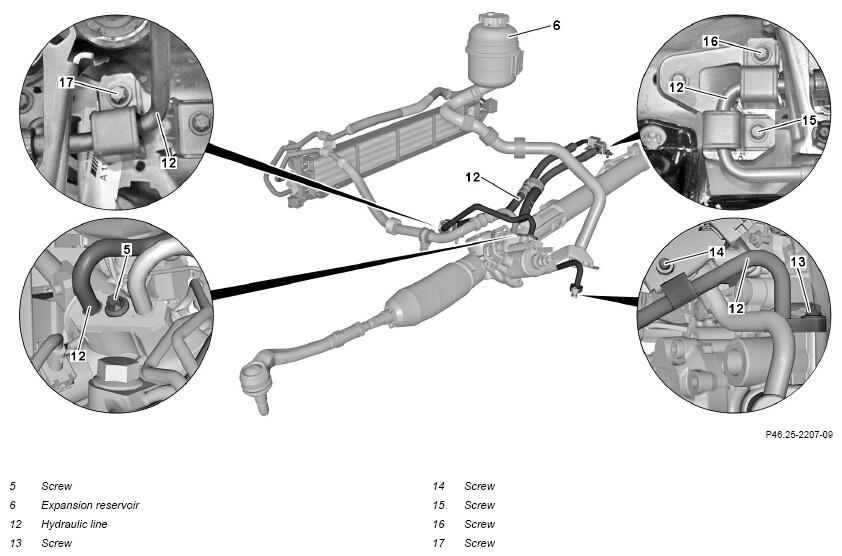

G16681967Courtesy of MERCEDES-BENZ USA

High-pressure line between power steering pump and rack-and-pinion steering

DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
WARNING Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure.Risk of poisoning  from swallowing hydraulic fluid. Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. AS00.00-Z-0013-01A
Notice  Notes on working in engine compartment   AH60.00-P-0042-01RG
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVING Remove
1 Open hood, position vertically.   AR88.40-P-1000RG
2 Lift/jack up vehicle   AR00.60-P-1000RG
3 Remove engine cover above the expansion reservoir (6).
4 Suction off oil from expansion reservoir (6). SPECIAL TOOL Hand pump Fig 1
5 Remove lower engine compartment linings. Model 190 (except 190.381) AR61.20-P-1105RG
    Model 190.381 AR61.20-P-1105RGB
    INSTALLATION IMPORTANT Only install engine compartment paneling after leak test.
  Remove/install hydraulic line between cooler for power steering and rack-and-pinion steering
6 Lift engine oil cooler out of lower mounts and carefully tilt downwards. IMPORTANT Slide engine oil cooler far enough to one side until access is gained to the connections.
    IMPORTANT Do not open oil lines.
7 Remove screw (2) from power steering cooler and release hydraulic line (1). NOTES
Thoroughly clean area around the separating point before opening the hydraulic system.
Otherwise, even the smallest particles, introduced into the hydraulic system may lead to component malfunctions and a total failure of the hydraulic system.

    INSTALLATION IMPORTANT Replace sealing rings.
    IMPORTANT Collect escaping oil and seal connections with stop plugs.
    SPECIAL TOOL Record plug Fig 2
8 Remove screws (3, 4) and release hydraulic line (1).
9 Unscrew screw (5) from control head of rack-and-pinion steering and remove hydraulic line (1). INSTALLATION IMPORTANT Replace sealing rings.
    IMPORTANT Collect escaping oil and seal connections with stop plugs.
    TORQUE SPECIFICATION Bolt, high pressure line to steering gear *BA46.30-P-1004-01E
    SPECIAL TOOL Record plug Fig 2
10 Install in the reverse order
  Remove/install hydraulic line between cooler for power steering and expansion reservoir
11 Unhook expansion reservoir (6) upwards. NOTES
Thoroughly clean area around the separating point before opening the hydraulic system.
Otherwise, even the smallest particles, introduced into the hydraulic system may lead to component malfunctions and a total failure of the hydraulic system.

12 Release clamp (7) of hydraulic line (8). INSTALLATION IMPORTANT Replace clamp (7).
    IMPORTANT Collect escaping oil and seal connections with stop plugs.
    SPECIAL TOOL Record plug Fig 2
13 Remove screw (3) and release hydraulic line (8).
14 Lift engine oil cooler out of lower mounts and carefully tilt downwards. IMPORTANT Do not open oil lines.
    IMPORTANT Slide engine oil cooler far enough to one side until access is gained to the connections.
15 Remove screw (2) from power steering cooler and release hydraulic line (8). IMPORTANT Collect escaping oil and seal connections with stop plugs.
    INSTALLATION IMPORTANT Replace sealing rings.
    SPECIAL TOOL Record plug Fig 2
16 Install in the reverse order
  Remove/install feed line between expansion reservoir and power steering pump
17 Unhook expansion reservoir (6) upwards. NOTES
Thoroughly clean area around the separating point before opening the hydraulic system.
Otherwise, even the smallest particles, introduced into the hydraulic system may lead to component malfunctions and a total failure of the hydraulic system.

18 Release clamp (10) from expansion reservoir (6) and remove feed line (9). IMPORTANT Collect escaping oil and seal connections with stop plugs.
    INSTALLATION IMPORTANT Replace clamp (10).
    SPECIAL TOOL Record plug Fig 2
19 Release clamp (11) from power-steering pump and remove feed line (9). IMPORTANT Collect escaping oil and seal connections with stop plugs.
    INSTALLATION IMPORTANT Replace clamp (11).
    SPECIAL TOOL Record plug Fig 2
20 Install in the reverse order
  Remove/install high-pressure line between power steering pump and rack-and-pinion steering
21 Remove right air filter housing.
22 Unhook right heat exchanger and place to one side.
23 Remove screws (15, 16) from right front axle carrier. NOTES
When working on the front axle, be careful not to scratch, put scribe markings on, or notch the surfaces of aluminum parts.
Otherwise the service life of the parts will be impaired or reduced.

    TORQUE SPECIFICATION Bolt, high-pressure line to holder on front axle carrier *BA46.30-P-1003-01E
24 Remove screw (17) from left front axle carrier. NOTES
When working on the front axle, be careful not to scratch, put scribe markings on, or notch the surfaces of aluminum parts.
Otherwise the service life of the parts will be impaired or reduced.

    TORQUE SPECIFICATION Bolt, high-pressure line to holder on front axle carrier *BA46.30-P-1003-01E
25 Remove screw (14) and loosen the holder on high-pressure line (12). TORQUE SPECIFICATION Bolt, high-pressure line to pump bracket *BA46.30-P-1002-01E
26 Remove screw (13) from power-steering pump and loosen high-pressure line (12). NOTES
Thoroughly clean area around the separating point before opening the hydraulic system.
Otherwise, even the smallest particles, introduced into the hydraulic system may lead to component malfunctions and a total failure of the hydraulic system.

    IMPORTANT Collect escaping oil and seal connections with stop plugs.
    INSTALLATION IMPORTANT Replace sealing rings.
    TORQUE SPECIFICATION Bolt, high-pressure line to power steering pump *BA46.30-P-1005-01E
    SPECIAL TOOL Record plug Fig 2
27 Remove screw (5) from control head of rack-and-pinion steering and remove hydraulic line (12). INSTALLATION IMPORTANT Replace sealing rings.
    IMPORTANT Collect escaping oil and seal connections with stop plugs.
    TORQUE SPECIFICATION Bolt, high pressure line to steering gear *BA46.30-P-1004-01E
    SPECIAL TOOL Record plug Fig 2
28 Install in the reverse order
INSPECT Check
29 Charge power-steering pump and bleed.   AR46.30-P-0010RG
30 Check function of power steering and for leak tightness.
INSTALLING Install
31 Install lower engine compartment linings. Model 190.381 AR61.20-P-1105RGB
    Model 190 (except 190.381) AR61.20-P-1105RG
32 Install engine cover above the expansion reservoir (6).
POWER STEERING PUMP

Number Designation Model 190
BA46.30-P-1002-01E Bolt, high-pressure line to pump bracket Nm 7
POWER STEERING PUMP

Number Designation Model 190
BA46.30-P-1003-01E Bolt, high-pressure line to holder on front axle carrier Nm 8
POWER STEERING PUMP

Number Designation Model 190
BA46.30-P-1004-01E Bolt, high pressure line to steering gear Nm 21
POWER STEERING PUMP

Number Designation Model 190
BA46.30-P-1005-01E Bolt, high-pressure line to power steering pump M6 Nm 8
M8 Nm 18
Fig 1: Identifying Hand Pump (210 589 00 71 00)
G07742725Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Record Plug (129 589 00 91 00)
G09975019Courtesy of MERCEDES-BENZ USA
