Remove/Install Speaker In Rear Side Paneling - AR82.62-P-7837RG
Model 190
With Code 810 (Premium sound system)
Model 190
With Code 811 (High-End sound system)

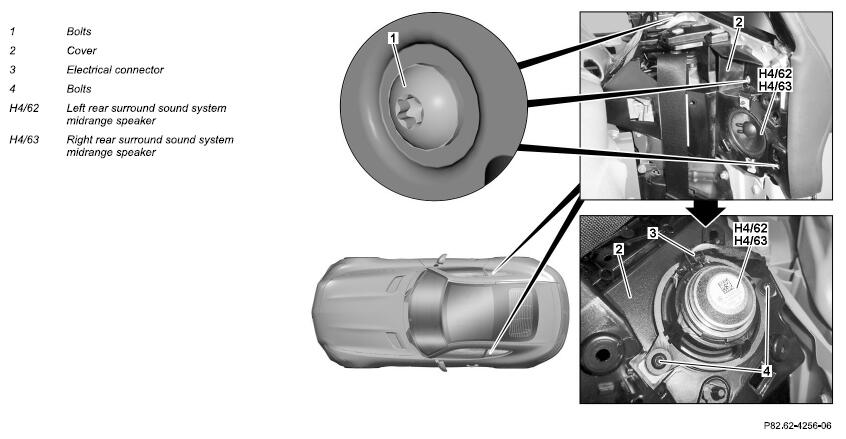

Shown on model 190.3

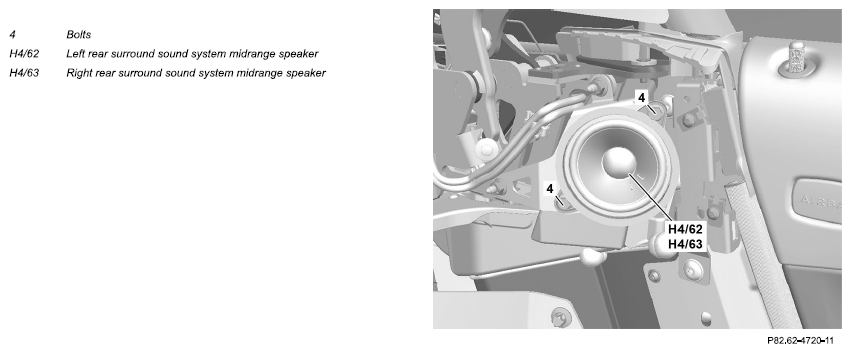

Shown on model 190.4
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove rear passenger compartment side trim panel | Model 190.3 with code 810 (Premium sound system) Model 190.3 with code 811 (High-End sound system) |
AR68.30-P-4780RG |
| Model 190.4 with code 810 (Premium sound system) Model 190.4 with code 811 (High-End sound system) |
AR68.30-P-4780RGR | ||
| 3 | Remove strut tower brace | Model 190.3 with code 810 (Premium sound system) Model 190.3 with code 811 (High-End sound system) |
AR64.20-P-0010RG |
| 4 | Remove trunk partition | Model 190.3 with code 810 (Premium sound system) Model 190.3 with code 811 (High-End sound system) |
AR68.50-P-3000RG |
| 5 | Release rear panel trim in area of surround sound system mid-range speaker at rear left or right (H4/62 or H4/63) and place to one side | Model 190.4 with code 810 (Premium sound system) Model 190.4 with code 811 (High-End sound system) |
AR68.30-P-4750RGR |
| Model 190.3 with code 810 (Premium sound system) Model 190.3 with code 811 (High-End sound system) |
AR68.30-P-4750RG | ||
| 6 | Remove screws (1) from cover (2) and detach cover (2) in direction of vehicle interior | Model 190.3 with code 810 (Premium sound system) Model 190.3 with code 811 (High-End sound system) |
|
| 7 | Unscrew screws (4) and remove surround sound system mid-range speaker at rear left or right (H4/62 or H4/63) until electrical connector (3) is accessible | ||
| 8 | Release and disconnect electrical connection (3) | ||
| 9 | Install in the reverse order |
