Remove/Install Trunk Retractable Partition - AR68.50-P-3000RG
Model 190.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove center paneling in trunk | AR68.30-P-4810RG | |

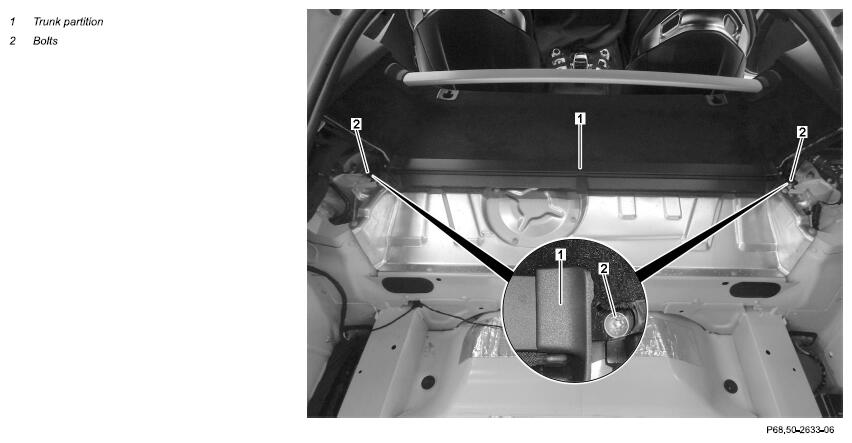

| 3 | Remove screws (2) on left and right | ||
| 4 | Remove trunk partition (1) | ||
| 5 | Install in the reverse order |
