Remove/Install Rear Wall Paneling - AR68.30-P-4750RGR
Model 190.4
| Remove/install | |||
| 1 | Remove side paneling in rear and lay down to side | AR68.30-P-4780RGR | |
| 2 | Remove door sill moldings | AR68.30-P-4100RG | |
| 3 | Detach edge guard in working area | ||

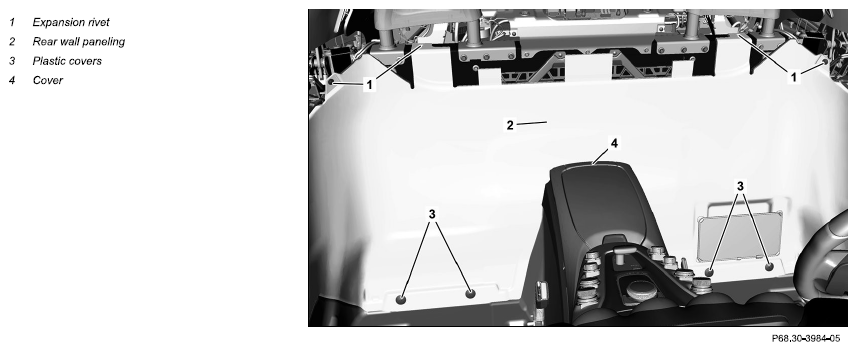

| 4 | Unclip expansion rivets (1) | Fig 1 | |
| 5 | Unscrew plastic covers (3) | ||
| 6 | Unclip cover (4) | Fig 2 | |
| 7 | Remove rear wall paneling (2) | ||
| 8 | Install in the reverse order |
