Remove/Install Front Fender - AR88.10-P-1000RG

Model 190

except code M032 (Black Series version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Remove/install
1	Lift vehicle with vehicle lift.		AR00.60-P-1000RG
2	Remove fender liner in fender.	Model 190 except code M032 (Black Series version)	AR88.10-P-1300RG
3	Remove the longitudinal member panel.	Model 190 except code M032 (Black Series version)	AR88.80-P-6000RG

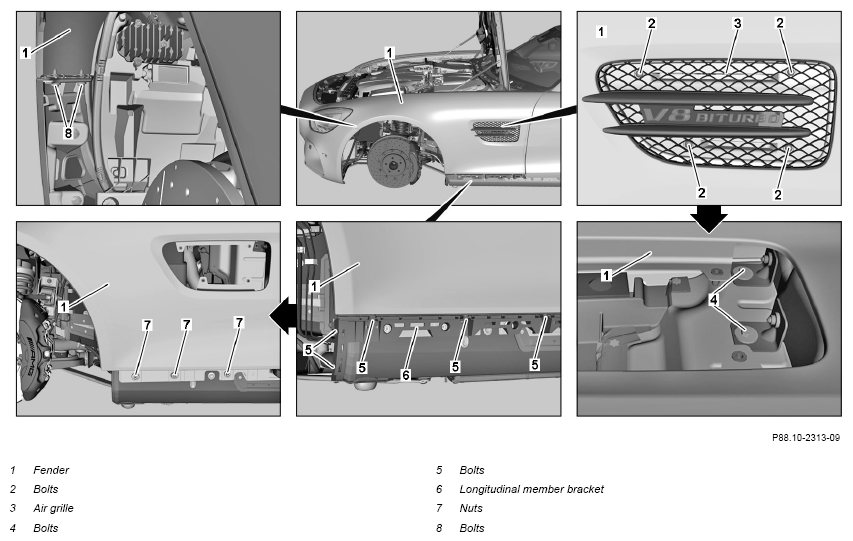

4	Unscrew the bolts (2) and remove the air grille (3).
5	Remove bolts (4).	Bolt/nut, attachment of fender to body	*BA88.10-P-1002-01H
6	Unscrew the bolts (5) o the longitudinal member panel holder (6) and remove.
7	Unscrew nuts (7).	Nut for attachment of fender bracket	*BA88.10-P-1001-01H
8	Remove screw (8).	Unscrew only bolt (8).	AR88.20-P-2000-01RG
		Bolt/nut, attachment of fender to body	*BA88.10-P-1002-01H

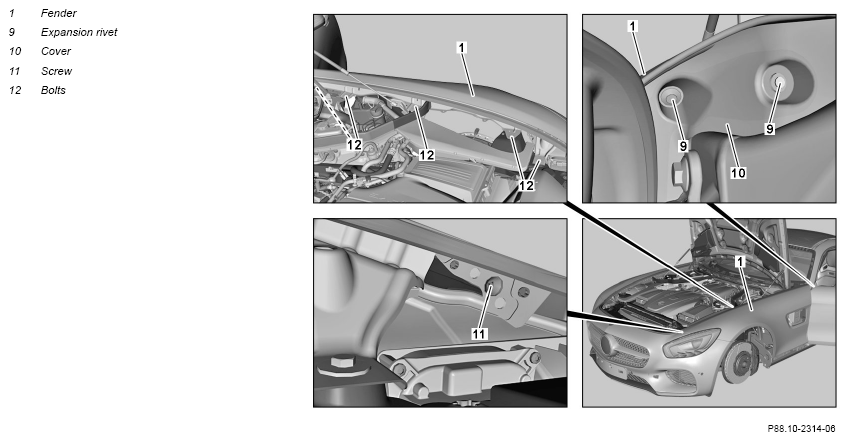

9	Remove the expansion rivet (9) from the cover (10).
10	Remove screw (11).	Unscrew only bolt (11).	AR88.20-P-2000-01RG
		Bolt/nut, attachment of fender to body	*BA88.10-P-1002-01H
11	Unscrew the bolts (12) from the fender.	Bolt/nut, attachment of fender to body	*BA88.10-P-1002-01H
12	Remove the front fender.	Carefully remove the fender and place it on a suitable surface. Otherwise paint damage can occur.
13	Install in the reverse order
	Check
14	Check gap dimensions on fender (1), adjust if necessary.	Gap dimension, fender to door paneling	*BE60.00-P-1007-01EA
		Gap dimension, fender to bumper lamp unit	*BE60.00-P-1005-01EA
		Gap dimension, fender to lamp unit	*BE60.00-P-1003-01EA
		Gap dimension, fender to engine hood	*BE60.00-P-1002-01EA
		Feeler gauge	Fig 2
		Mounting wedge	Fig 1

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1002-01EA	Gap dimension, fender to engine hood	Dimension "B"	mm	3, 5 (±0, 5)	3, 5 (±0, 5)
BE60.00-P-1002-01EA	Gap dimension, fender to engine hood	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1003-01EA	Gap dimension, fender to lamp unit	Dimension "C"	mm	2, 5 (±1)	3 (±0, 5)
BE60.00-P-1003-01EA	Gap dimension, fender to lamp unit	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1005-01EA	Gap dimension, fender to bumper lamp unit	Dimension "E"	mm	0 (+0, 5)	0 (+0, 5)
BE60.00-P-1005-01EA	Gap dimension, fender to bumper lamp unit	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

GAP DIMENSIONS

Number	Designation			Model 190.3	Model 190.4
BE60.00-P-1007-01EA	Gap dimension, fender to door paneling	Dimension "G"	mm	4 (±0, 5)	4 (±0, 5)
BE60.00-P-1007-01EA	Gap dimension, fender to door paneling	See		AR60.00-P-0700-01RG	AR60.00-P-0700-01RG

FENDER

Number	Designation		Model 190
BA88.10-P-1001-01H	Nut for attachment of fender bracket	Nm	8

FENDER

Number	Designation		Model 190
BA88.10-P-1002-01H	Bolt/nut, attachment of fender to body	Nm	8

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA
