Loosen Front Bumper And Fasten - AR88.20-P-2000-01RG
Model 190
GAP DIMENSIONS
| Number | Designation | Model 190.3 | Model 190.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1001-01EA | Gap dimension, engine hood to bumper | Dimension "A" | mm | 3, 5 (±0, 5) | 3, 5 (±0, 5) |
| See | AR60.00-P-0700-01RG | AR60.00-P-0700-01RG | |||
GAP DIMENSIONS
| Number | Designation | Model 190.3 | Model 190.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1004-01EA | Gap dimension, lamp unit to bumper | Dimension "D" | mm | 2, 5 (±1) | 2, 5 (±0, 5) |
| See | AR60.00-P-0700-01RG | AR60.00-P-0700-01RG | |||
GAP DIMENSIONS
| Number | Designation | Model 190.3 | Model 190.4 | ||
|---|---|---|---|---|---|
| BE60.00-P-1005-01EA | Gap dimension, fender to bumper lamp unit | Dimension "E" | mm | 0 (+0, 5) | 0 (+0, 5) |
| See | AR60.00-P-0700-01RG | AR60.00-P-0700-01RG | |||
Unfasten/fasten

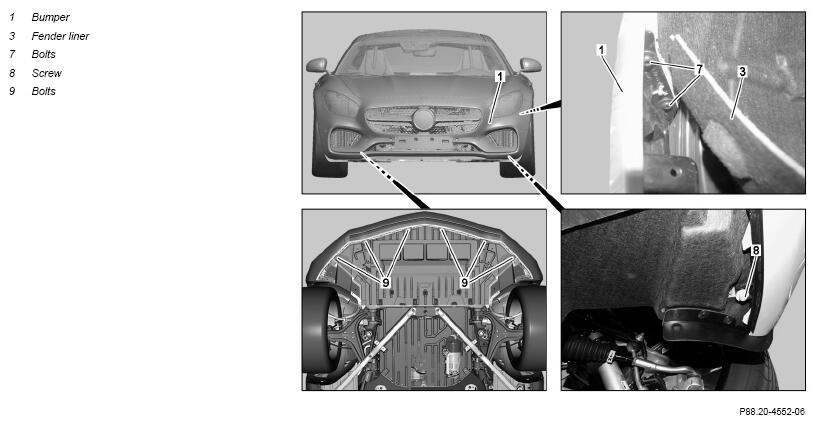

- Lift vehicle and unscrew bolts (9) from engine hood paneling front section.
- Remove screw/bolt (8).

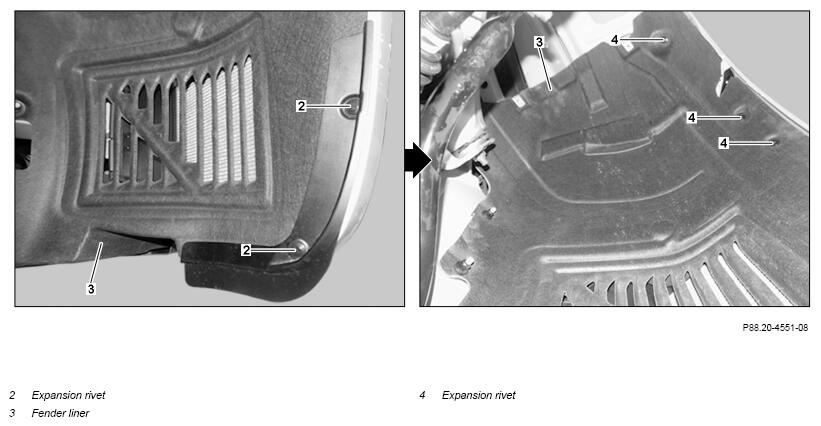

- Remove expansion rivets (2, 4) with
clip remover.
- Press inner fender liner (3) to side until bolts (7) are accessible.
- Remove screw/bolts (7).

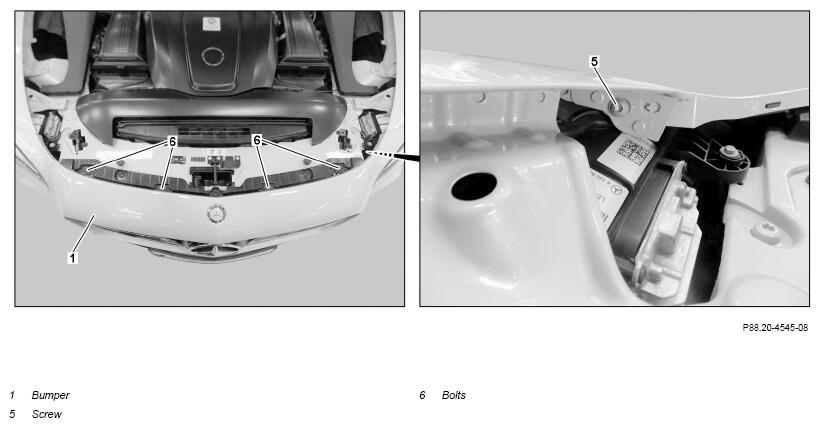

- Remove screw/bolt (5).
- Remove screw/bolts (6).
- Guide bumper (1) toward front out of bracket.
: Check gap dimensions on front bumper (1) with
- Fasten in reverse order
Check
- Check gap dimensions with
