Overview Of Interior Illumination (IBL) System Components - GF82.20-P-9997FG
Model 213
up to model year 2021

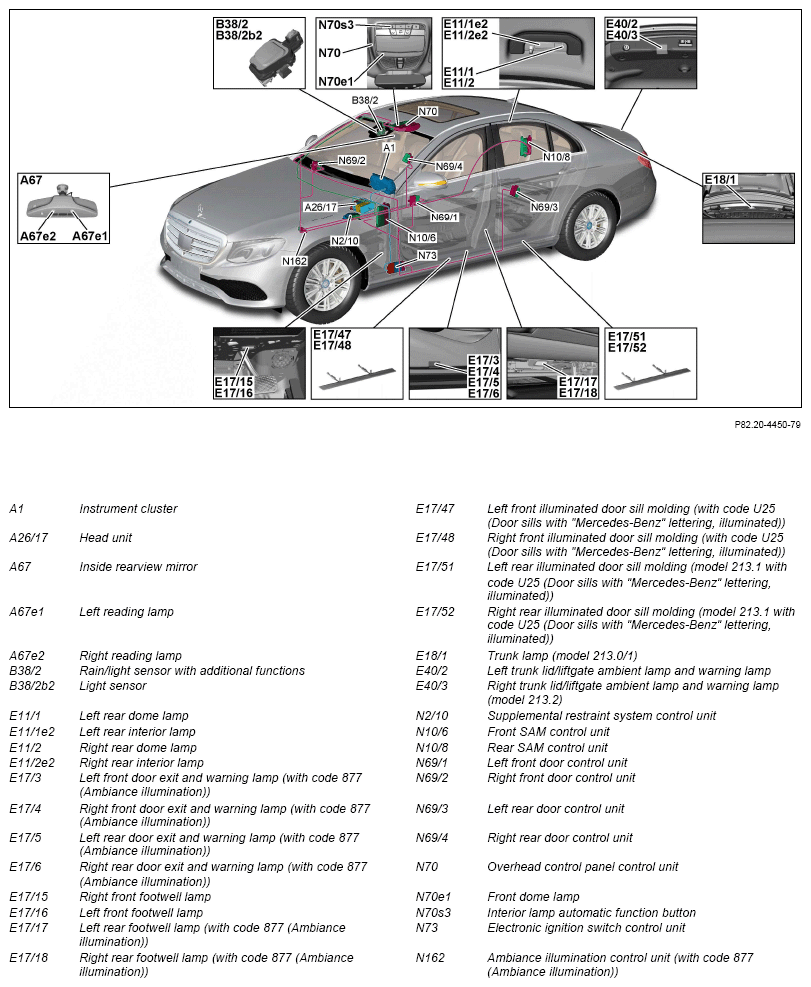

Manual interior lighting control, shown on model 213.0
Model 213 1 with code U05 (Make-up mirror in rear)
The following components are not shown:
- Left rear vanity mirror unit (E15/10)
- Left rear vanity mirror illumination (E15/10e1)
- Left rear vanity mirror dome lamp (E15/10e2)
- Left rear vanity mirror illumination switch (E15/10s1)
- Right rear vanity mirror unit (E15/11)
- Right rear vanity mirror illumination (E15/11e1)
- Right rear vanity mirror dome lamp (E15/11e2)
- Right rear vanity mirror illumination switch (E15/11s1)
Automatic interior lighting control, shown on model 213.0
Model 213 1 with code U05 (Make-up mirror in rear)
The following components are not shown:
- Left rear vanity mirror unit
- Left rear vanity mirror dome lamp
- Right rear vanity mirror unit
- Right rear vanity mirror dome lamp
Model 213 2:
The following components are not shown:
- Right trunk lamp (E18/4)
- Left trunk lamp (E185)

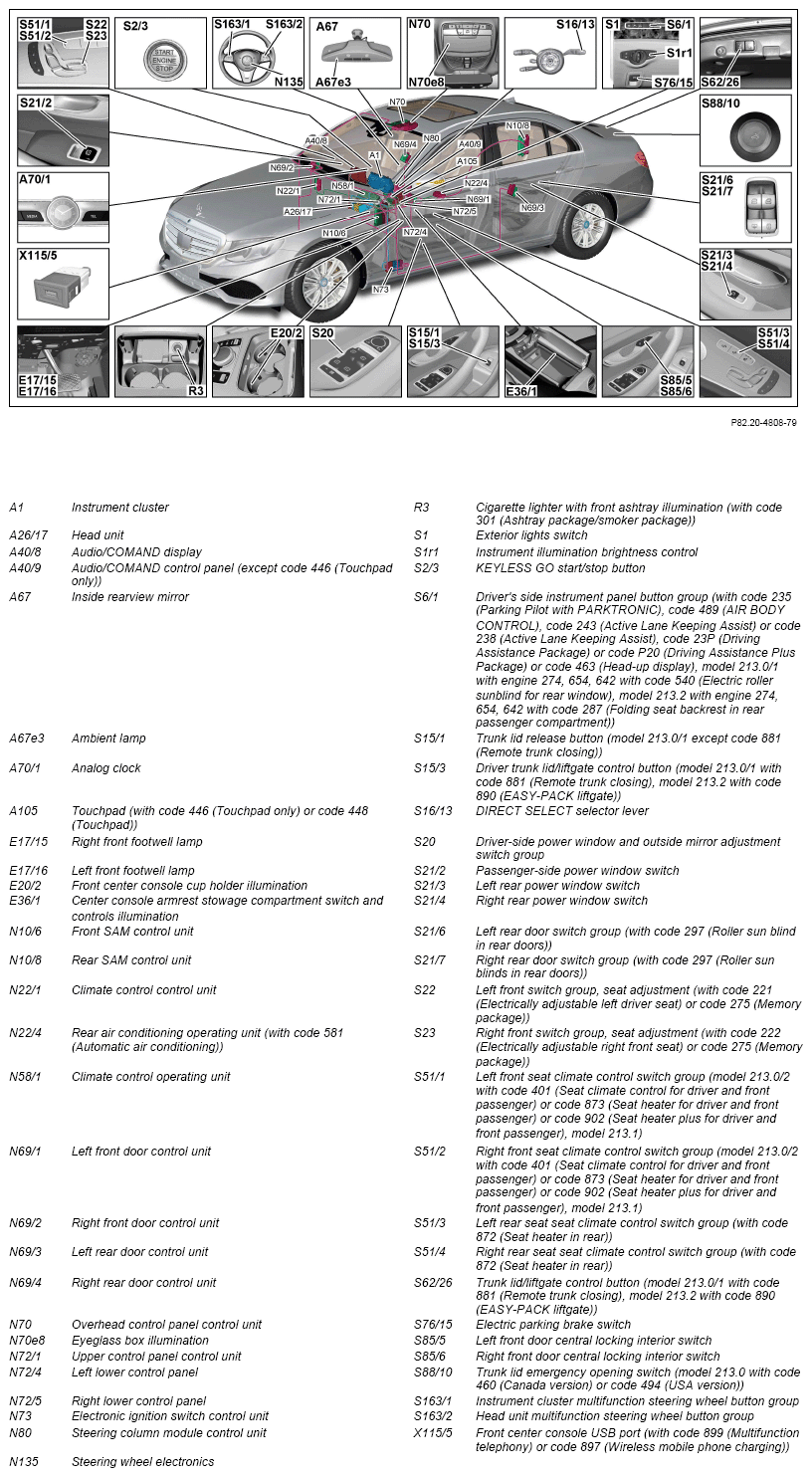

Search and symbol lighting, shown on model 213.0 up to 31.05.2018

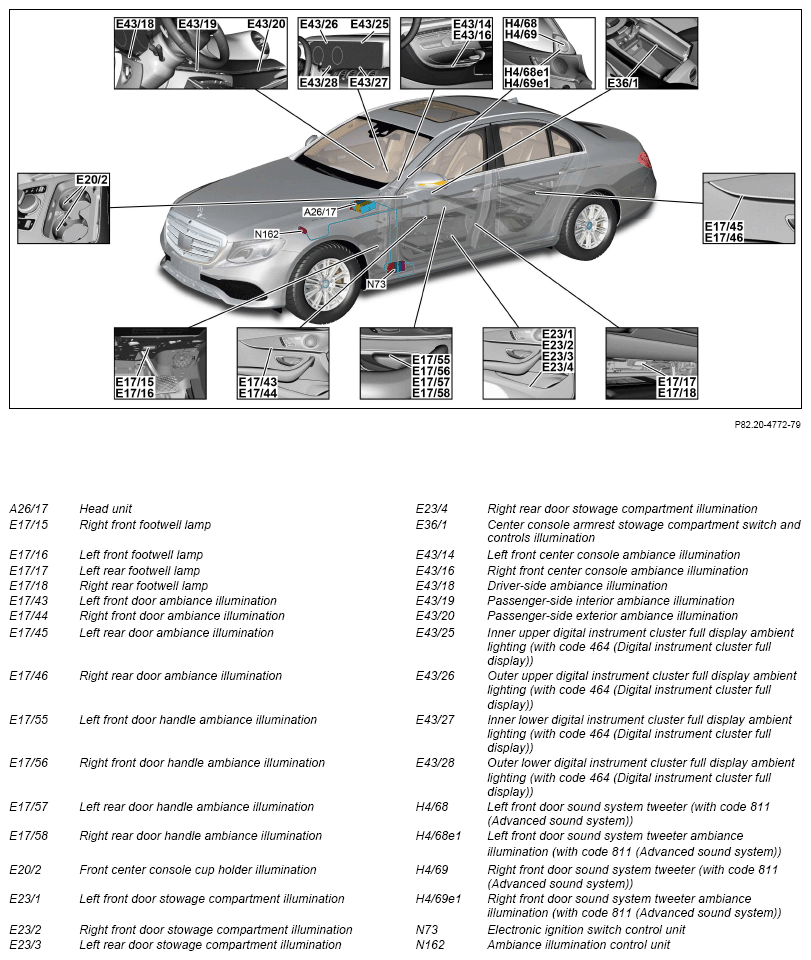

Ambient lighting (with code 877 (Ambient lighting)), shown on model 213.0
Model 213 with code 811 (Advanced sound system)
The roof center midrange speaker ambiance illumination (E43/55) is not shown.
| Component description for instrument cluster | A1 | GF54.30-P-6000FG | |
| Head unit, component description | Model 213 up to model year 2021 with code 520 (Audio 20 USB) except code 506 (Audio 20 NTG 5.5 radio) except code 522 (Audio 20 radio) except code 531 (COMMAND APS) A26/17 |
GF82.85-P-3140FG | |
| Model 213 up to model year 2021 with code 522 (Audio 20 radio) except code 506 (Audio 20 NTG 5.5 radio) except code 520 (Audio 20 USB) except code 531 (COMMAND APS) A26/17 |
GF82.85-P-3140FGA | ||
| Model 213 up to model year 2021 with code 506 (Audio 20 NTG 5.5 radio) Model 213 up to model year 2021 with code 531 (COMMAND APS) A26/17 |
GF82.85-P-3140FGB | ||
| Component description for Audio/COMMAND display | A40/8 | GF54.30-P-6150FG | |
| Component description for Audio/COMMAND control panel | Model 213 up to model year 2021 except code 446 (Touchpad only) A40/9 | GF54.21-P-4501FG | |
| Touchpad, component description | Model 213 up to model year 2021 with code 446 (Touchpad only) Model 213 up to model year 2021 with code 448 (Touchpad) A105 |
GF54.21-P-4511FG | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005FG | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080FG | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010FG | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030FG | |
| Climate control, control unit, component description | N22/1 | GF83.40-P-2250FG | |
| Rear climate control operating unit, component description | Model 213 up to model year 2021 with code 581 (Automatic air conditioning) N22/4 | GF83.40-P-3050FG | |
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260FG | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FG | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FG | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FG | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216FG | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FG | |
| Lower control panel, component description | N72/4, N72/5 | GF54.25-P-4270FG | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FG | |
| Component description for steering column tube module control unit | Model 213 as of model year 2019 up to model year 2021 N80 | GF54.21-P-6051FGA | |
| Model 213 up to model year 2019 N80 | GF54.21-P-6051FG | ||
| Steering wheel electronics control unit, component description | Model 213 as of model year 2019 up to model year 2021 N135 | GF82.90-P-4006FG | |
| Ambiance illumination control unit, component description | Model 213 up to model year 2021 with code 877 (Ambient lighting) N162 | GF82.20-P-5161FG | |
| Contents, function description of interior illumination (IBL) | GF82.20-P-0998FG |
