Remove/Install Low-Pressure Fuel Lines - AR07.03-P-1121MNE

Engine 177 in model 213

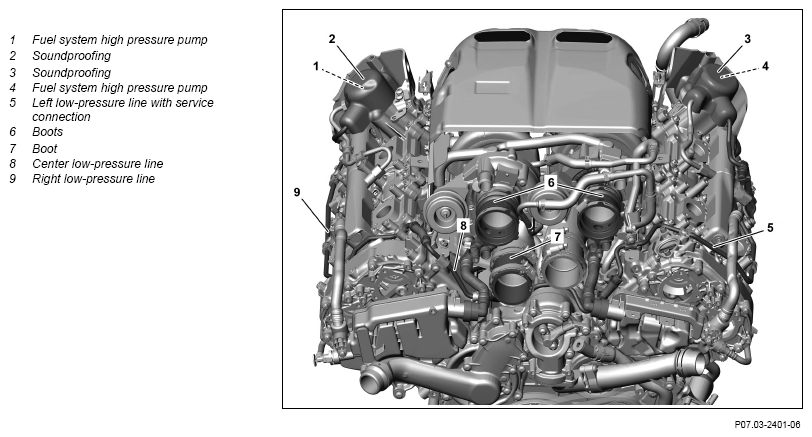

Fig 1: Low-Pressure Fuel Lines Components Location - Engine 177 In Model 213
G13744417Courtesy of MERCEDES-BENZ USA
Risk of explosion  caused by fuel igniting. Risk of injury  to skin and eyes caused by fuel spraying out at high pressure Keep all ignition sources out of hazard area.
Do not carry out any work on system when it is pressurized.
AS07.16-Z-0001-01A
Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking.
Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
CAUTION Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil Wear protective gloves, protective clothing and safety glasses.
Do not fill engine oil into beverage containers.
AS18.00-Z-0001-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
  Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
  Notes on coolant level   AH20.00-P-1142-01CW
  Note on calculation of tightening torque when using insertion or socket tools with various effective lengths   AH00.00-P-0015-01CW
  General information on work on gasoline direct injection system   AH07.00-P-2000-01A
REMOVINGINSTALLING Remove/install
1 Disconnect battery ground line   AR54.10-P-0003LW
2 Remove bracket of low-temperature circuit expansion reservoir INSTALLATION IMPORTANT Only install upper engine cover after the leak test. AR09.41-P-0017MNE
3 Remove soundproofing (3)
4 Remove left-hand air filter housing   AR09.10-P-1151MNE
5 Remove filler neck   AR01.40-P-0004MNE
6 Relieve fuel pressure over diagnostic socket   AR07.03-P-1460-01MNE
    TORQUE SPECIFICATION Dust protection cap to service connection *BA07.03-P-1005-01H
    SPECIAL TOOL Pressure hose Fig 4
7 Clean area around left low-pressure line with service connection (5) Assembly cleaner *BR00.45-Z-1028-04A
8 Remove left low-pressure line with service connection (5) from fuel system high-pressure pump (4) TORQUE SPECIFICATION Union nut, fuel line to fuel distributor/fuel system high-pressure pump *BA07.03-P-1001-01H
9 Remove fuel supply line from service connection, and seal openings with suitable stop plugs TORQUE SPECIFICATION Union nut, fuel hose to diagnostic socket/fuel line *BA07.03-P-1006-01H
    SPECIAL TOOL Record plug Fig 2
    SPECIAL TOOL Box wrench bit Fig 3
10 Remove left low-pressure line with service connection (5) from cylinder head cover and bracket of coolant return line for turbocharger TORQUE SPECIFICATION Bolt, fuel line clamp to engine/bracket *BA07.03-P-1004-01H
11 Seal opening at fuel system high-pressure pump (4) with suitable stop plug SPECIAL TOOL Record plug Fig 2
12 Check left low-pressure line with service connection (5) for damage   AR07.03-P-1120-01MNE
    Assembly cleaner
If a problem arises

Replace left low-pressure line with service connection (5).
*BR00.45-Z-1028-04A
13 Remove left low-pressure line with service connection (5), and seal with suitable stop plugs INSTALLATION NOTES :
Always replace hose after opening clamp.
Leaks can occur otherwise.
IMPORTANTCommercially available devices/tools  Clamping pliers

    SPECIAL TOOL Record plug Fig 2
14 Remove bracket for engine management control unit   AR07.08-P-7016MNE
15 Remove soundproofing (2)
16 Clean area around right low-pressure line (9) Assembly cleaner *BR00.45-Z-1028-04A
17 Remove right low-pressure line (9) from fuel system high-pressure pump (1) TORQUE SPECIFICATION Union nut, fuel line to fuel distributor/fuel system high-pressure pump *BA07.03-P-1001-01H
    SPECIAL TOOL Box wrench bit Fig 3
18 Remove right low-pressure line (9) from cylinder head cover TORQUE SPECIFICATION Bolt, fuel line clamp to engine/bracket *BA07.03-P-1004-01H
19 Seal opening on fuel high-pressure pump (1) with a suitable stop plug SPECIAL TOOL Record plug Fig 2
20 Check right low-pressure line (9) for damage   AR07.03-P-1120-01MNE
    Assembly cleaner
If a problem arises

Replace right low-pressure line (9).
*BR00.45-Z-1028-04A
21 Remove right low-pressure line (9), and seal with suitable stop plugs INSTALLATION NOTES :
Always replace hose after opening clamp.
Leaks can occur otherwise.
IMPORTANTCommercially available devices/tools  Clamping pliers

    SPECIAL TOOL Record plug Fig 2
22 Remove charge air cooler INSTALLATION IMPORTANT : Only install lower engine compartment paneling after leak test. AR09.41-P-6817MNE
23 Remove upper coolant hose from low-temperature circuit expansion reservoir   AR09.41-P-0001MNE
24 Remove vacuum lines of turbochargers   AR09.40-P-6027MNE
25 Remove boots (6) from turbochargers TORQUE SPECIFICATION Clamp, boot to exhaust gas turbocharger/air filter *BA01.20-P-1003-01J
26 Remove boot (7) TORQUE SPECIFICATION Bolt, clamp for charge air hose to charge-air distributor *BA09.41-P-1002-01X
27 Remove center low-pressure line (8) TORQUE SPECIFICATION Bolt, fuel line clamp to engine/bracket *BA07.03-P-1004-01H
28 Remove hoses from center low-pressure line (8) INSTALLATION NOTES :
Always replace hoses after opening clamp.
Leaks can occur otherwise.
IMPORTANTCommercially available devices/tools  Clamping pliers

29 Install in the reverse order
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
30 Perform an engine test run and check engine for proper operation and leaktightness
31 Install upper engine cover   AR01.10-P-2405MNE
32 Install lower engine compartment paneling   AR61.20-P-1105LWE
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER

Number Designation Engine 177
BA01.20-P-1003-01J Clamp, boot to exhaust gas turbocharger/air filter Nm 1, 5
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1001-01H Union nut, fuel line to fuel distributor/fuel system high-pressure pump In case of reusability Nm 22
For new lines Stage 1 Nm 15
Stage 2 ∠° 90
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1004-01H Bolt, fuel line clamp to engine/bracket Nm 9
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1005-01H Dust protection cap to service connection Nm 1
INJECTION NOZZLES, INJECTION VALVES, LINES

Number Designation Engine 177
BA07.03-P-1006-01H Union nut, fuel hose to diagnostic socket/fuel line Nm 24
CHARGE AIR LINE/CHARGE AIR COOLING

Number Designation Engine 177
BA09.41-P-1002-01X Bolt, clamp for charge air hose to charge-air distributor Nm 6
Fig 2: Identifying Record Plug (129 589 00 91 00)
G11065549Courtesy of MERCEDES-BENZ USA
Fig 3: Identifying Box Wrench Bit (000 589 80 03 00)
G11138963Courtesy of MERCEDES-BENZ USA
Fig 4: Identifying Pressure Hose (119 589 04 63 00)
G12078803Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
