Remove/Install Low-Temperature Circuit Coolant Expansion Reservoir Holder - AR09.41-P-0017MNE
Engine 177 in model 213
MODIFICATION NOTES
| 16.01.2020 | Remove engine cover, added. | Operation step 1 |
| 16.01.2020 | Remove screw of left gasoline particulate filter differential pressure sensor, added. | Operation step 6 |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||

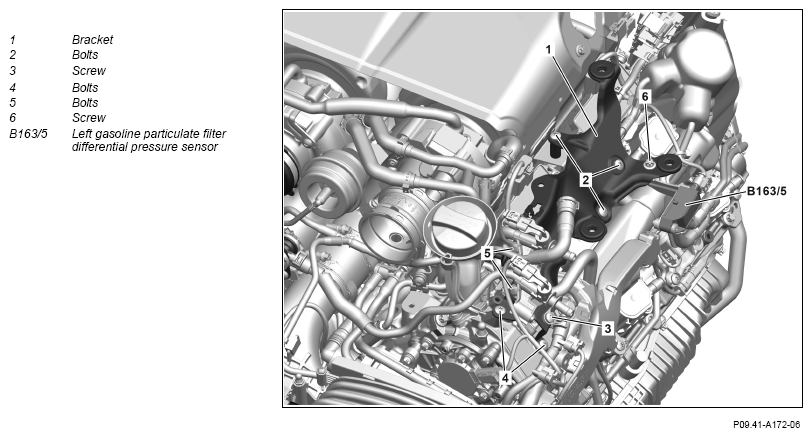

| 1 | Remove upper engine cover. | AR01.10-P-2405MNE | |
| 2 | Remove low-temperature circuit coolant expansion reservoir upwards from elastomer bearings and place to one side with connected lines. | ||
| 3 | Remove screws (5) of purge line brackets. | *BA00.10-P-1002-04A | |
| 4 | Unscrew the screw (3) on the non-return valve. | *BA00.10-P-1002-04A | |
| 5 | Remove screws (4). | *BA00.10-P-1002-04A | |
| 6 | Remove screw (6) of left gasoline particulate filter differential pressure sensor (B163/5). | Engine 177 in model 213 with code 598 (Gasoline particulate filter (OPF) with sensor system) |
*BA00.10-P-1002-04A |
| 7 | Remove screws (2). | M6 x 1 | *BA00.10-P-1002-04A |
| 8 | Remove bracket (1) towards rear. | ||
| 9 | Install in the reverse order. |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6 x1 | Nm | 9 | 13 |
