Remove/Install Filler Neck For Engine Oil - AR01.40-P-0004MNE
Engine 177 in model 213
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Remove/install | |||
| 1 | Remove upper engine cover | AR01.10-P-2405MNE | |

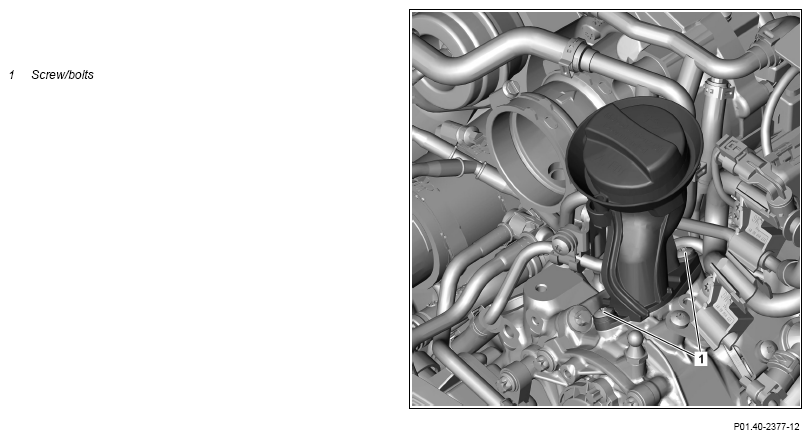

| 2 | Remove screw/bolts (1) and take out the filler neck | *BA01.20-P-1006-01J | |
| 3 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 4 | Perform an engine test run and check engine for leaktightness | ||
| 5 | Install upper engine cover | AR01.10-P-2405MNE |
CRANKCASE VENTILATION SYSTEM, CYLINDER HEAD COVER
| Number | Designation | Engine 177 | |
|---|---|---|---|
| BA01.20-P-1006-01J | Bolt, filler neck to cylinder head cover | Nm | 9 |
