Adjust Pop-Up Roof - AR77.70-S-0002E
Model 447.7/8
With Code ZK9 (Lifting roof hatch)
MODIFICATION NOTES
| 23.03.2017 | Bolt, rear support clamp to vehicle roof | BA77.70-Z-1002-01KOB |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Check | |||

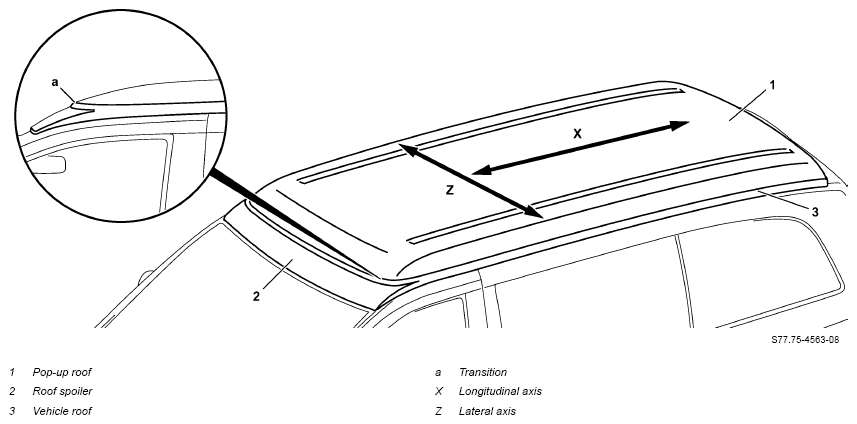

| 1 | Check alignment of pop-up roof (1) in relation to vehicle roof (3) in transverse direction (Z) | Fig 1 | |

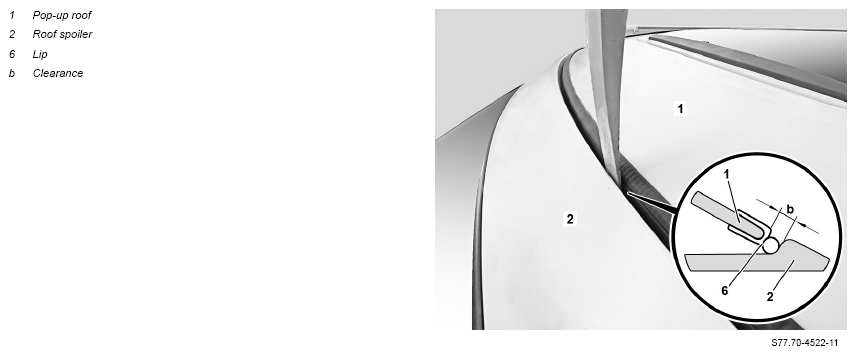

| 2 | Check alignment of pop-up roof (1) in relation to roof spoiler (2) | Gap between roof spoiler and ASD | *BE77.00-Z-1001-01KOE |

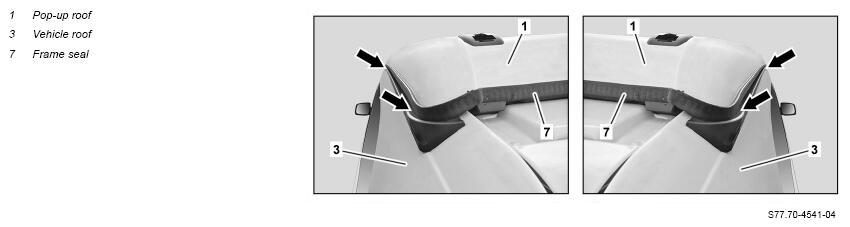

| 3 | Check whether sealing frame (7) of pop-up roof (1) makes uniform contact in rear area of vehicle roof (3) | ||
| Adjust | |||
| 4 | Open the pop-up roof (1) | AR77.70-S-0001-01E | |
| 5 | Adjust pop-up roof (1) in relation to vehicle roof | AR77.70-S-0003-01E | |
| (3) with lateral axis (Z) | *BA77.70-Z-1002-01KOB | ||
| *BA77.70-Z-1003-01KOB | |||
| 6 | Adjust pop-up roof (1) in relation to roof spoiler (2) with longitudinal axis (X) | AR77.70-S-0001-04E | |
| *BA77.70-Z-1002-01KOB | |||
| Fig 2 | |||
| 7 | Adjust transition (a) between pop-up roof (1) and roof spoiler (2) | AR77.70-S-0002-01E | |
| *BA77.70-Z-1001-01KOB | |||
| *BA77.70-Z-1004-01KOB | |||
| 8 | Adjust height of pop-up roof (1) in relation to vehicle roof (3) | AR77.70-S-0002-02E | |
| 9 | Adjust gas-filled struts on pop-up roof (1) | AR77.70-S-0001-03E | |
| *BA77.70-Z-1005-01KOB |
GAP DIMENSION
| Number | Designation | Model 447 | |
|---|---|---|---|
| BE77.00-Z-1001-01KOE | Gap between roof spoiler and ASD | mm | 11 (±1) |
MECHANICAL POP-UP ROOF
| Number | Designation | Model 447.7/8 with code ZK9 (Lifting roof hatch) | |
|---|---|---|---|
| BA77.70-Z-1001-01KOB | Bolt, locking bottom section to roof cutout for pop-up roof | Nm | 10 |
MECHANICAL POP-UP ROOF
| Number | Designation | Model 447.7/8 with code ZK9 (Lifting roof hatch) | |
|---|---|---|---|
| BA77.70-Z-1002-01KOB | Bolt, rear support clamp to vehicle roof | Nm | 8 |
MECHANICAL POP-UP ROOF
| Number | Designation | Model 447.7/8 with code ZK9 (Lifting roof hatch) | |
|---|---|---|---|
| BA77.70-Z-1003-01KOB | Nut, rear support clamp to pop-up roof | Nm | 10 |
MECHANICAL POP-UP ROOF
| Number | Designation | Model 447.7/8 with code ZK9 (Lifting roof hatch) | |
|---|---|---|---|
| BA77.70-Z-1004-01KOB | Nut, lock top section to pop-up roof | Nm | 10 |
MECHANICAL POP-UP ROOF
| Number | Designation | Model 447.7/8 with code ZK9 (Lifting roof hatch) | |
|---|---|---|---|
| BA77.70-Z-1005-01KOB | Pneumatic spring ball stud bracket to vehicle roof | Nm | 18 |
