Adjust Manual Pop-Up Roof In Lateral Axis - AR77.70-S-0003-01E

Model 447.7/8

With Code ZK9 (Lifting roof hatch)

MODIFICATION NOTES

02.12.2014	Screw/bolt, rear support clamp to vehicle roof	BA77.70-Z-1002-01KOB
02.12.2014	Nut, rear support clamp to pop-up roof	BA77.70-Z-1003-01KOB
23.03.2017	Bolt, rear support clamp to vehicle roof	BA77.70-Z-1002-01KOB

MECHANICAL POP-UP ROOF

Number	Designation		Model 447.7/8 with code ZK9 (Lifting roof hatch)
BA77.70-Z-1002-01KOB	Bolt, rear support clamp to vehicle roof	Nm	8

MECHANICAL POP-UP ROOF

Number	Designation		Model 447.7/8 with code ZK9 (Lifting roof hatch)
BA77.70-Z-1003-01KOB	Nut, rear support clamp to pop-up roof	Nm	10

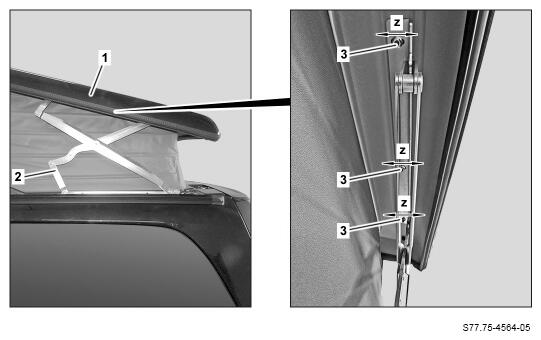

Loosen nuts (3) on both sides.
Align rear edge of pop-up roof (1) with lateral axis (z) of vehicle roof.
For this purpose adjust the two upper mounts on set-up brackets (2) in relation to the lateral axis (z) of the vehicle roof. The upper mounts must in the same position in relation to one another.
Tighten nuts (3) on both sides .
Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

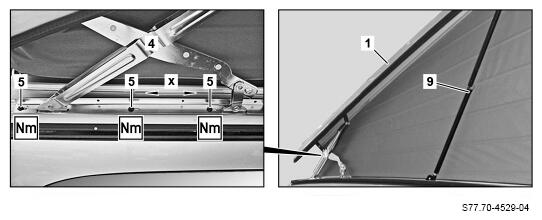

Loosen bolts (5).
Align rear edge of pop-up roof (1) with lateral axis of vehicle roof.
For this purpose move both lower brackets on rear pop-up struts (4) opposite to one another in the direction of the roof spoiler longitudinal axis (x) until the front edge of the pop-up roof (1) is centered in relation to the lateral axis (z) of the vehicle roof. The alignment with the longitudinal axis (x) of the roof spoiler should then coincide.

Courtesy of MERCEDES-BENZ USA
Tighten bolts (5) .
Shown on right side of vehicle

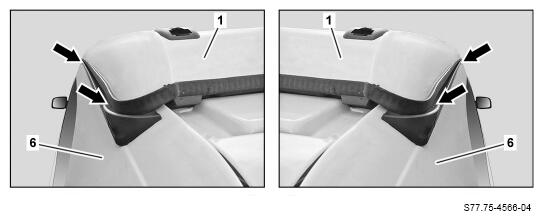

Close pop-up roof (1).
Align pop-up roof (1) with lateral axis of vehicle roof (6).
For this purpose check centered alignment and gap width.

The gap width should be equal at front and rear on both sides of the vehicle (arrows).

Courtesy of MERCEDES-BENZ USA
