Adjust Transition Of Pop-Up Roof To Roof Spoiler - AR77.70-S-0002-01E
Model 447.7/8
With Code ZK9 (Lifting roof hatch)
MECHANICAL POP-UP ROOF
| Number | Designation | Model 447.7/8 with code ZK9 (Lifting roof hatch) | |
|---|---|---|---|
| BA77.70-Z-1001-01KOB | Bolt, locking bottom section to roof cutout for pop-up roof | Nm | 10 |
MECHANICAL POP-UP ROOF
| Number | Designation | Model 447.7/8 with code ZK9 (Lifting roof hatch) | |
|---|---|---|---|
| BA77.70-Z-1004-01KOB | Nut, lock top section to pop-up roof | Nm | 10 |

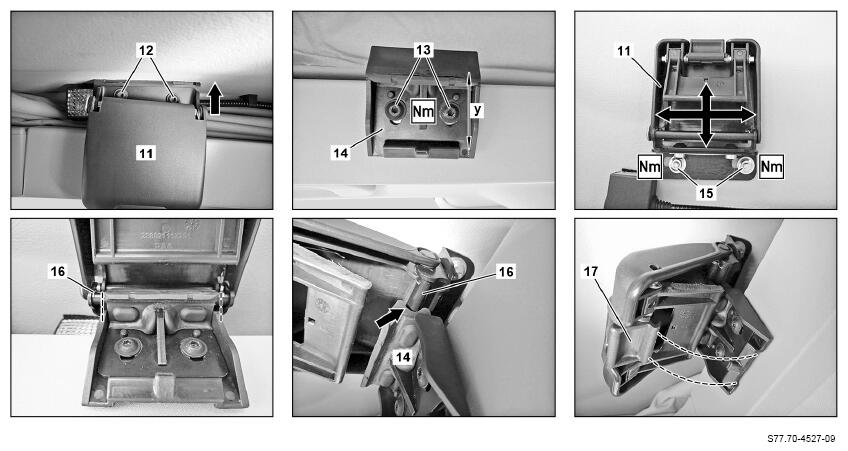

- Open pop-up roof.
- Loosen bolts (12).
- Push handle (11) upward to limit stop.
- Tighten bolts (12).
- Loosen bolts (13).
- Move support (14) in adjustment device for lock bottom section (y) up against stop.
- Tighten bolts (13).
- Detach caps on nuts (15) and loosen nuts (15).
- Move handle (11) in lateral and longitudinal direction.
The bolt (16) should engage in the center of the support (14) and the hook (17) should engage in the center of the recess on the support (14).
Otherwise the function of the locks is not ensured.
- Tighten nuts (15) and install caps
.
- Loosen bolts (13).
- Press support (14) downward in adjustment direction for lock bottom section (y).
- Tighten bolts (13)
- Close pop-up roof.
- Check locks.
The pop-up roof should close with perceptible force, if necessary repeat adjustment.
