Adjust Manual Pop-Up Roof In Longitudinal Axis - AR77.70-S-0001-04E
Model 447.7/8
With Code ZK9 (Lifting roof hatch)
MODIFICATION NOTES
| 02.12.2014 | Screw/bolt, rear support clamp to vehicle roof | BA77.70-Z-1002-01KOB | |
| 23.03.2017 | Bolt, rear support clamp to vehicle roof | BA77.70-Z-1002-01KOB |
MECHANICAL POP-UP ROOF
| Number | Designation | Model 447.7/8 with code ZK9 (Lifting roof hatch) | |
|---|---|---|---|
| BA77.70-Z-1002-01KOB | Bolt, rear support clamp to vehicle roof | Nm | 8 |
- Open pop-up roof (1).
- Loosen bolts (5) at both rear set-up brackets (4).
- Adjust rear set-up brackets (4) in direction of roof spoiler in longitudinal axis (x) on vehicle roof.
- Tighten bolts (5)
.
- Close pop-up roof (1).

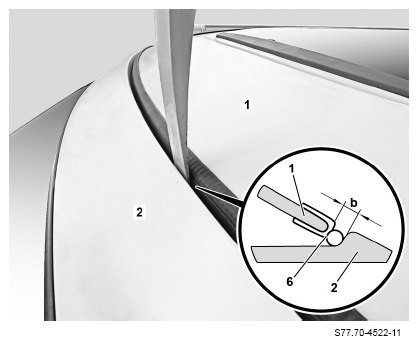

Shown on right side of vehicle
- Check distance dimension (b).
The distance (b) must be approx. 10 to 12 mm.
- Check whether sealing lip (6) is seated correctly on pop-up roof (1) with
long wedge.
The sealing lip (6) should make contact with the rear edge of the offset on the roof spoiler (2) as shown. If the distance to the sealing lip (6) is not sufficient, adjust pop-up roof (1) again.
Otherwise the sealing lip (6) can be damaged when closing the pop-up roof (1).
Otherwise wind noises can occur while driving.
