Adjust Rear Height Of Pop-Up Roof - AR77.70-S-0002-02E

Model 447.7/8

With Code ZK9 (Lifting roof hatch)

Courtesy of MERCEDES-BENZ USA

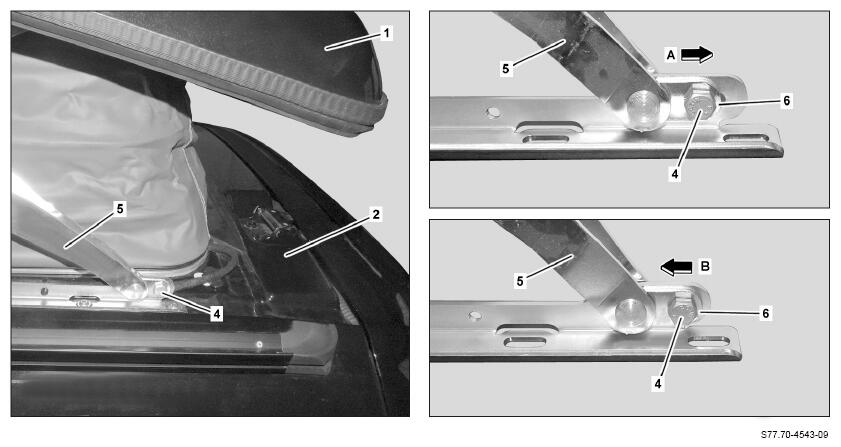

Shown on left side of vehicle

1. Open pop-up roof (1).
2. Loosen bolt (4) at corresponding set-up bracket (5).
3. Move sliding rail (6) in corresponding direction.

   Move sliding rail (6) in direction of arrow "A": Pop-up roof (1) is lowered.

   Move sliding rail (6) in direction of arrow "B": Pop-up roof (1) is raised.

4. Tighten bolt (4) on corresponding set-up bracket (5).
5. Close pop-up roof (1).
6. Check adjustment of pop-up roof (1).

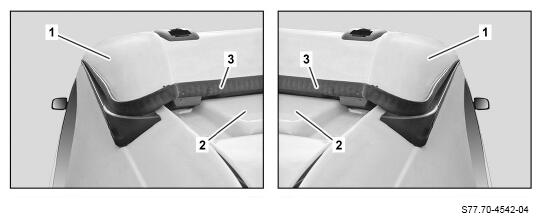

   The sealing frame (3) on the pop-up roof (1) must be flush with the vehicle roof (2) and should make contact with slight pressure.
