Adjust Pneumatic Springs For Pop-Up Roof - AR77.70-S-0001-03E
Model 447.7/8
With Code ZK9 (Lifting roof hatch)
MECHANICAL POP-UP ROOF
| Number | Designation | Model 447.7/8 with code ZK9 (Lifting roof hatch) | |
|---|---|---|---|
| BA77.70-Z-1005-01KOB | Pneumatic spring ball stud bracket to vehicle roof | Nm | 18 |
- Open pop-up roof.
- Detach base plate (8) on right side of vehicle.
- Move base plate (8) until tab lock (10) overlaps on gas-filled strut (9) approx. one-third as shown.
- Detach base plate (8) on right side of vehicle
.
- Detach base plate (8) on left side of vehicle.
- Move base plate (8) until base plate (8) on the left side of vehicle has the same position as on the right side of vehicle.
- Fasten base plate (8) on left side of vehicle
- Close pop-up roof.

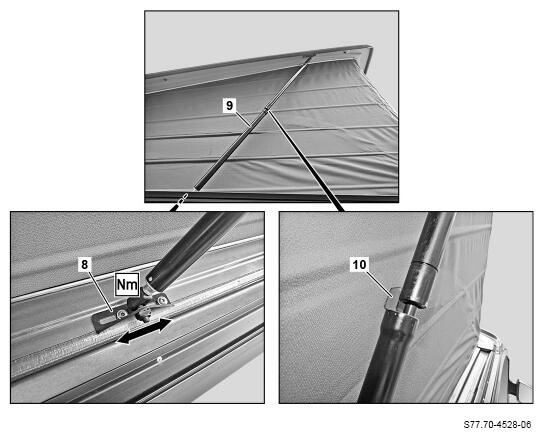

Shown on right side of vehicle
